SOM-ET6ULL

Item Name: SOM-ET6ULL-512M4G

CPU: NXP i.MX6ULL 800MHZ,

Memory: 512MB DDR3L,

Storage: 4GB EMMC

OS:  Provide Uboot And kernle Source Code, Design Reference





$62.00

Quantity Discount (%) Price
1 - 49 $62.00
50 - 99 4.84 % $59.00
100 - 499 9.68 % $56.00
500+ 20.97 % $49.00
x
Categories: , SKU: SOM-ET6ULL
SOM-ET6ULL

Description

Description



Specification

Feature

Details

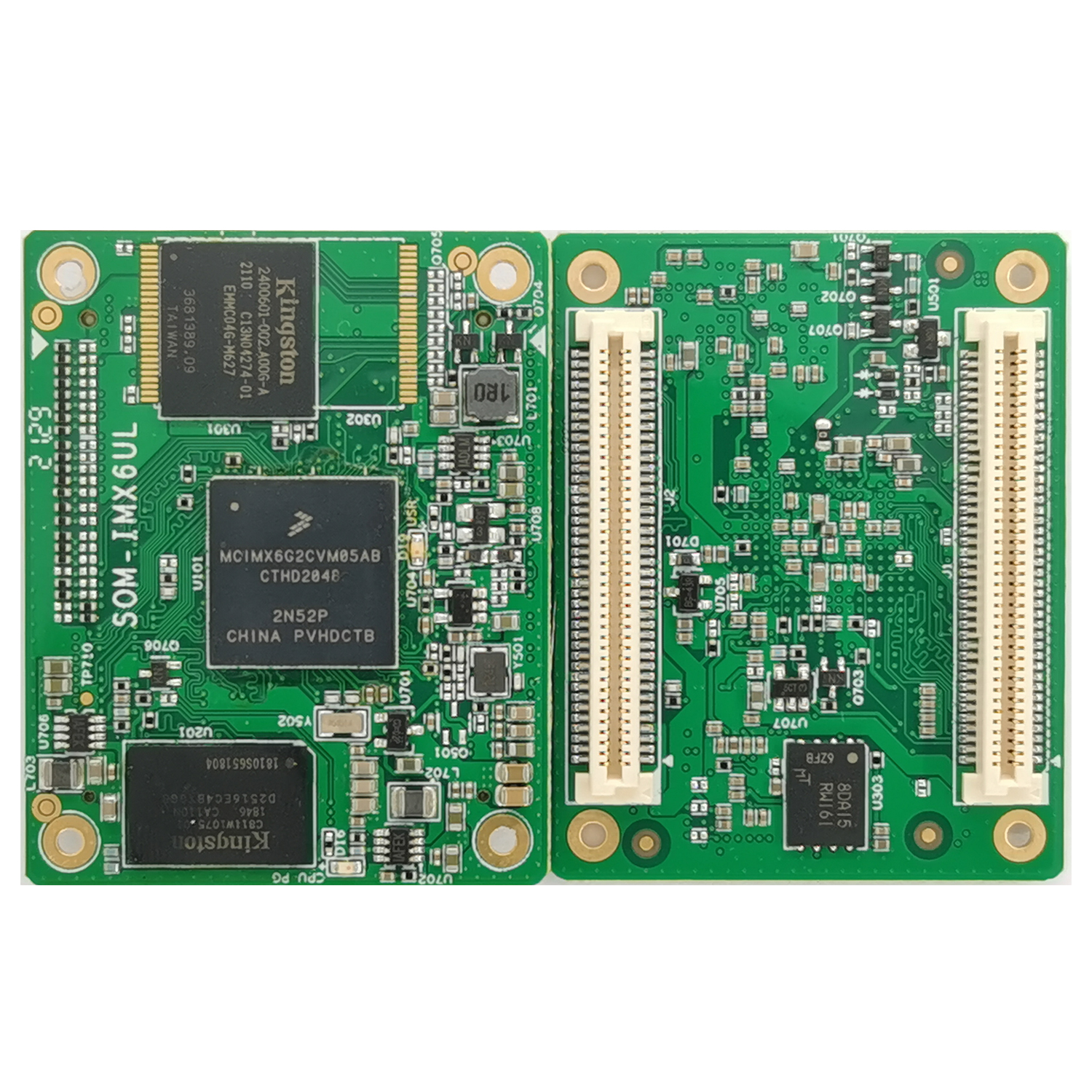

SOM-i.MX6ULL







Arm Cortex-A7 MPCore platform

Single ARM Cortex-A7 MPCore, including:

• 32 KB L1 Instruction Cache

• 32 KB L1 Data Cache

• Media Processing Engine (MPE) Co-processor

• General Interrupt Controller(GIC)

• Global Timer

• Snoop Control Unit

• Target frequency of 528MHz

Audio

• S/PDIF Input and Output

• SAI modules supporting I2S,AC97,TDM

On-chip memory

• Boot ROM (96KB)

• Secure/non-secure RAM (32KB)

Memory and storage



DDR SDRAM

• 512MB DDR3 SDRAM (16-bit bus width)

• Maximum 1GB support

• 800MHz maximum DDR clock



eMMC



• 4GB eMMC flash memory default

• 8-bits MMC mode

• 4~32GB storage option

• Nand or eMMC + SPI option

• 256MB ~ 4GB storage option

Expandable flash (MicroSD)

• Meets SD/SDIO 3.0 standard Runs at 4-bits

• Supports system boot from SD card

• Supports high-capacity SDXC card up to 2TB

Network & Wireless

Ethernet

• 10/100 Mbps Ethernet Controller

• Up to 2 MAC (6G2, 6G3 Only)

Hardware Interface





I/O connectivity

• 5x UART

• 2x ENET

• 1x SDIO

• 1x JTAG

• 10x GPIOs

• 10x SNVS_TAMPER

• 2x OTG

Display Interfaces

• 24bits RGB LCD

Camera

• 8Bit CSI
