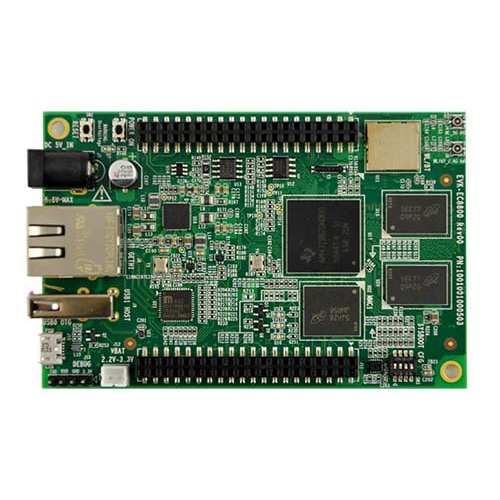

SBC-EC8800

Original price was: $169.00.Current price is: $99.00.

Feature:

  • CPU: AM437X processor with an ARM Cortex-A9 core@1GHZ
  • Onboard MT41K256M16HA-125:E 1GB DDR3L device
  • 4GB EMMC, 32MB QSPI and 32KB EEPROM onboard memory
  • Rich I/O: I2C, UART, RGMII, SPI, MCASP, ADC, PWM, CAN and RS485 interfaces

Github:

  • https://github.com/EMTOP-TECH/SBC-EC8800

Datasheet

198 in stock

x
Category: SKU: SBC-EC8800 Tags:

Description

The SBC-EC8800 is a single board computer designed around TI’s high performance AM437X processor with an ARM Cortex-A9 core. This 1GHz processor features 3D graphics capabilities for enhanced user interface and PRU-ICSS software for industrial ethernet protocols and position feedback control. Despite the compact body size, the SBC-EC8800 provides plenty of peripheral interface and connectivity options, with gigabit Ethernet, USB 2.0 (host, OTG), LCD, camera, MicroSD card, Wi-Fi, Bluetooth (optional) and DEBUG. The on-board 80 pin (40 x 2) GPIO conenctor extends the signal interface possibilities even further to I2C, UART, RGMII, SPI, MCASP, ADC, PWM, CAN and RS485 interfaces.

  • LCD interface supports up to 24bit LCD display (WXGA)
  • Onboard MT41K256M16HA-125:E 1GB DDR3L device
  • 4GB EMMC, 32MB QSPI and 32KB EEPROM onboard memory
  • Supports Embest 4.3inch and 7inch LCD
  • Supports 12bit camera
  • MicroSD card for storage extension
  • Main board size is 100mm x 65mm

Applications

Embedded Design & Development, Industrial, Automation & Process Control, Medical
