Sale!

EVK-ET-AM62,TI AM6254 EVK,2GB DDR4,8GB EMMC,4G/5G,2xLVDS,Mikroe Sensor Support

Original price was: $169.00.Current price is: $149.00.

Default :

  • EVK-ET-AM62-D2M8-C

WIKI:

  • https://docs.emtop-tech.com/home/ti-series/ti-am6254-series/som-et-62x

HW Features:

  • SoC: TI AM6254
    • 4x ARM Cortex-A53@1.4GHz
    • 1XARM Cortec-M4F up to 400MHz
  • Memory: Support DDR4  1~4  GB
  • Flash:     Support EMMC 8~64 GB
  • Peripheral Interface:1x HDMI, 2x 4-lane lvds,1x 16bit RGB,1xmipi csi,1xaudio,2xGBE Ethernet,1×10/100 Ethernet,Support 4G/5G/WIFI,BT/,7xUSB2.0,1xRS232,2xRS458,3xCANFD,1xi2c,1xpwm,3xdin,3xdo,1xGPMC,1xmikroe header,1xrtc,4xled,5xbutton

SW Features:

  • Debian13 os: uboot/kernel/filesystem/ Source Code
  • Yocto Linux 6.1 os: uboot/kernel/filesystem/ Source Code



Product Documents

Quantity Discount (%) Price
1 - 4 $149.00
5 - 9 2.01 % $146.00
10 - 29 4.03 % $143.00
30+ 6.71 % $139.00
x
Categories: , SKU: EVK-ET-AM62

Description

EVK-ET-AM62

1, Description

This section briefly describes the performance parameters and target applications of the EVK-ET-AM62 single-board computer based on the TI AM623x/AM625x series CPU.

The SOM-ET-AM62 is a core board launched by Shenzhen EMTOP Technology Co., Ltd., based on the TI AM623x/AM625x series embedded CPU. It adopts a core board + baseboard design, with an ultra-small size of 50x40mm, complete interface design, and rich peripheral interfaces, facilitating users to directly integrate project development.

  • The TI AM623x/AM625x is a collection of high-performance, ultra-efficient processors, which is the latest high-performance, low-power processor collection launched by TI. It adopts up to 4x ARM Cortex-A 53 cores, with a maximum operating speed of 1.4G Hz, and integrates a Cortex M4F MCU with a frequency of up to 400MHz and an R5F real-time processing unit. The TI AM623x/ AM625x application processors include an integrated power management module, reducing the complexity of external power supplies and simplifying power-up sequencing, and a graphics processor (AM625x) compliant with OpenGL ES3.1 and Vulkan 1.2, along with a PRU subsystem. At the same time, the AM62XX integrates a rich set of peripheral resources, depending on the positioning of the CPU sub-model, with up to 1 *LCD controller, 1* LVDS, 2 *RGMII, 2*OTG interfaces, 3* CAN -FD, 1 *CS interface, 3*SPI, 3*SDIO, 9*UART, 6*I2C, 5*SPI, 3*MCASP, 3*PWM, and 2x PRU subsystems.

The EVK-ET-AM62 is a high-cost performance, easy-to-use, and stable development kit designed by Shenzhen EMTOP Technology Co., Ltd. based on the interface characteristics and function definitions of the TI AM625x and AM623x series CPUs. The target application scenarios are as follows:

  • IoT Gateway
  • Human-Machine Interface
  • Home Energy Management System
  • Smart Energy Information Concentrator
  • Smart Industrial Control System
  • Electronic POS Equipment
  • Medical Equipment
  • Printers and 2D Scanners



2, Features





2.1 SOM-ET-AM62



Feature Details
SOM-ET-AM62






CPU

Up to 4x ARM Cortex-A 53, including:

• Up to 1400MHz

• 32 KB L1 Instruction Cache

• 32 KB L1 Data Cache

• Single-core ARM Cortec-M4F up to 400MHz

• Display Subsystem

• 3D Graphics Processing Unit

• One Camera Serial Interface

• DDR Subsystem

Memory and storage


DDR SDRAM

• 2GB DDR 4 SDRAM (16-bit bus width)

• Maximum 4 GB support

• 16 00MHz maximum DDR clock



eMMC



• 8 GB eMMC flash memory Default

• 8-bits MMC mode

• 4~ 128 GB storage option

Connectivity
BTB • 4x 60Pin BTB connector



2.2 EVK-ET-AM62

Specification

Item Description
SoM Units SoC:

  • TI AM6254 Default, TIAM6232 Option
  • 4x ARM Cortex-A53@1.4GHz
  • 1XARM Cortec-M4F up to 400MHz
  • 3D Graphics Processing Unit

Memory:

  • 1~4GB DDR4 2GB Default

Storage:

  • 4-32GB EMMC 8GB Default
  • 1x TF Card
Display 1x HDMI

2x 4-lane lvds (Dual channel)

  • -Test0: 2x 10.4 Inch BOE 800×600
  • -Test1: 1×10.1 Inch BOE 1920×1200

1x 16Bit RGB Parallel Display (Option)

Camera 1x MIPI CSI-2

  • – 2lane connector
  • – 4lane connector
Audio 3.5mm Connector

  • – 1x Stereo Out
  • – 1x Audio In
Network Ethernet:

  • 2x 10/100/1000 Gigabit Ethernet (RJ45)
  • 1×10/100 Ethernet (RJ45)

1x M.2 E Key slot for WIFI/BT

  • -1ZM M.2 Module

M.2 Key B slot for 4G and 5G

  • -4G modem: Quectel EM05;
  • -5G modem: Quectel RM500Q;
  •  -SIM slot
USB 2x USB2.0 host

  • -1x USB2.0 host/device (Type C)
  • -1x USB2.0 host connect Hub
    • – 4x USB2.0 host (Type A)
    • – 1x USB2.0 host (PIN Header)
    • – 1x USB2.0 host (M.2 B key,4G/5G)
I/O 1x RS232

2x RS485

3x CANFD

1x I2C(Touch)

1x PWM(Backlight)

3x DIN

3x DO

Expansion 1xGPMC

2x 8Pins Header Compatible Mikroe Sensor Header

System 1x RTC (Battery)

4x LEDs

5x Button

Electrical Mechanical Power Supply: 12V/2A typical

Dimensions:189.9mm*125mm

Weight:210g

Environmental



Operation Temperature

  • Commercial: 0° to 70° C
  • Industrial: -40° to 85° C

Storage Temperature

  • -40° to 85° C

Relative Humidity

  • 10% to 90% (operation)
  • 05% to 95% (storage)
Reliability MTTF> 200,000 hours

Warranty of 5 years







3, Order Information

Part Number CPU DDR4 EMMC WIFI/BT Temperature Price 1k 100PCS 30PCS MOQ
SOM-ET-AM62-D2M80-C AM6254 2GB 8GB No 0°C-70° USD43 USD49 USD56 1
SOM-ET-AM62-D4M32-C AM6254 4GB 32GB No 0°C-70° USD49 USD56 USD62 100
SOM-ET-AM62-D2M80-I AM6254 2GB 8GB No -45°C-85° USD49 USD56 USD62 100
EVK-ET-AM62-D2M8-C AM6254 2GB 8GB No 0°C-70° USD129 USD136 USD139 1



4,Packing List

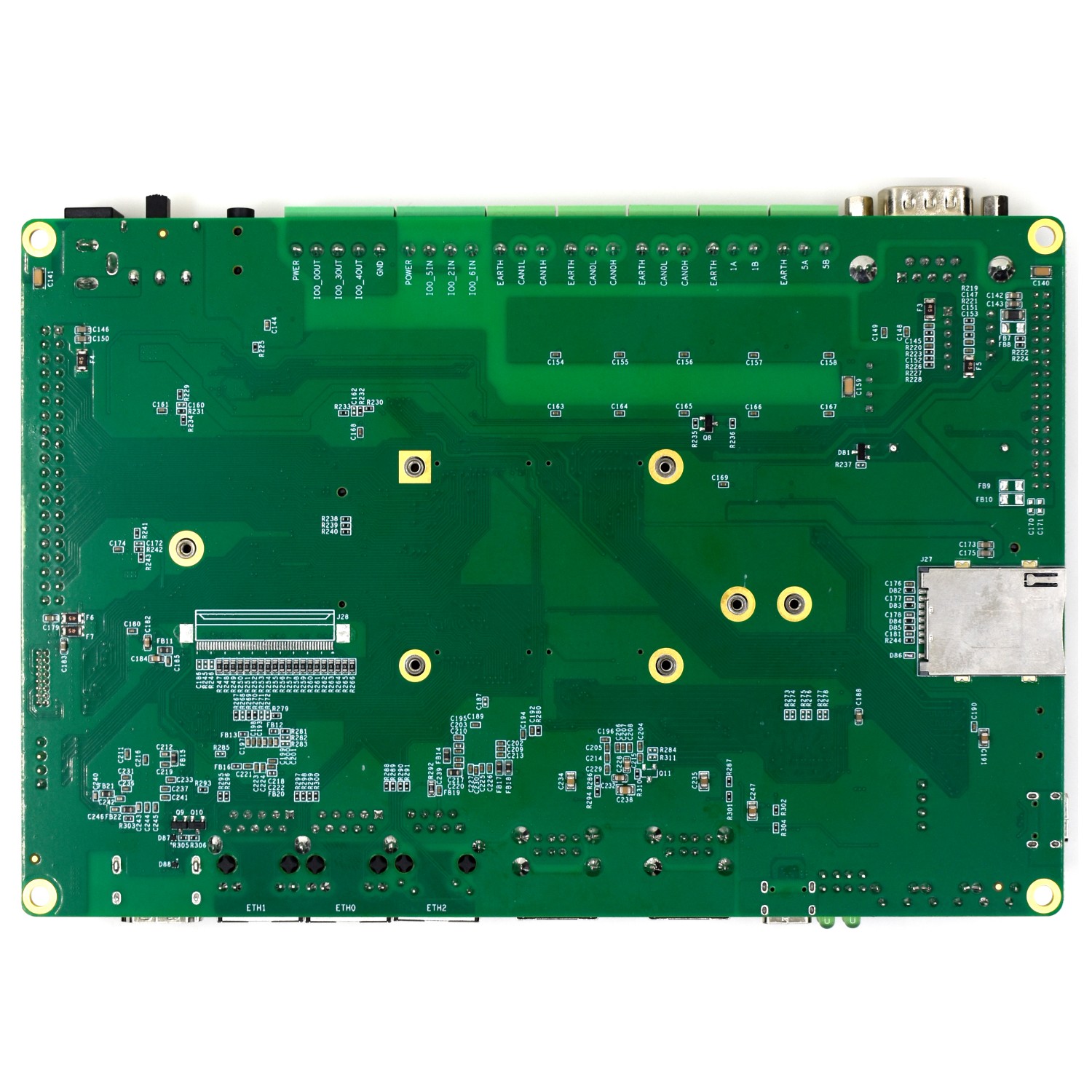

  • 1xEVK-ET-62X Carrier Board and SoM Board
  • 1x12V 2A Power Supply
  • 1xUSB C for debug
