MARSBOARD

Original price was: $169.00.Current price is: $149.00.

Features:

  • IMX 6Dual integrates ARM Cortex™-A9 core
  • 4GByte eMMC
  • 4*256MB DDR3 SDRAM
  • Provide PCB&Schamatic Design Files for verified Customer

Github:

  • https://github.com/EMTOP-TECH/MarsBoard



Product Documents

45 in stock

Quantity Discount (%) Price
1 - 29 $149.00
30+ 13.42 % $129.00
x
Category: SKU: MARSBOAD

Description

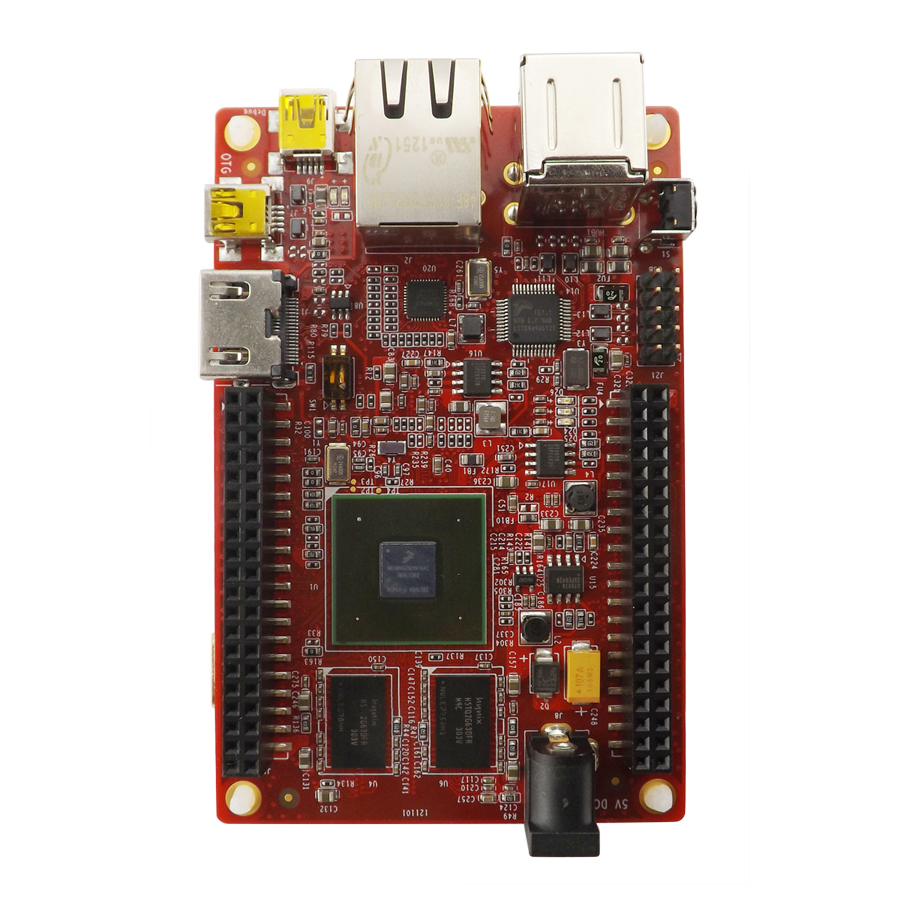

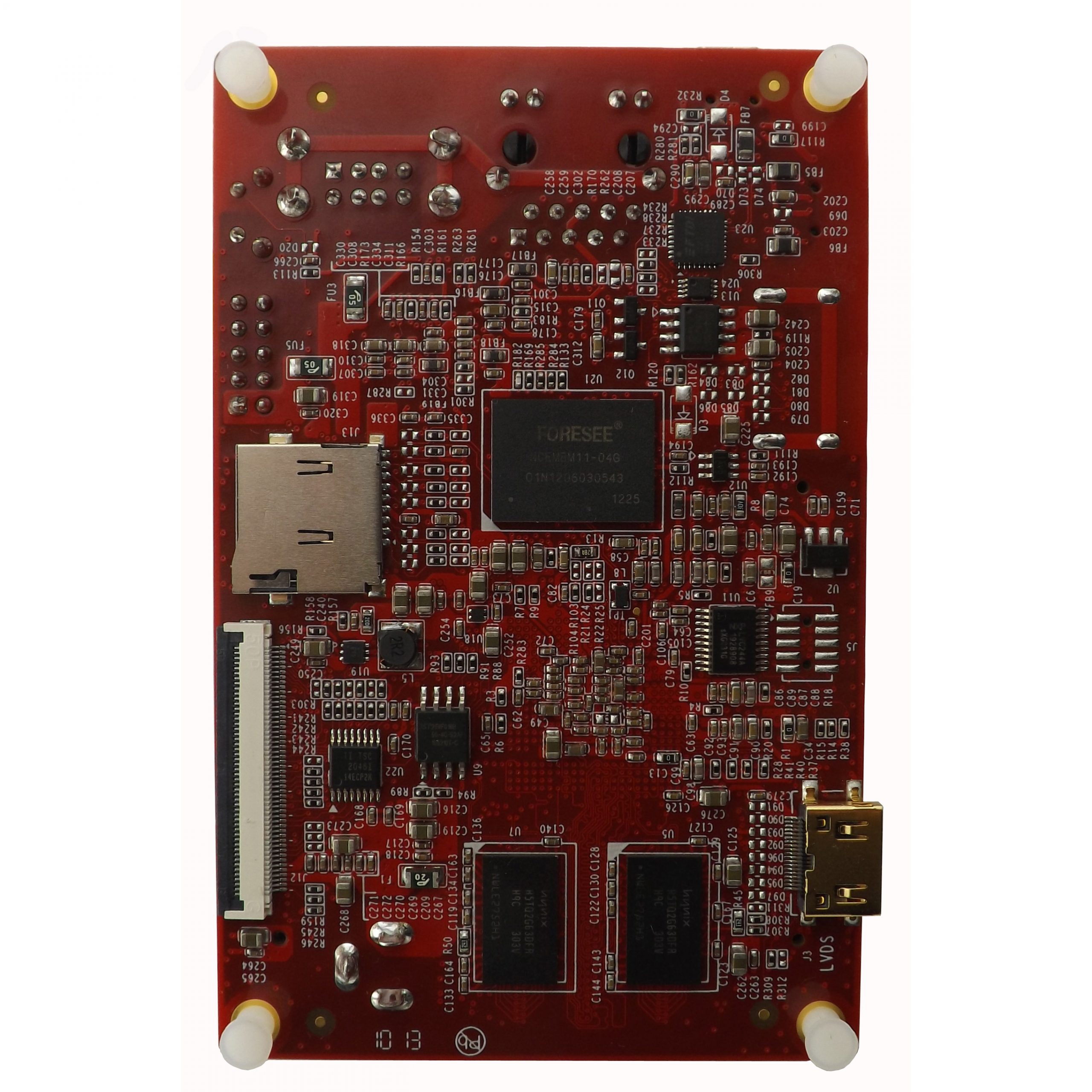

MarS Board is an evaluation board designed by Embest Technology and based on Freescale’s i.MX 6Dual processor. i.MX 6Dual integrates ARM Cortex™-A9 core of up to 1GHz, 2D and 3D graphics processors and 3D 1080p video processor. MarS Board is featured with abundant interfaces such as HDMI, LVDS, mini USB OTG, mini USB debug, RJ45, USB host, TF card and LCD display to help developers from different fields including netbooks, all-in-one PCs, high-end mobile Internet devices, handhold computers, portable media players, game consoles and portable navigation devices.

Product Features

Product Parameters:

  • Dimensions: 65mm x 102mm
  • Operation Temperature: 0 ~70℃
  • Operating Humidity: 20% ~ 90% (Non-condensing)
  • Power Supply: 5V

Processor:

  • MX 6Dual integrates ARM Cortex™-A9 core
  • 32 KByte L1 Instruction Cache
  • 32 KByte L1 Data Cache
  • Private Timer and Watchdog
  • Cortex-A9 NEON MPE (Media Processing Engine) Coprocessor
  • 2D/3DGraphics Processors

On-Board Memories:

  • 4GByte eMMC
  • 4*256MB DDR3 SDRAM

On-Board Interfaces and Buttons:

  • HDMI Interface
  • LVDS Interface
  • LCD Interface
  • Two 480Mbps High-Speed USB2.0 Hub Interface
  • Two 480Mbps High-Speed USB2.0 Header Interface
  • 480Mbps High-Speed USB2.0 OTG Interface
  • COM-USB Debug (com2) Interface
  • TF Card Interface
  • 10/100M/1Gbps RJ45 Network Interface
  • Boot Mode Interface
  • Reset Button

Signals of On-Board Interfaces:

  • An AUDMUX (Digital Audio Multiplexer) Signal
  • Two CAN Signals
  • ECSPI2 (Enhanced Configurable SPI) Signal
  • Two I2CSignals
  • camera/ Parallelsignal, up to 16 bit
  • KPP (Keypad Port) Signal
  • PWM (Pulse Width Modulation) Signal
  • GPMI (General Purpose Memory Interface) Signal
  • SPDIF (Sony/Philips Digtal Interface) Signal
  • Four UART Signals
  • USDHC1 (Ultra Secured Digital Host Controller) Signal
  • ESAI (Enhanced Serial Audio Interface) Signal
