SOM-AM5728 CPU Module

$249.00

Features:

  • CPU:Sitara™ ARM® Cortex®-A15, ARM® Cortex®-M4 AM572x
  • 2GB 16bit DDR3/3L SDRAMs
  • 8GB eMMC
  • 32MB QSPI flash

Github:

  • https://github.com/anonymouslojz/EM-TF-SOM-AM5728



Product Documents

Quantity Discount (%) Price
1 - 4 $249.00
5 - 29 4.02 % $239.00
30+ 20.08 % $199.00
x
Compare

Description

Introduction:


SOM-AM572x is a powerful system-on-module based on TI’s Sitara AM5728 high performance processor. The ARM allows developers to keep control functions separate from other algorithms programmed on the DSPs and coprocessors. It is built to meet the intense processing needs of 3 major types of modern embedded applications: HMI, Industry 4.0(robots and smart factories) and multimedia.

Almost all the important signals of this tiny embedded control module can be brought out by a carrier board (part number EM-TF-SOM-AM5728) via four 0.5mm pitch 2*40-pin board-to-board female expansion connectors.

This solution can be taken directly to production  accelerate  development of your products.

SOM-AM5728 CPU Module



SOM-AM5728 CPU Module

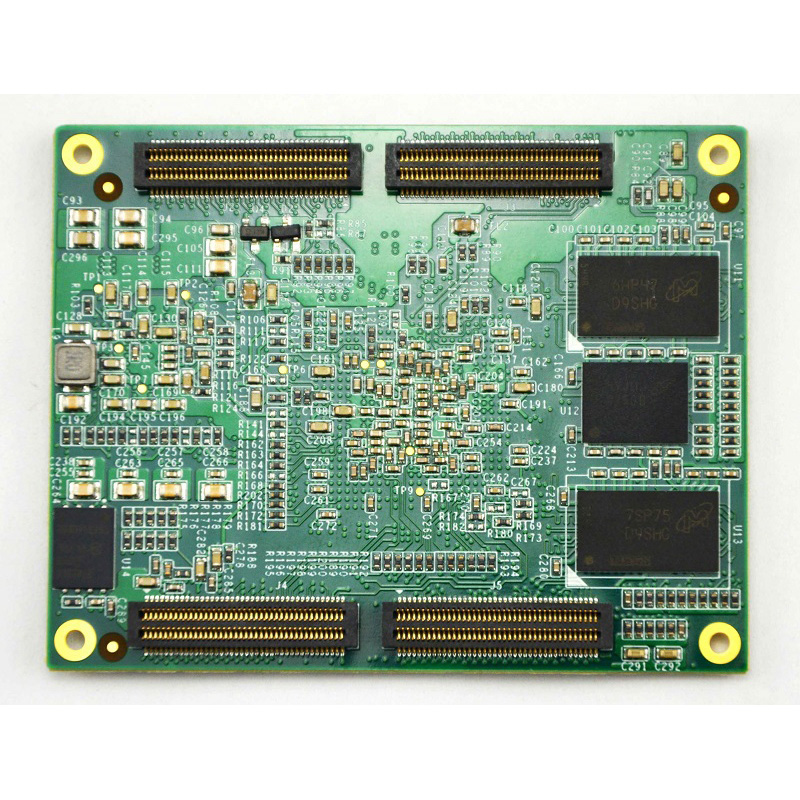

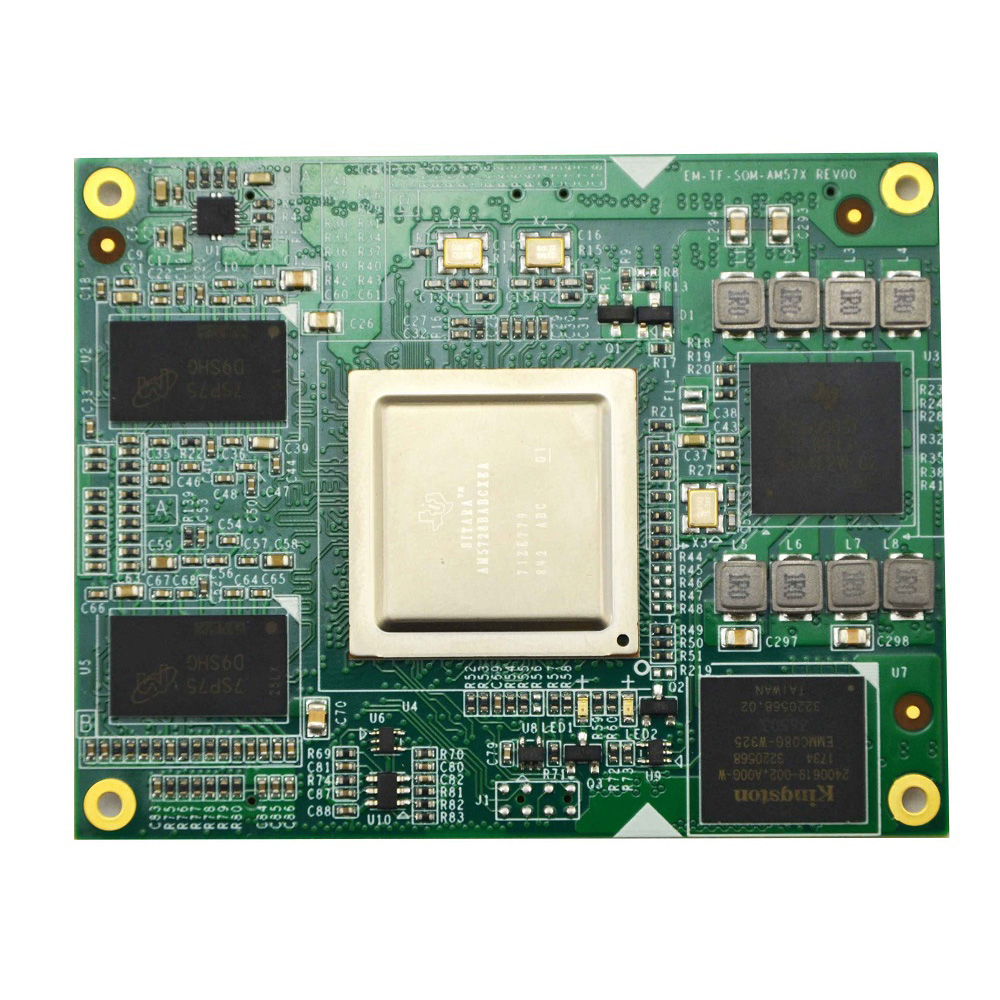

SOM-AM5728 CPU Module Front & Backside



Hardward Features


Processor:

AM572x Sitara™ processors are Arm applications processors built to meet the intense processing needs of modern embedded products.

AM572x devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set. Cryptographic acceleration is available in every AM572x device.

Features:

  • Sitara™ ARM® Cortex®-A15, ARM® Cortex®-M4 AM572x (support AM5718)
  • Dual core 1.5 GHz
  • Dual Arm® Cortex®-A15 microprocessor subsystem
  • Up to 2 C66x floating-point VLIW DSP: fully object-code compatible with C67x and C64x+, up to thirty-two 16 × 16-bit fixed-point multiplies per cycle
  • Up to 2.5MB of on-chip L3 RAM
  • Two DDR3/DDR3L memory interface (EMIF) modules: supports up to DDR3-1066, up to 2GB supported per EMIF
  • 2x dual Arm® Cortex®-M4 co-processors (IPU1 and IPU2)
  • Up to four Embedded Vision Engines (EVEs)
  • IVA-HD subsystem: 4K @ 15fps encode and decode support for H.264 CODEC, other CODECs are up to 1080p60

AM572x datasheet



Memory:

  • 2GB 16bit DDR3/3L SDRAMs
  • 8GB eMMC
  • 32MB QSPI flash

IOs for Serial Communication:

  •  UART * 6
  •  SPI * 2
  •  I2C * 3
  •  CAN * 2

IOs for High Speed Communication

  • USB 2.0 * 1, USB 3.0 * 1,4 port-hub
  • PCIE * 1
  • mSATA SSD * 1
  • GPMC * 1

IOs for Multimedia

  • 24-bit LCD video input * 1,8-bit video input * 1
  • HDMI 1.4a interface * 1,24-bit LCD video output * 1
  • McASP * 2

Other Peripherals

  • JTAG interface
  • GPIO * 20
  • MMC interface * 2
  • 10M/100M/1000M RGMII * 2
  • LED * 2
  • PWM * 4



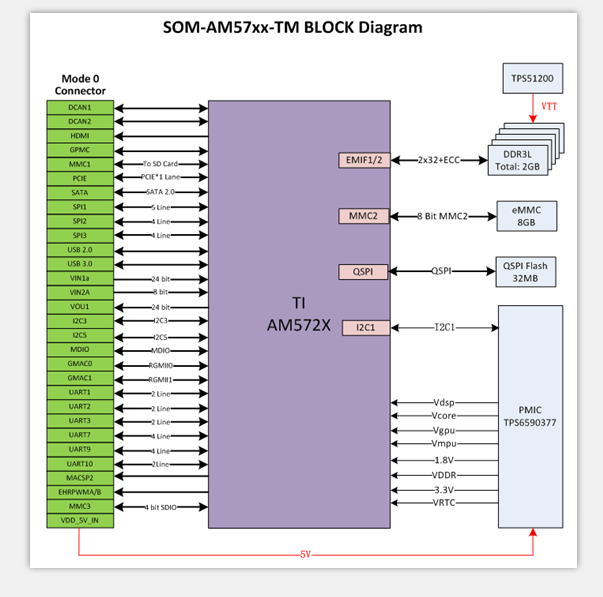

SOM-AM5728

Electrical Features:






  • Operating Temperature: commecial:0~70°C;   industrial:-40°C~85°C
  • Input Voltage:DC 5V input, nn board power management
  • Operating humidity:20% ~ 90% (Non-condensing)
  • Product dimension:70.0 mm x 55.0 mm
  • PCB layer:12

Software Support:


Software Feature list:

  • U-Boot version: 2017.01
  • Kernel version: 4.9.28
  • Evaluaton image Arago
  • Qt 5.5.1 Library
  • MatrixBox desktop demo
  • eMMC(default)or Micro SD boot
  • LCD /LVDS and HDMI display
  • Audio output & Micphone
  • HDMI audio output
  • 2 Gigabit Ethernet (RJ45)
  • 2 CAN port
  • 2 high-speed USB2.0 Host and 1 usb3.0 Host
  • 2RS485 port and 1 USB-UART debug port
  • External interfaces (I2CX. UART,SPI ,SATA,PCIE and GPIO)
  • RTC clock
  • WIFI(2.4G/5G)& Bluetooth BR/EDR/BLE
  • 12 bit digital camera
  • 4G



Applications:


  •  Industrial human machine interface (HMI)
  •  Industrial drives
  •  Factory automation
  • Building automation
  • Machine vision
  • Medical imaging
  • Test and measurement
  • Embedded computing
  • Avionics



The Carrier Board with SOM-AM5728




SOM-AM5728



SBC-AM5728 For SOM-AM5728
