SOM-PH8800 Industrial Grade

Original price was: $99.00.Current price is: $89.00.

Features:

  • CPU:TI Sitara ARM Cortex-A9 AM4378 Processor

  • 1GB DDR3 SDRAM

  • 4GB eMMC Flash

  • I/Os/Interfaces:I2C、SPI、CAN、UART、MMC、I2S、LCD、Camera、RGMII、GPIO、Power signal, etc.

  • Working Temperature: -45Degree-85Degree

Github:

  • https://github.com/EMTOP-TECH/SOM-PH8800



Product Documents

50 in stock

Quantity Discount (%) Price
1 - 9 $89.00
10+ 3.37 % $86.00
x
Category: SKU: SOM-PH8800

Description

SOM-AM437x-PM(Part NO: SOM-PH8800)

Overview:


The
CPU module integrates TI’s Sitara AM4378 processor and peripheral
memory, and can be connected to an expansion board through PH180
interface. SOM-PH437x is compatible with the whole family of AM437x
processors.

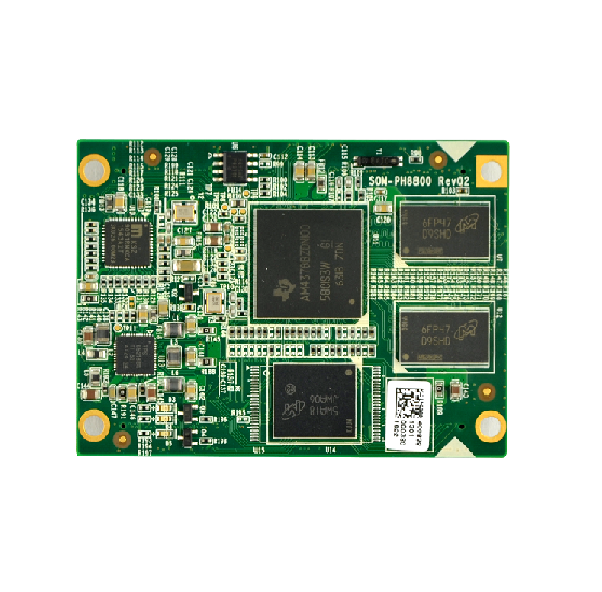

SOM-AM437x-PM

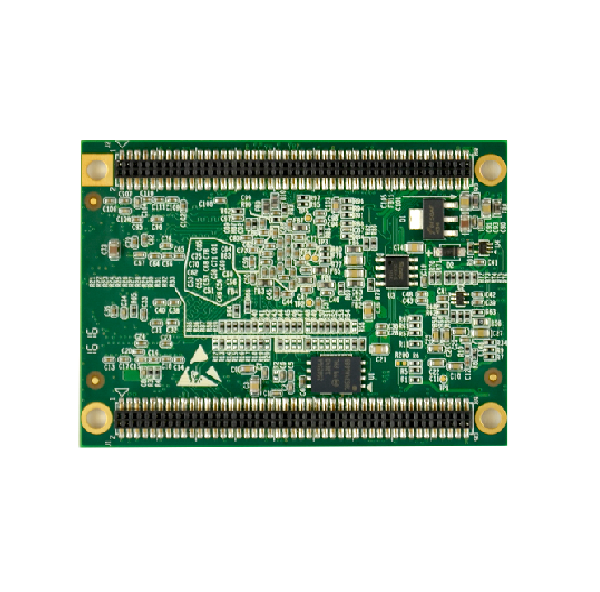

SOM-AM437x-PM

 System block diagram:

SOM-AM437x-PM

Hardware Features:


  Processor/Memory:

  • TI Sitara ARM Cortex-A9 AM4378 Processor

  • 1GB DDR3 SDRAM

  • 4GB eMMC Flash

  • 32KB EEPROM

  • 32MB QSPI Flash

  I/Os/Interfaces:

  • I2C、SPI、CAN、UART、MMC、I2S、LCD、Camera、RGMII、GPIO、Power signal, etc.

  Electrical Features:

  • Operating temperature:0~70°C(commercial)、-40~85°C(Industrial)

  • Input voltage:5V

  • Operating humidity:20% ~ 90%(no condensation)

  • Main board size:70 mm×50 mm

  • PCB specifications:8 layer design

Software Features:


OS

Item

Features

Description

Linux

Kernel

Version

4.1.6

Drivers

USB
OTG, USB Host, Gigabit Ethernet, MMC/SD/TF, eMMC   , EEPROM, CAN,
RS485, Audio, LCD Controller (supports 4.3- and 7-inch LCD),   RTC,
HDMI, Touch driver, Button, UART, LED, SPI,
WIFI   & Bluetooth

File   system

UBIFS

Default   root file system used by debian

Applications:


  • Portable Data Terminal

  • Industrial Control

  • Communication

  • Security & Protection System

  • Measuring Instruments

  • New Energy Vehicle Charging Station



Packing List




  • SOM-PH8800 Core Board X1

  • Desiccant X1

  • Antistatic Bag X1

  • Generic Safety Leaflet X1

  • Packing Box X1
