Description
1.Description

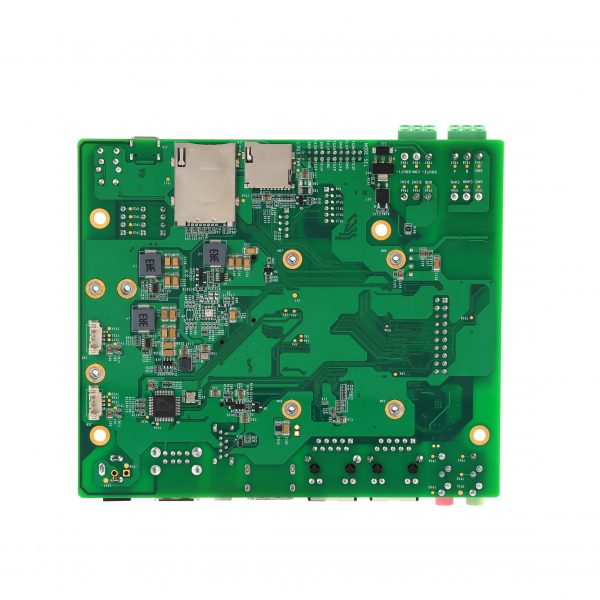

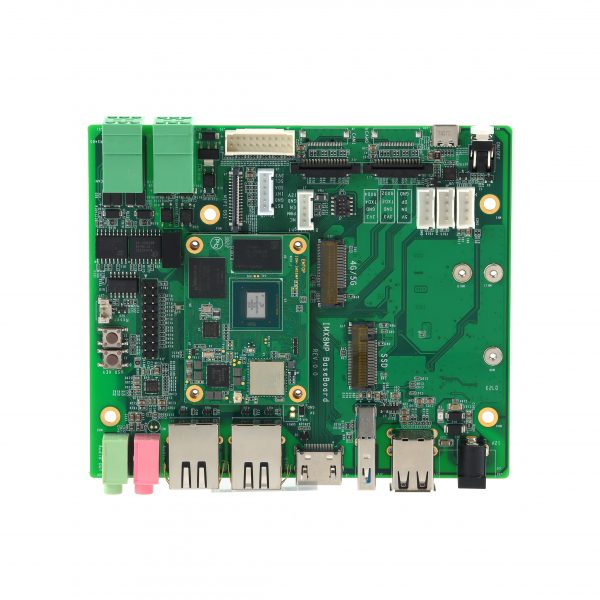

SBC-IMX8MP is singleboard computer including carrier board and SOM-IMX8MP.
2. Specification listed for the SBC:
SOM-IMX8MP Features
CPU(IMX8M Plus):
- 2x or 4x Cortex A53 up to 1.8GHz (default 4xCortex-A53)
- 1x Cortec M7 up to 800MHz
- 375 Mpixel/s HDR ISP
- GC7000UL with OpenCL and Vulkan support
- Video Decode and Encode
- Optional 2.3 TOP/s NPU(default 2.3TOP/s NPU)
Memory:
- Up to 8GB LPDDR4 RAM (2GB default)
Storage:
- 4~64GB eMMC(8GB default)
Connectivity:
- WiFi/BT Combo
- 2x30Pin Double Row 0.4mm Pitch BTB
- 2x100Pin Double Row 0.4mm Pitch BTB
Power supply:
- 5V/2A typical
Mechanical:
- 55*40mm

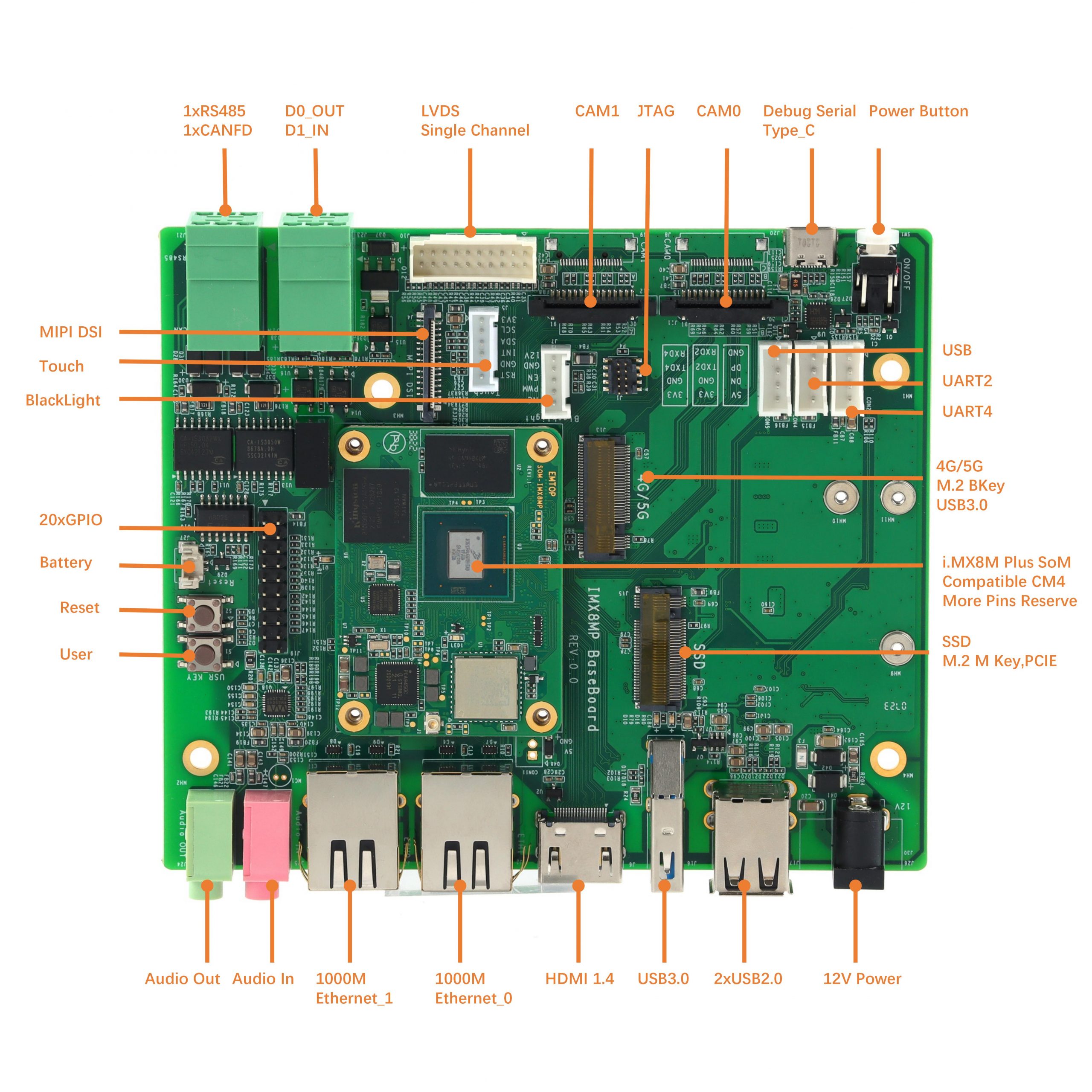

Carrier Board Features:
Connectivity:
- WiFi/BT Combo(on SOM)
- 2x GbE LAN port
- 1x RS485
- 1x CAN
- 1x PCIe(M2 Key M)
I/O Interfaces:
- 14x GPIOs
- 2x DIN
- 2x DO
USB:
- 2x USB2.0 host
- 1x USB3.0 host
- 1x USB3.0 host (M2 Key B)
Display:
- 1x HDMI2.0A(1920 x 1080p60)
- 1x MIPI DSI
- 1x LVDS (single channel)
Media:
- 2x MIPI CSI
- Audio IN/Out
Power supply:
- 12V/2A typical
Mechanical:
- 135.3x113mm
3. SoM information
4. Order Information
| Part Number | CPU | NPU | LPDDR4 | EMMC | WIFI/BT | Temperature | Price@1k | 100PCS | 30PCS | MOQ |
| SBC-IMX8MP-L216CW | MIMX8ML8CVNKZAB | Yes | 2GB | 16GB | Yes | 0°C-70°C | USD175 | 219 | 249 | 1 |
| SBC-IMX8MP-L432CW | MIMX8ML8CVNKZAB | Yes | 4GB | 32GB | Yes | 0°C-70°C | USD219 | 239 | 269 | 1 |
5.Packing List:
- 1xSBC-IMX8MP
- 1x12V@2A Power Adapter
- 1xSerial Debug
- 1xHeatsink
- 1xTF Card
