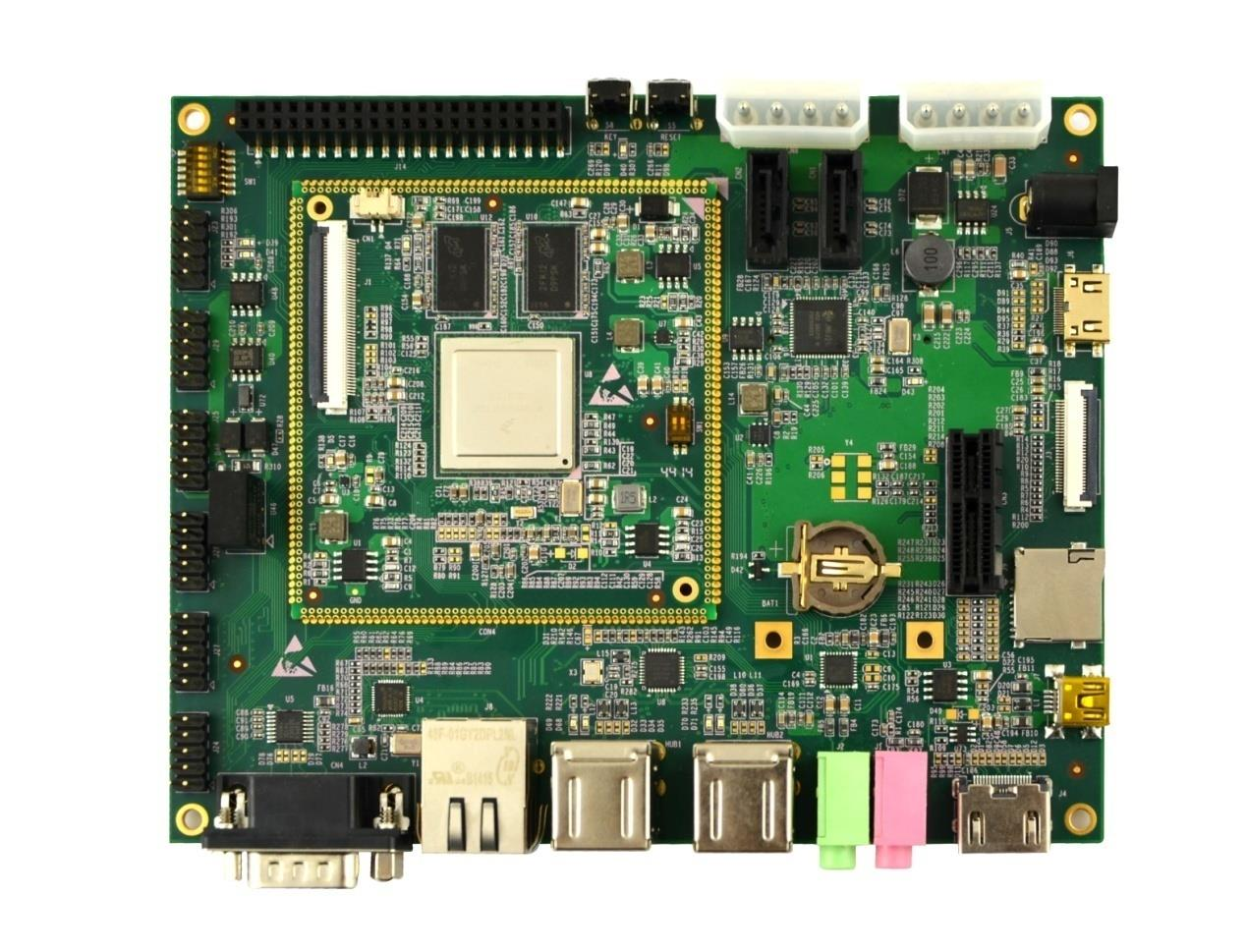

SBC9000 Single Board Computer

Original price was: $169.00.Current price is: $149.00.

Features:

  • CPU: i.MX 6Quad ARM Cortex ™ -A9
  • 4GB eMMC Flash
  • 4*256MB DDR3 SDRAM
  • PCB&Schematic Design File OpenSource For Verified Customer

Github:

  • https://github.com/EMTOP-TECH/MINI9000

Product Documents

3 in stock

Quantity Discount (%) Price
1 - 2 $149.00
3+ 6.71 % $139.00
x
Category: SKU: SBC9000

Description

1 Overview

SBC9000 is an embedded single board computer designed by Embest Technology based on i.MX 6Quad processor. It comes in a configuration of a CPU module Mini9000 + an Expansion board which provides 4 serial ports (one of them supports RS232 debugging),2 isolated CAN2.0 interfaces, 1 gigabit Ethernet, 1 SPI, 3 I2C, 1 SDIO, 2 SATA, 1 PCIe, 1Mini PCIe, 4 USB Host and 1 OTG, 1 LCD and 1 LVDS display interface, 1 HDMI, audioinput/output, TF card slot, etc. SBC9000 is compatible with Linux 3.10.17 and Android4.4.2, aiming to help developer in a wide range of areas such as industrial control,
netbooks, all-in-one PCs, high-end mobile Internet devices, high-end PDAs, high-endportable medial players, game consoles and compact navigation devices.

2 Specification

2.1 Mini9000 CPU System On Module

General Features

  • Product Dimensions: 70 mm×68 mm
  • Operating Temperature: 0~70℃
  • Operating Humidity: 20% ~ 90% (Non-condensing)
  • Input Voltage: 5V

Processor

  • ARM Cortex™-A9 i.MX 6Quad Processor
  • 32 KByte L1 Instruction Cache
  • 32 KByte L1 Data Cache
  • Private Timer and Watchdog
  • Cortex-A9 NEON MPE (Media Processing Engine) Coprocessor
  • 2D Graphics Processors

On-Board Memories:

  • 4GByte eMMC
  • 4*256MB DDR3 SDRAM

On-Board Interfaces:

  • TTL232×4 (4-bit×2 + 2-bit×2)
  • CAN2.0×2
  • RGMII×1
  • SPI×1
  • I2C×3
  • 8-bit SDIO×1
  • SATA×1
  • PCIe×1
  • USB Host×1
  • USB OTG×1
  • LVDS×1
  • HDMI×1
  • LCD×1
  • Audio×1
  • Camera×1
  • GPMC
  • Boot Configuration
  • GPIO

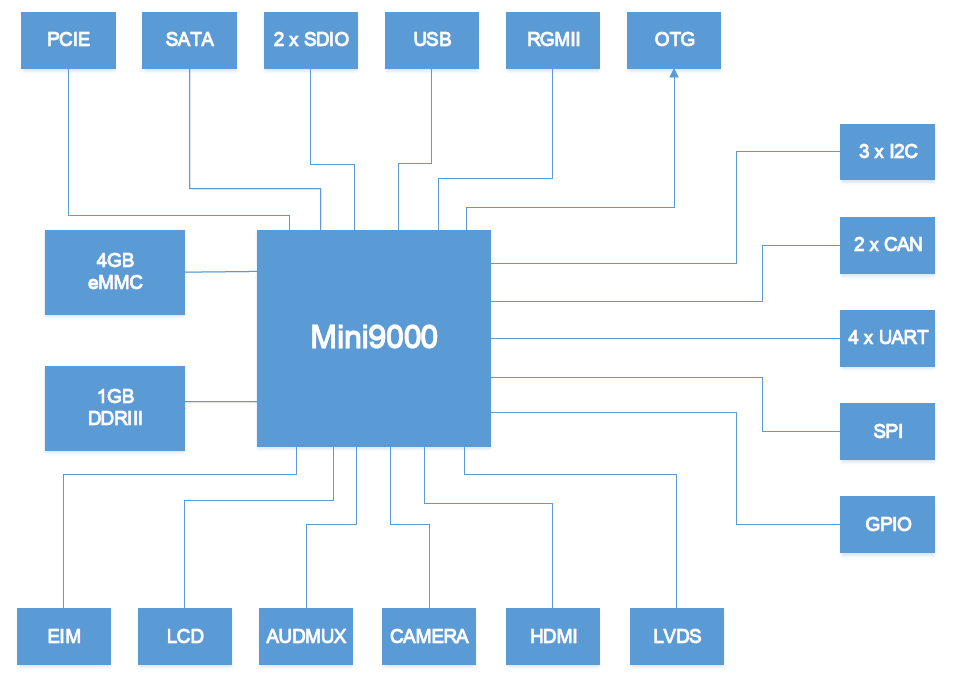

System Block Diagram



2.2 Carrier Board

General Features

  • Product Dimensions: 150 mm×120 mm
  • Operating Temperature: 0~70℃
  • Operating Humidity: 20% ~ 90% (Non-condensing)
  • Input Voltage: 12V

Audio/Video Interfaces

  • HDMI×1
  • LVDS×1
  • Audio Input (3.5mm)×1
  • Stereo Audio Output (3.5mm)×1

Data Transfer Interfaces

  • 10/100/1000Mbps Ethernet×1
  • Isolated CAN 2.0×2
  • SPI×1
  • I2C×3
  • SDIO×1
  • SATA×2
  • TF card slot×1
  • PCIe×1
  • mini PCIe×1
  • USB host×4
  • USB OTG×1
  • Serial Port×4 (One of them supports DB9 debugging)

LEDs&Buttons

  • User-Defined Button×1
  • Reset Button×1
  • LED Power Indicator×1
  • User-Defined LED×2

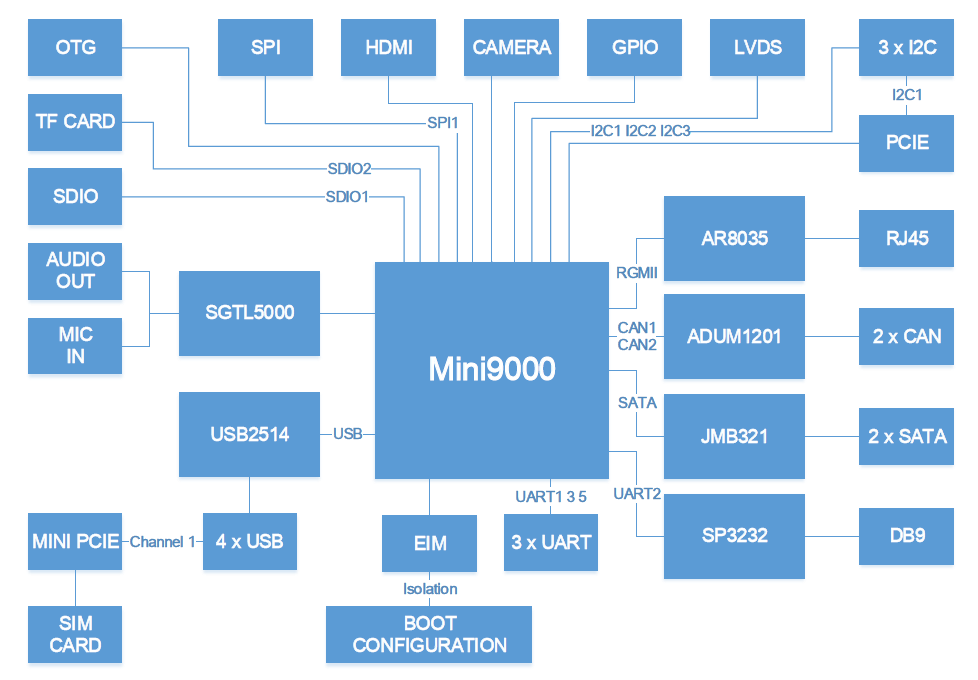

System Block Diagram

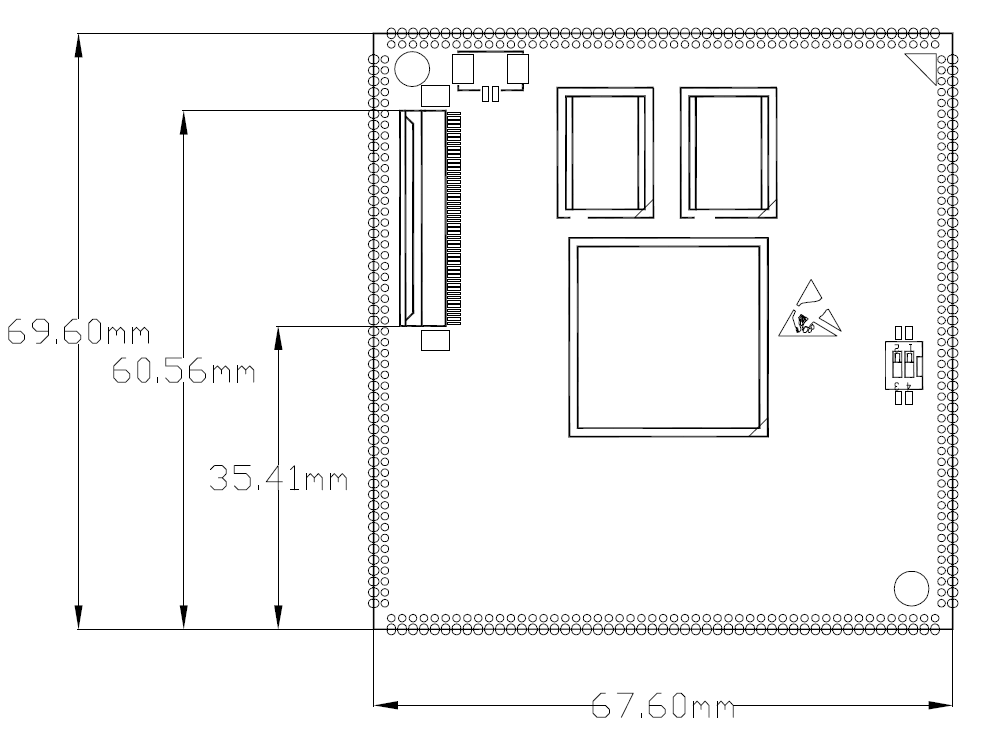

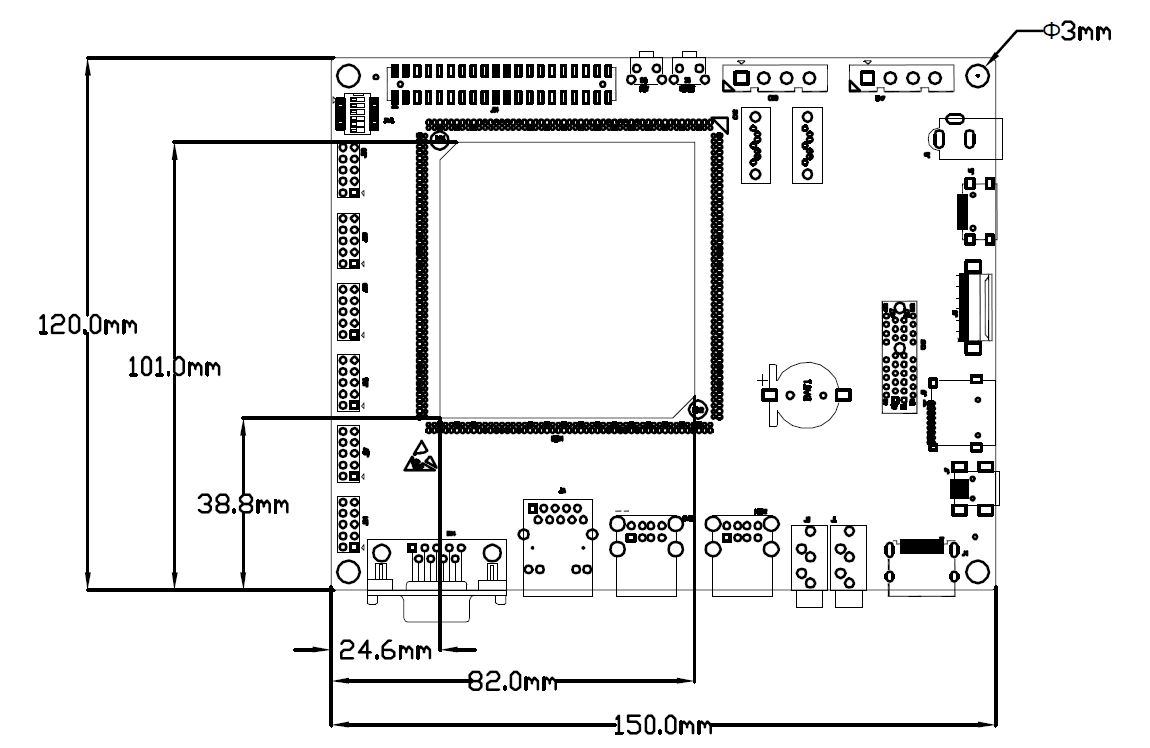

3 Dimension
