Sale!

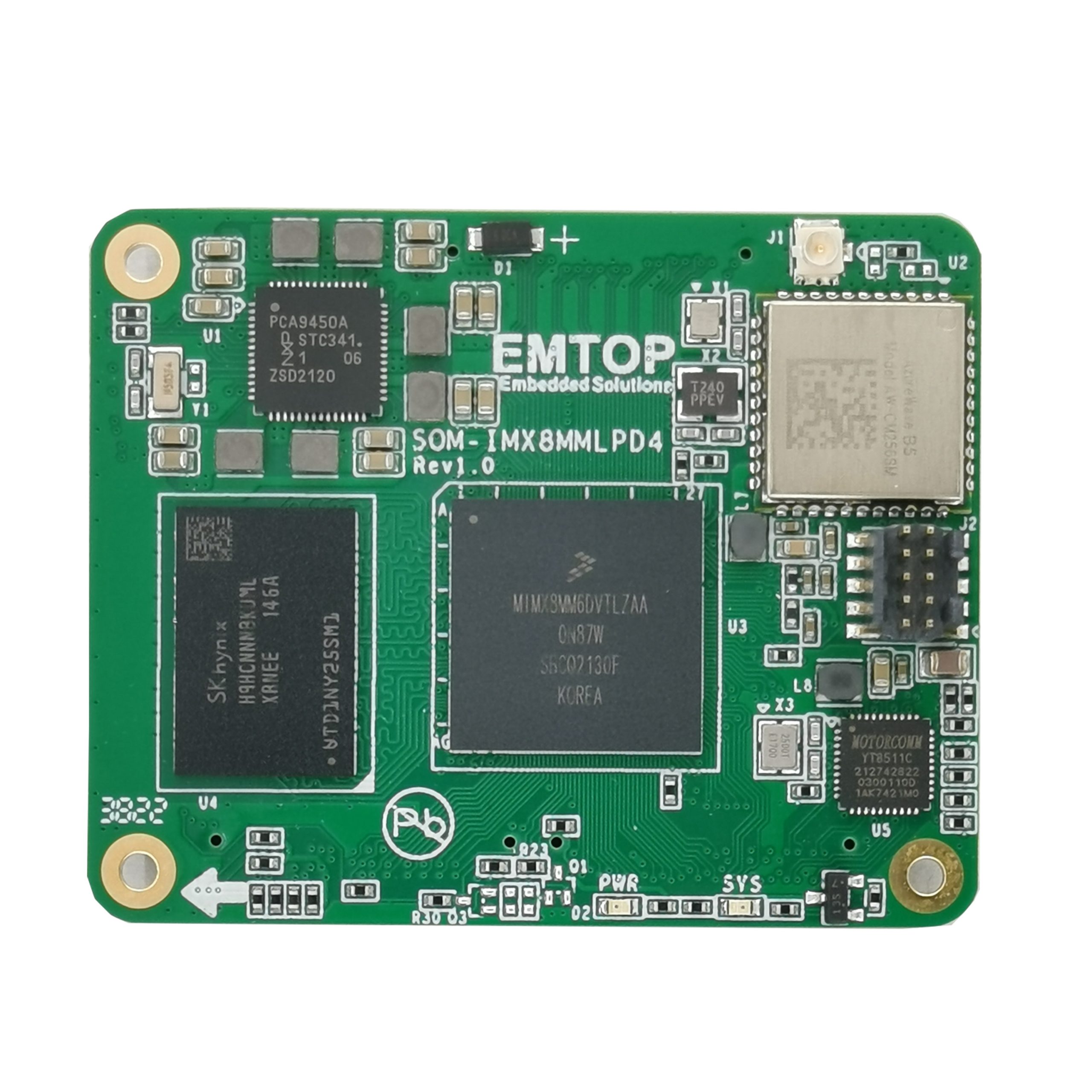

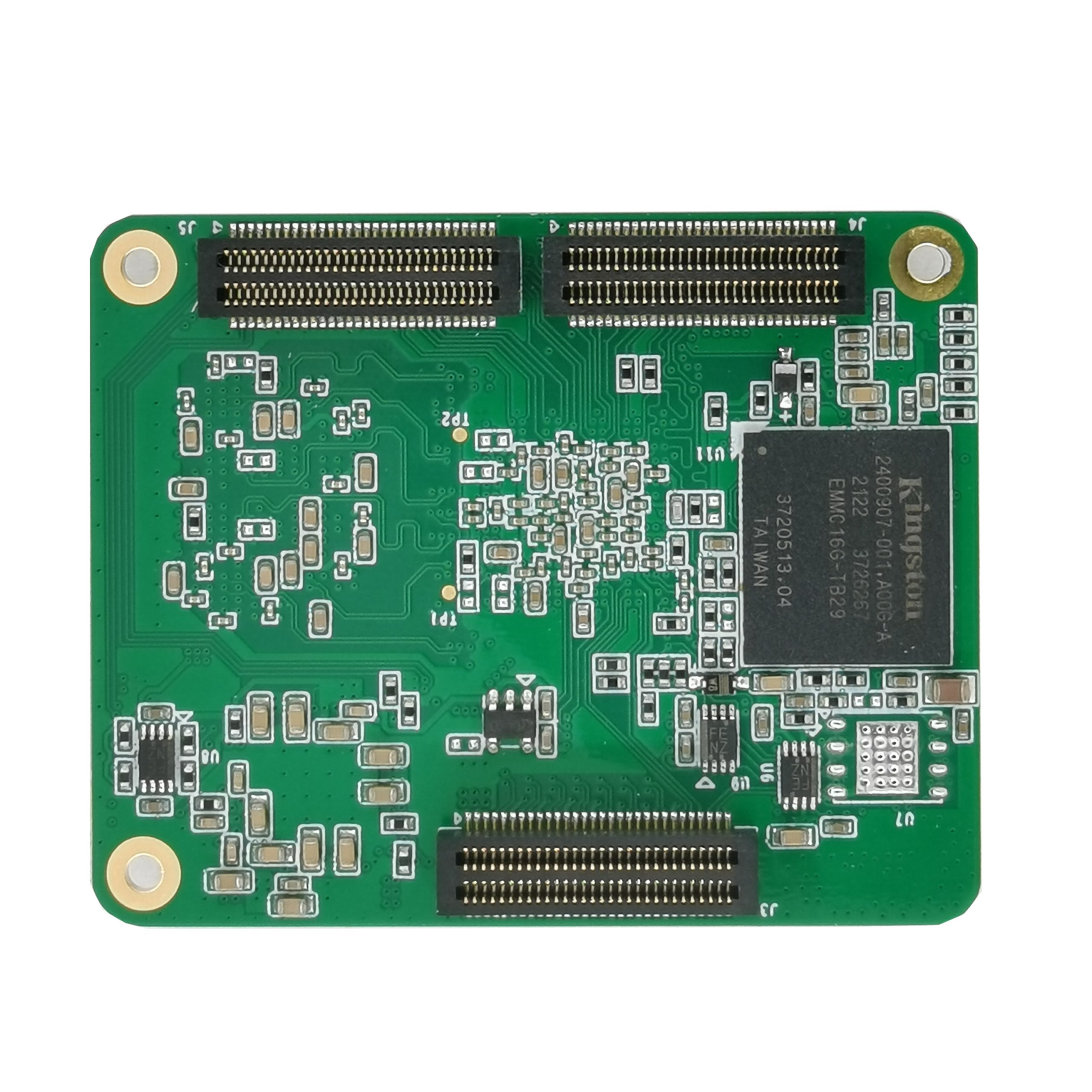

SOM-IMX8MM-LPD4

Original price was: $99.00.Current price is: $69.00.

Github: https://github.com/EMTOP-TECH/SOM-IMX8MM-LPD4

Features:

  • Default Item: SOM-IMX8MM-LPD4-216CW
  • CPU: MIMX8MM6DVTLZAANXP,4xCortexA53 1.8Ghz
  • 2GB LPDDR4, 16GB eMMC on board, PHY ON Board
  • Rich peripheral I/O support
  • Long life time supply with NXP solution
  • Yocto-L5.10.72_2.2.0,  Yocto-L6.1.22

Product Documents

x
Categories: , SKU: SOM-IMX8MM-LPD4-216CW Tags:

Description

Hardware Specification

Form Factor 3xPH Connectors





OS Yocto Linux
Uboot Version&Source Code 2020.04,Stand Alone Source
Kernel Version&Source Code 5.4,Stand Alone Source
***Yocto Patch*** Uboot 2021.04

Kernel 5.4



Processor NXP i.MX 8M Mini Quad Cortex™-A53 and Cortex™-M4 processor
System Memory 2GB LPDDR4 on board (Up to 4GB Max)
Flash Memory 16GB eMMC on board (Up to 64GB Max)
Display 1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz
Video Codec • 1080p60 VP9

• 1080p60 HEVC/H.265 decoder

• 1080p60 AVC/H.264 Baseline, Main, High decoder

• 1080p60 VP8

• 1080p60 AVC/H.264 encoder

• 1080p60 VP8

• TrustZone support

Graphics • GCNanoUltra

• Vivante GC320

Audio Interface 3x Sai, 1x SPDIF
LAN 1x GbE LAN
USB 2x USB 2.0 with OTG interface
Image Capture Interface 1x MIPI-CSI2 4-lane
Serial Interface 4x UART, 1x SPI Interface
Media Interface 1xSDIO 4-bit
PCI-E 1x PCI-E (x1) Gen2
SATA N/A
GPIO 12x GPIO
I²C 3x I²C
WIFI/BT Wi-Fi 1×1 (802.11b/g/n/ac 2.4/5GHz)/Bluetooth 5.0
CAN Bus N/A
Dimensions 50mm x 40mm x 7.3 mm
Environment Humidity: 0 % to 90 % RH at 60°C(non-condensing)
Operating Temperature 0°C-70°C Default

-40°C ~ 85°C



Software Specification

Names Note Formats
BOOTLOADER U-BOOT MMC/SD Source Code
FAT Source Code
NET Source Code
KERNEL LINUX-5.4 Support ROM/CRAM/EXT4/FAT/NFS various of file system Source Code
DEVICE DRIVER SERIAL Serials driver Source Code
RTC Hardware RTC driver Source Code
NET 10/100M/1000M Ethernet driver Source Code
CAN CAN bus driver Source Code
SPI SPI driver Source Code
SPI FLASH SPI Flash driver Source Code
I2C I2C driver Source Code
LCD MIPI-DSI driver Source Code
TOUCH SCREEN I2C Resistive touch panel driver Source Code
MMC/SD MMC/SD controller driver Source Code
USB OTG USB OTG driver Source Code
AUDIO Audio driver (supports audio recording and playback) Source Code
AUDIO SPDIF SPDIF interface, playback Source Code
BUTTON GPIO button driver Source Code
LED LED driver Source Code
BUZZER Buzzer driver Source Code
WIFI SDIO WIFI dongle driver Source Code
ROOTFS YOCTO Weston with Qt & Opencv Image



Add On Modules

LCD-MIPI7C 7 Inch MIPI Display for imx8m mini USB 4G Module 4G Module For imx8m mini series Board MIPI TO HDMI/LVDS Adapter Board
MIPI To HDMI Adapter Board
CAM-MIPI5640 500MP MIPI Camera PCIE WIFI6
PCIE WIFI
PCIe to USB3.0 module uPD72020x
PCIE To USB3.0



Order Information

Order Information
Item Name CPU LPDDR4 EMMC WIFI/BT Price 1k Temperature Price 30PCS 100PCS
SOM-IMX8MM-LPD4-216CW MIMX8MM6DVTLZAA 2GB 16GB Yes USD59 0°C-70° USD69 USD66
SOM-IMX8MM-LPD4-216IW MIMX8MM6CVTKZAA 2GB 16GB Yes USD69 -45°C-85° USD79 USD76
SOM-IMX8MM-LPD4-432CW MIMX8MM6DVTLZAA 4GB 32GB Yes USD69 0°C-70° USD79 USD76
SOM-IMX8MM-LPD4-432IW MIMX8MM6CVTKZAA 4GB 32GB Yes USD79 -45°C-85° USD89 USD86
