Description

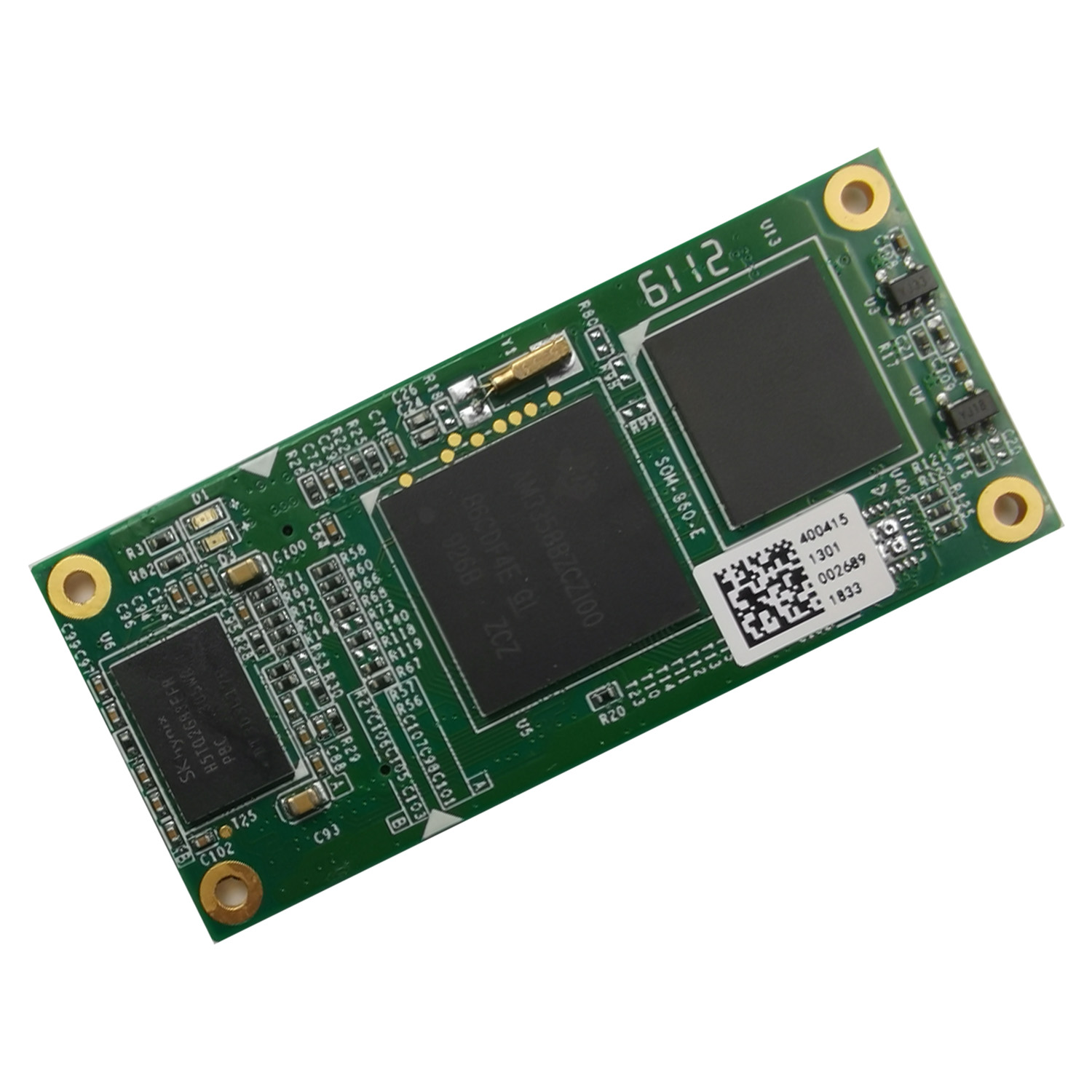

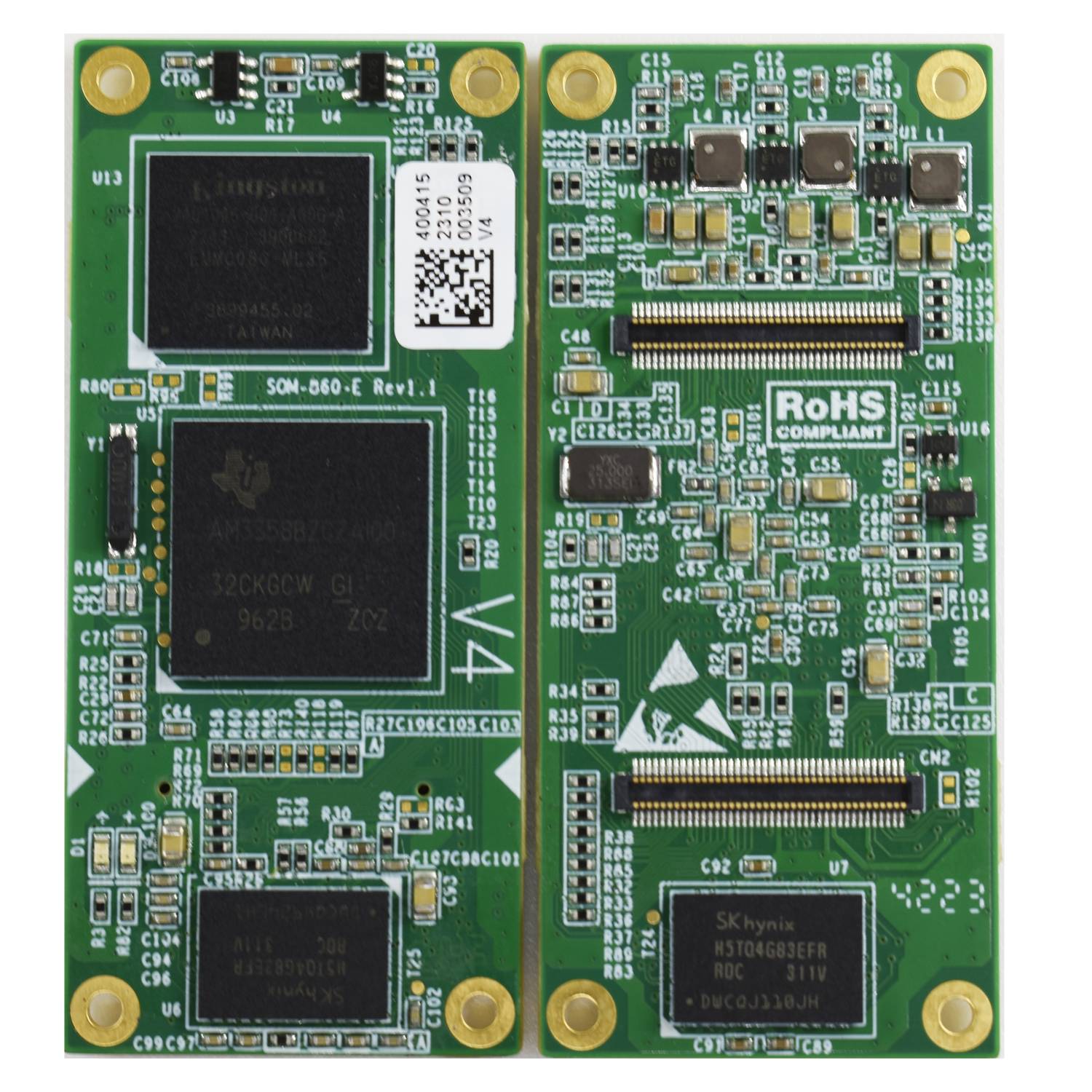

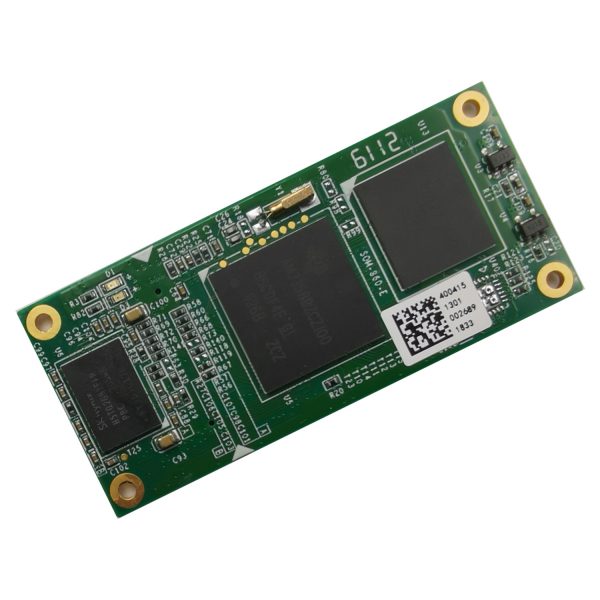

SOM-860-E is a small form-factor controller board based on TI’s Sitara AM3354/AM3358 ARM Cortex-A8 processor, meauring only 60mm by 27mm; The tiny module integrates 2*512MBytes DDR3 SDRAM and 8GB EMMC; It uses two 0.4mm pitch 40-pin board-to-board male extension connectors to bring out most hardware peripheral signals and GPIOs from the CPU.
Hardware Overview
- Mechanical Parameters
- Working Temperature: 0°C – 70°C
- Humidity Range: 20% – 90%
- Dimensions: 60mm x 27mm
- Stacking Height:1.5mm
- Input Voltage: 3V
- Processor
- ARM Cortex-A832-Bit RISC Processor up to 1GHz
- NEON™ SIMD Coprocessor
- SGX530 3D Graphics Engine
- Up to 24-Bit Data Output,resolution up to 2048 × 2048
- Memories
- 512MByte DDR3L@ 400MHz
- 8GBeMMC
- Interfaces
- One channel GMII interface
- ParallelLCD interface
- 16bit GPMC interface
- Four channel UART interface
- Two channel CAN interface
- USB Host
- USB OTG
- Eight channel ADC inputs
- SPI interface
- I2S interface
- SDIO interface
- Data Transfer Interfaces
- Serial Ports
- UART0, 2line serial port, TTL Logic
- UART1, 2line serial port, TTL Logic
- UART3, 2line serial port, TTL Logic
- UART4, 2line serial port, TTL Logic
- USB Ports:
- 1 x USB2.0 OTG, 480Mbps
- 1x USB2.0 HOST, 480Mbps
- MMCcard interface port by GPMC Interface
- 1 channel GMAC
- 1 channel I2C interface
- 1 channel CAN bus
- Serial Ports
Application
- HMI
- Medical appliances
- Industrial automation
- Weighing Scales
- Smart Toll Systems
- Educational Consoles

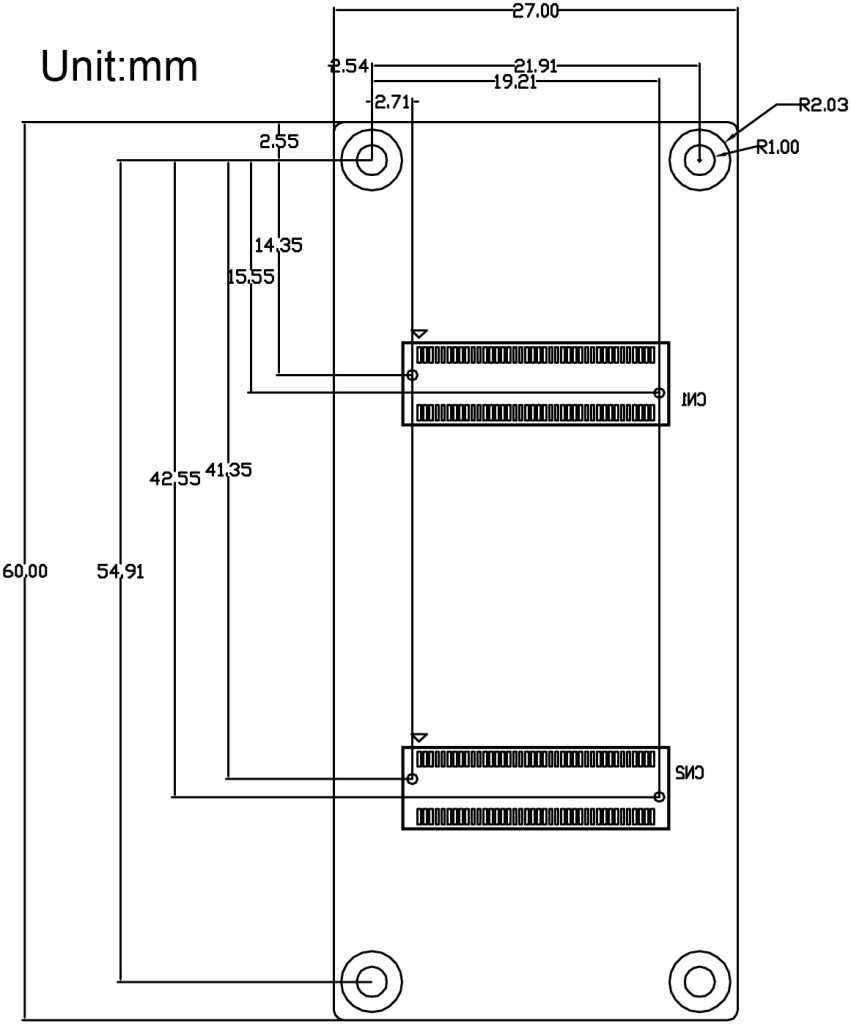

Mechanical Dimension

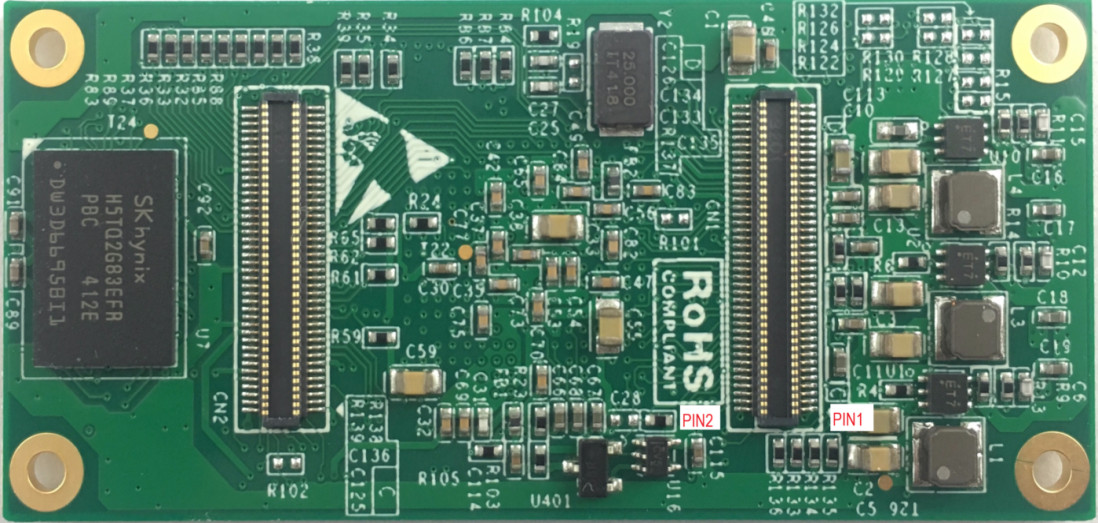

Pin Definition
|
CN1 |
|||||
|
Number |
Signal |
Power Logic |
Input/Output |
CPU Ball |
Pull Down/Up on Board |
|
1 |
GND |
|
|
|
|
|
2 |
VDDS_RTC |
|
RTC Power In |
D7 |
|
|
3 |
CLK_OUT1 |
3.3V |
In/Out |
A15 |
|
|
4 |
CLK_OUT2 |
3.3V |
In/Out |
D14 |
|
|
5 |
MMC1_DAT01 |
3.3V |
In/Out |
U7 |
|
|
6 |
MMC1_DAT12 |
3.3V |
In/Out |
V7 |
|
|
7 |
MMC1_DAT23 |
3.3V |
In/Out |
R8 |
|
|
8 |
GLOBLE_RESETN |
3.3V |
In/Out |
A10 |
100K Pull-Down |
|
9 |
MMC1_DAT34 |
3.3V |
In/Out |
T8 |
|
|
10 |
AM335X_PWRON_RESETN |
3.3V |
In |
B15 |
100K Pull-Up 3.3V |
|
11 |
GND |
|
|
|
|
|
12 |
GND |
|
|
|
|
|
13 |
AM355X_PRU_UART0_CTS |
3.3V |
In/Out |
A17 |
|
|
14 |
AM355X_PRU_UART0_RX |
3.3V |
In/Out |
B16 |
|
|
15 |
AM355X_PRU_UART0_RTS |
3.3V |
In/Out |
B17 |
|
|
16 |
AM355X_PRU_UART0_TX |
3.3V |
In/Out |
A16 |
|
|
17 |
AM355X_UART0_RX |
3.3V |
In/Out |
E15 |
|
|
18 |
AM355X_UART3_RX |
3.3V |
In/Out |
C15 |
|
|
19 |
AM355X_UART0_TX |
3.3V |
In/Out |
E16 |
|
|
20 |
AM355X_UART3_TX |
3.3V |
In/Out |
C18 |
|
|
21 |
AM355X_CAN0_RX |
3.3V |
In/Out |
D17 |
|
|
22 |
AM355X_I2C0_SDA |
3.3V |
In/Out |
C17 |
|
|
23 |
AM355X_CAN0_TX |
3.3V |
In/Out |
D18 |
|
|
24 |
AM355X_I2C0_SCL |
3.3V |
In/Out |
C16 |
|
|
25 |
AM355X_UART4_RX |
3.3V |
In/Out |
E18 |
|
|
26 |
AM355X_UART1_RX |
3.3V |
In/Out |
D16 |
|
|
27 |
AM355X_UART4_TX |
3.3V |
In/Out |
E17 |
|
|
28 |
AM355X_UART1_TX |
3.3V |
In/Out |
D15 |
|
|
29 |
GND |
|
|
|
|
|
30 |
GND |
|
|
|
|
|
31 |
MII1_COL |
3.3V |
In/Out |
H16 |
|
|
32 |
AM355X_USB0_DRVVBUS |
3.3V |
In/Out |
F16 |
|
|
33 |
MII1_TX_CLK |
3.3V |
In/Out |
K18 |
|
|
34 |
AM355X_USB1_DRVVBUS |
3.3V |
In/Out |
F15 |
|
|
35 |
MII1_TX_EN |
3.3V |
In/Out |
J16 |
|
|
36 |
MII1_REF_CLK |
3.3V |
In/Out |
H18 |
|
|
37 |
MII1_TXD3 |
3.3V |
In/Out |
J18 |
|
|
38 |
MII1_CRS |
3.3V |
In/Out |
H17 |
|
|
39 |
MII1_TXD2 |
3.3V |
In/Out |
K15 |
|
|
40 |
MII1_RX_ER |
3.3V |
In/Out |
J15 |
|
|
41 |
MII1_TXD1 |
3.3V |
In/Out |
K16 |
|
|
42 |
MII1_RX_DV |
3.3V |
In/Out |
J17 |
|
|
43 |
MII1_TXD0 |
3.3V |
In/Out |
K17 |
|
|
44 |
MII1_RX_CLK |
3.3V |
In/Out |
L18 |
|
|
45 |
MII_MDIO |
3.3V |
In/Out |
M17 |
|
|
46 |
MII1_RXD3 |
3.3V |
In/Out |
L17 |
|
|
47 |
MII_MDC |
3.3V |
In/Out |
M18 |
|
|
48 |
MII1_RXD2 |
3.3V |
In/Out |
L16 |
|
|
49 |
GND |
|
|
|
|
|
50 |
MII1_RXD1 |
3.3V |
In/Out |
L15 |
|
|
51 |
AM355X_USB0_DM |
3.3V |
In/Out |
N18 |
|
|
52 |
MII1_RXD0 |
3.3V |
In/Out |
M16 |
|
|
53 |
AM355X_USB0_DP |
3.3V |
In/Out |
N17 |
|
|
54 |
MMC1_CMD5 |
3.3V |
In/Out |
V9 |
|
|
55 |
GND |
|
|
|
|
|
56 |
USB0_VBUS |
5V |
USB Power In |
P15 |
|
|
57 |
AM355X_USB1_DM |
3.3V |
In/Out |
R18 |
|
|
58 |
AM355X_USB1_ID |
3.3V |
In |
P17 |
|
|
59 |
AM355X_USB1_DP |
3.3V |
In/Out |
R17 |
|
|
60 |
AM355X_USB0_ID |
3.3V |
In |
P16 |
|
|
61 |
GND |
|
|
|
|
|
62 |
USB1_VBUS |
5V |
USB Power In |
T18 |
|
|
63 |
GPMC_A0 |
3.3V |
In/Out |
R13 |
|
|
64 |
GPMC_A7 |
3.3V |
In/Out |
T15 |
|
|
65 |
GPMC_A5 |
3.3V |
In/Out |
V15 |
|
|
66 |
GPMC_A11 |
3.3V |
In/Out |
V17 |
|
|
67 |
GPMC_A4 |
3.3V |
In/Out |
R14 |
|
|
68 |
GPMC_A10 |
3.3V |
In/Out |
T16 |
|
|
69 |
GPMC_A3 |
3.3V |
In/Out |
T14 |
|
|
70 |
GPMC_A9 |
3.3V |
In/Out |
U16 |
|
|
71 |
GPMC_A2 |
3.3V |
In/Out |
U14 |
|
|
72 |
GPMC_A8 |
3.3V |
In/Out |
V16 |
|
|
73 |
GPMC_A6 |
3.3V |
In/Out |
U15 |
|
|
74 |
GPMC_A1 |
3.3V |
In/Out |
V14 |
|
|
75 |
GND |
|
|
|
|
|
76 |
GND |
|
|
|
|
|
77 |
VDD_3V3 |
|
Board Power In |
|
|
|
78 |
VDD_3V3 |
|
Board Power In |
|
|
|
79 |
VDD_3V3 |
|
Board Power In |
|
|
|
80 |
VDD_3V3 |
|
Board Power In |
|
|
Note:
1 Function out from GPMC_AD0, ball U7
2 Function out from GPMC_AD1, ball V7
3 Function out from GPMC_AD2, ball R8
4 Function out from GPMC_AD3, ball T8
5 Function out from GPMC_CSN2, ball V9
|
CN2 |
|||||
|
Number |
Signal |
Power Logic |
Input/Output |
CPU Ball |
Pull Down/Up on Board |
|
1 |
GND |
|
|
|
|
|
2 |
GND |
|
|
|
|
|
3 |
MCASP0_AHCLKX |
3.3V |
In/Out |
A14 |
|
|
4 |
MCASP0_ACLKX |
3.3V |
In/Out |
A13 |
|
|
5 |
MCASP0_FSX |
3.3V |
In/Out |
B13 |
|
|
6 |
MCASP0_AXR0 |
3.3V |
In/Out |
D12 |
|
|
7 |
MCASP0_AHCLKR |
3.3V |
In/Out |
C12 |
|
|
8 |
MMC1_CLK6 |
3.3V |
In/Out |
U9 |
|
|
9 |
MCASP0_FSR |
3.3V |
In/Out |
C13 |
|
|
10 |
MCASP0_AXR1 |
3.3V |
In/Out |
D13 |
|
|
11 |
GND |
|
|
|
|
|
12 |
GND |
|
|
|
|
|
13 |
VDDA_ADC |
|
ADC Power In |
D8 |
|
|
14 |
AM355X_ADC0 |
VDDA_ADC |
Analog In |
B6 |
|
|
15 |
AM355X_ADC1 |
VDDA_ADC |
Analog In |
C7 |
|
|
16 |
AM355X_ADC2 |
VDDA_ADC |
Analog In |
B7 |
|
|
17 |
AM355X_ADC3 |
VDDA_ADC |
Analog In |
A7 |
|
|
18 |
AM355X_ADC4 |
VDDA_ADC |
Analog In |
C8 |
|
|
19 |
AM355X_ADC5 |
VDDA_ADC |
Analog In |
B8 |
|
|
20 |
AM355X_ADC6 |
VDDA_ADC |
Analog In |
A8 |
|
|
21 |
AM355X_ADC7 |
VDDA_ADC |
Analog In |
C9 |
|
|
22 |
GND_ADC |
|
|
|
|
|
23 |
GND |
|
|
|
|
|
24 |
GND |
|
|
|
|
|
25 |
LCD_DATA1 |
3.3V |
In/Out |
R2 |
100k pull down |
|
26 |
LCD_DATA12 |
3.3V |
In/Out |
V2 |
100k pull down |
|
27 |
LCD_DATA0 |
3.3V |
In/Out |
R1 |
100k pull down |
|
28 |
LCD_DATA10 |
3.3V |
In/Out |
U3 |
100k pull down |
|
29 |
LCD_DATA5 |
3.3V |
In/Out |
T2 |
100k pull up |
|
30 |
LCD_DATA13 |
3.3V |
In/Out |
V3 |
100k pull down |
|
31 |
LCD_DATA4 |
3.3V |
In/Out |
T1 |
100k pull up |
|
32 |
LCD_DATA11 |
3.3V |
In/Out |
U4 |
100k pull down |
|
33 |
LCD_DATA6 |
3.3V |
In/Out |
T3 |
100k pull down |
|
34 |
LCD_DATA14 |
3.3V |
In/Out |
V4 |
100k pull down |
|
35 |
LCD_DATA8 |
3.3V |
In/Out |
U1 |
100k pull down |
|
36 |
LCD_VSYNC |
3.3V |
In/Out |
U5 |
|
|
37 |
GND |
|
|
|
|
|
38 |
GND |
|
|
|
|
|
39 |
LCD_DATA9 |
3.3V |
In/Out |
U2 |
100k pull up |
|
40 |
LCD_PCLK |
3.3V |
In/Out |
V5 |
|
|
41 |
LCD_DATA15 |
3.3V |
In/Out |
T5 |
100k pull up |
|
42 |
GPMC_AD11 |
3.3V |
In/Out |
U12 |
|
|
43 |
LCD_DATA3 |
3.3V |
In/Out |
R4 |
100k pull up |
|
44 |
GPMC_AD15 |
3.3V |
In/Out |
U13 |
|
|
45 |
LCD_DATA2 |
3.3V |
In/Out |
R3 |
100k pull down |
|
46 |
GPMC_AD14 |
3.3V |
In/Out |
V13 |
|
|
47 |
LCD_DATA7 |
3.3V |
In/Out |
T4 |
100k pull down |
|
48 |
GPMC_WAIT0 |
3.3V |
In/Out |
T17 |
|
|
49 |
LCD_HSYNC |
3.3V |
In/Out |
R5 |
|
|
50 |
GPMC_BEN1 |
3.3V |
In/Out |
U18 |
|
|
51 |
GND |
|
|
|
|
|
52 |
GND |
|
|
|
|
|
53 |
LCD_EN |
3.3V |
In/Out |
R6 |
|
|
54 |
GPMC_WPN |
3.3V |
In/Out |
U17 |
|
|
55 |
GPMC_AD13 |
3.3V |
In/Out |
R12 |
|
|
56 |
GPMC_CSN3 |
3.3V |
In/Out |
T13 |
|
|
57 |
GPMC_AD9 |
3.3V |
In/Out |
T10 |
|
|
58 |
GPMC_CSN2 |
3.3V |
In/Out |
V9 |
|
|
59 |
GPMC_AD10 |
3.3V |
In/Out |
T11 |
|
|
60 |
GPMC_CLK |
3.3V |
In/Out |
V12 |
|
|
61 |
GPMC_AD8 |
3.3V |
In/Out |
U10 |
|
|
62 |
GPMC_AD6 |
3.3V |
In/Out |
R9 |
|
|
63 |
GPMC_AD12 |
3.3V |
In/Out |
T12 |
|
|
64 |
GND |
|
|
|
|
|
65 |
GND |
|
|
|
|
|
66 |
GPMC_CSN1 |
3.3V |
In/Out |
U9 |
|
|
67 |
GPMC_ADVN_ALE |
3.3V |
In/Out |
R7 |
|
|
68 |
GPMC_AD5 |
3.3V |
In/Out |
V8 |
|
|
69 |
GPMC_BEN0_CLE |
3.3V |
In/Out |
T6 |
|
|
70 |
GPMC_AD4 |
3.3V |
In/Out |
U8 |
|
|
71 |
GPMC_OEN_REN |
3.3V |
In/Out |
T7 |
|
|
72 |
GPMC_AD1 |
3.3V |
In/Out |
V7 |
|
|
73 |
GPMC_AD2 |
3.3V |
In/Out |
R8 |
|
|
74 |
GPMC_AD0 |
3.3V |
In/Out |
U7 |
|
|
75 |
GPMC_AD3 |
3.3V |
In/Out |
T8 |
|
|
76 |
GPMC_CSN0 |
3.3V |
In/Out |
V6 |
|
|
77 |
GPMC_AD7 |
3.3V |
In/Out |
T9 |
|
|
78 |
GPMC_WEN |
3.3V |
In/Out |
U6 |
|
|
79 |
GND |
|
|
|
|
|
80 |
GND |
|
|
|
|
Connector
Please Refer To Product Documents
Software
|
Items |
Notes |
|
|
OS |
Linux |
Version 4.1.6 |
|
Device Driver |
Serial |
Serial driver |
|
Rtc |
Hardware clock driver |
|
|
Net |
2*10M/100M/Gb Ethernets |
|
|
Display |
Display port (RGB TFT) |
|
|
MMC/SD |
4-bit SDIO |
|
|
eMMC |
8GB eMMC |
|
|
USB |
3 High speed USB ports (2*Host, 1*OTG) |
|
|
Audio |
Analog (headphone/MIC) |
|
|
RS485 |
1*RS485 port |
|
|
CAN |
1*CAN Bus port |
|
|
Keypad |
GPIO keyboard driver |
|
|
LED |
User leds driver |
|
|
Buzzer |
1*buzzer |
|
|
Items |
Notes |
|
|
OS |
Linux |
Version 3.2 |
|
Device Driver |
Serial |
Serial driver |
|
Rtc |
Hardware clock driver |
|
|
Net |
2*10M/100M/Gb Ethernets |
|
|
Display |
Display port (RGB TFT) |
|
|
MMC/SD |
4-bit SDIO |
|
|
eMMC |
8GB eMMC |
|
|
USB |
3 High speed USB ports (2*Host, 1*OTG) |
|
|
Audio |
Analog (headphone/MIC) |
|
|
RS485 |
1*RS485 port |
|
|
CAN |
1*CAN Bus port |
|
|
Keypad |
GPIO keyboard driver |
|
|
LED |
User leds driver |
|
|
Buzzer |
1*buzzer |
|
Carrier Board Description
