Description
Overview:

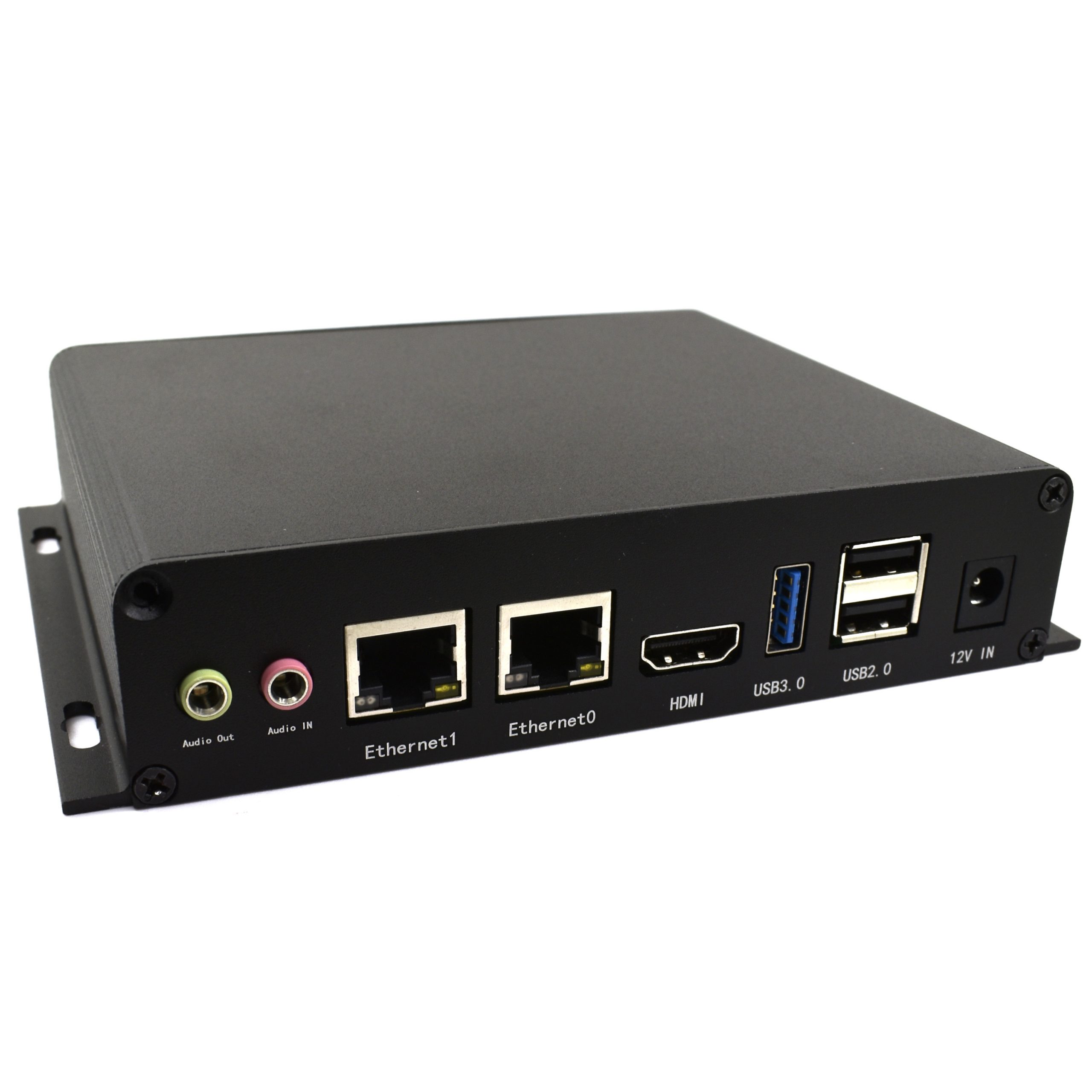

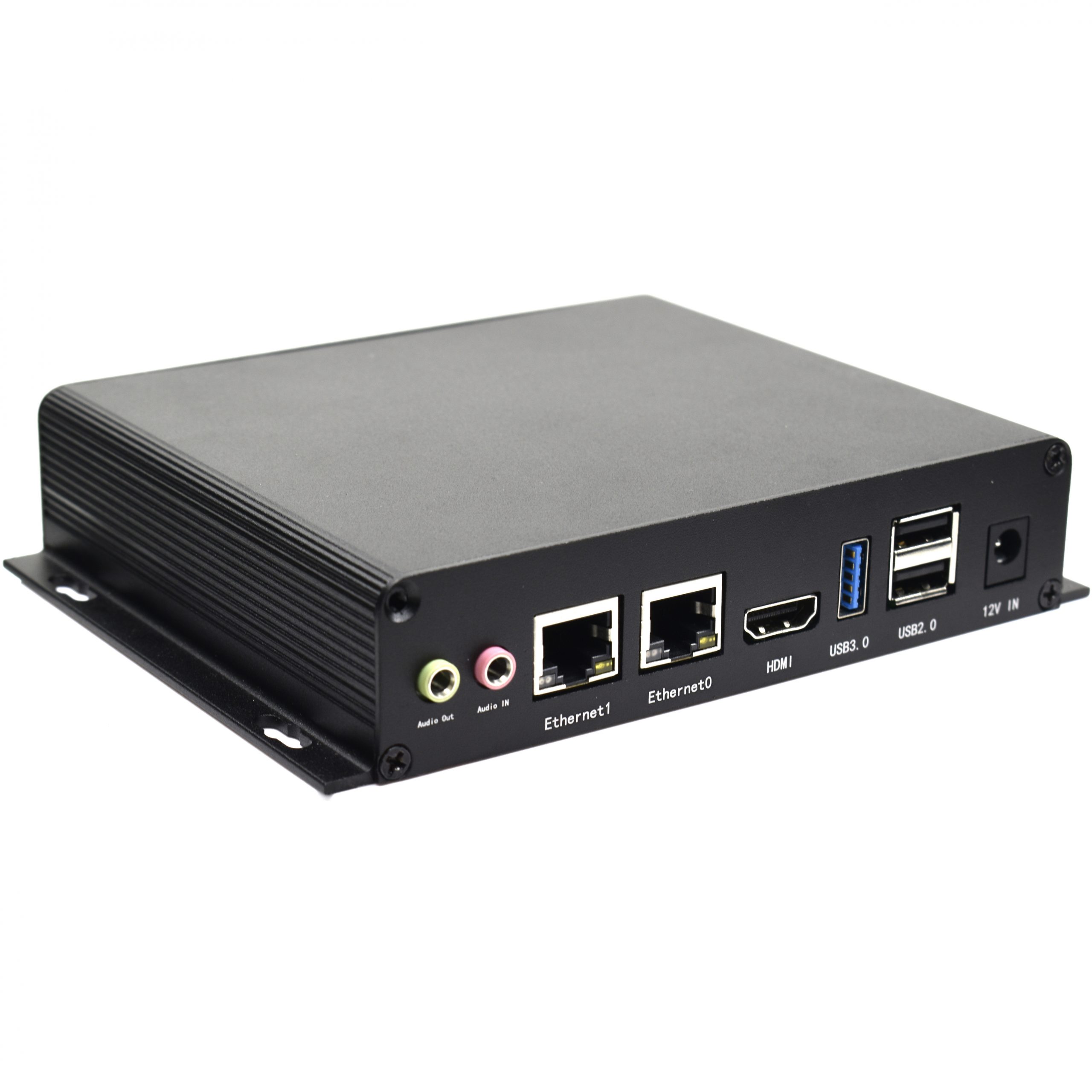

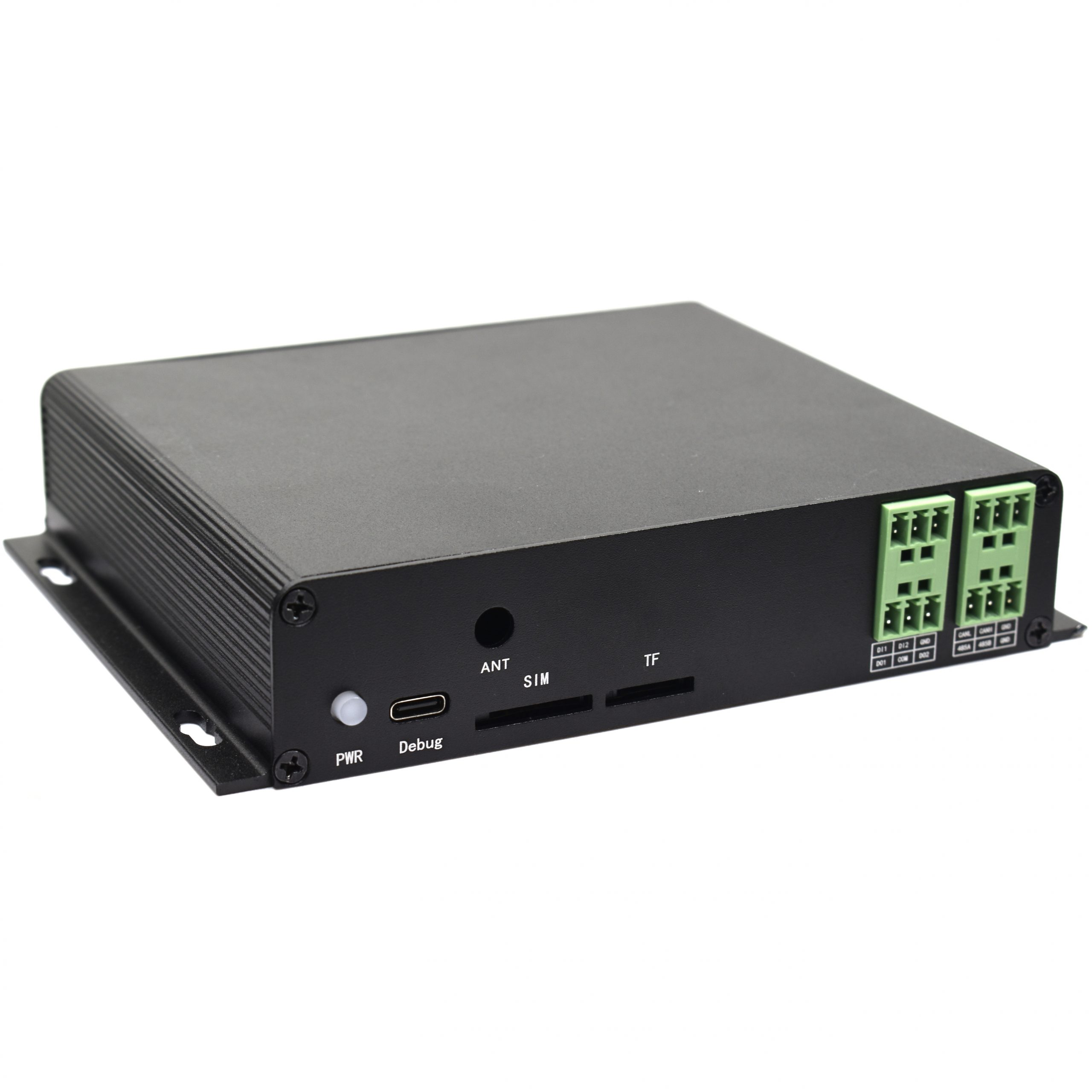

- EC-8MPEdge Computer is composed of SOM-IMX8MP, Carrier Board and the steel & aluminum enclosure.
- Engineered for industrial applications, it has wide operating temperature range from-20℃ to 70℃, and guarantees more than 50000 hours of MTBF.
- It’s a compact box pc that has strong connections.
- It comes with dual Gigabit network, 2.4GHz & 5GHz Wi-Fi/Bluetooth 5.0 ,12 B key (USB3.0) for 4G module/5G Module/, 1xM.2 M key (PCIE)for SSD expansion,
- 0,2XUSB2.0,1XHDMI ,1xaudioin,1xaudio out,2xDI,2xDO,1xRS485,1xCANFD,1xPWR Button.
Main Features
- SoM Unit:
- CPU
- 2x or 4x Cortex A53 up to 1.8GHz
- 1x Cortec M7 up to 800MHz
- 375 Mpixel/s HDR ISP
- GC7000UL with OpenCL and Vulkan support
- Video Decode and Encode
- Optional 2.3 TOP/s NPU
- Memory: Up to 8GB LPDDR4 RAM (2GB default)
- Storage: 4~64GB eMMC(16GB default)
- CPU
- Support boot from eMMC, Micro SD and SPI Nor Flash;
- Support Yocto,provide uboot,kernel,filesystem source code;
- Including dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0;
- Rich External I/O
- 1x USB 3.0, 2x USB 2.0,1x RS485, 1xRS232, 1xCANFD, 2 x DI, 2 x DO,
- 1xHDMI,1xAudio IN,1XAudio Out
- 1xSIM Card Slot,1xTF Card Slot,1xAnt
- 2xGigabit network
- Rich Internal I/O
- 2 B Key(USB3.0)for 4G module/LoRa module/network card
- 2 M Key (PCIE)For 512GB/1TB SSD;
- 2xRS232,14PIN GPIOs,LVDS,USB2.0X3,IIC,etc…

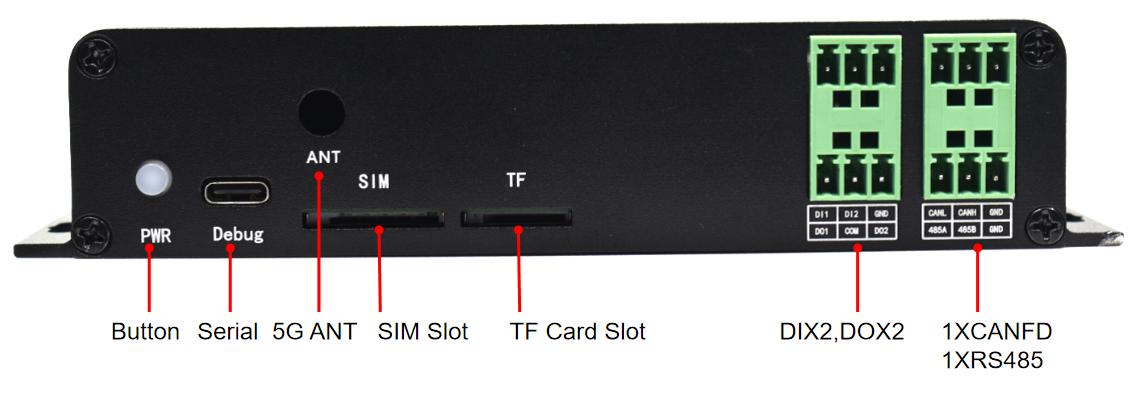

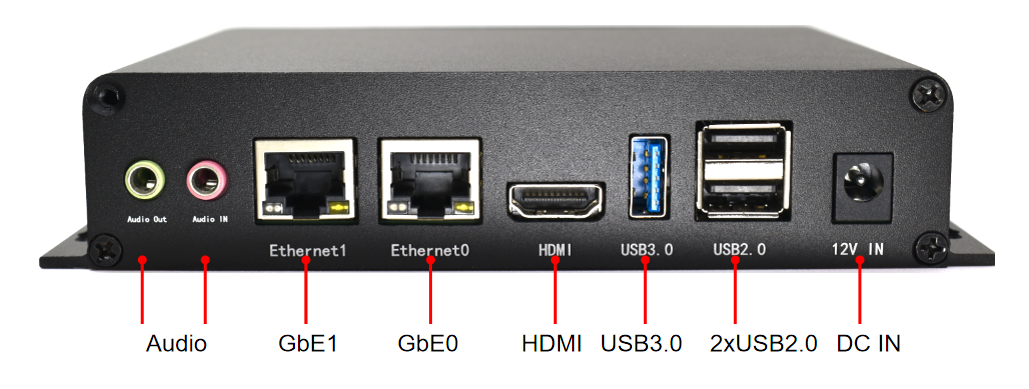

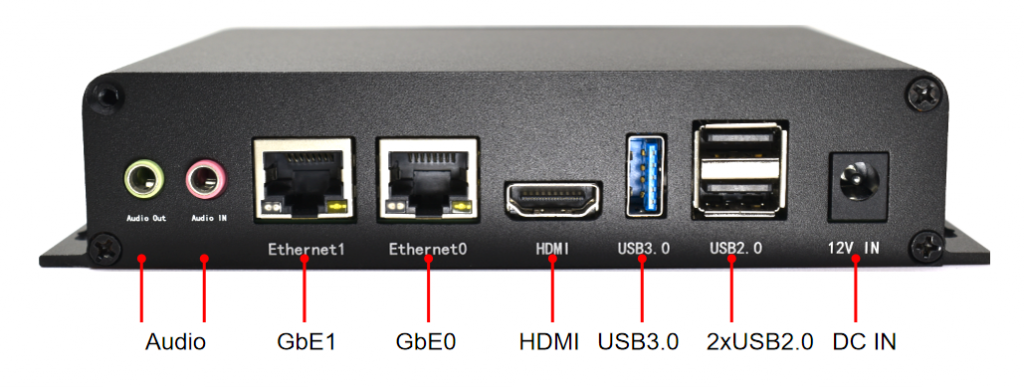

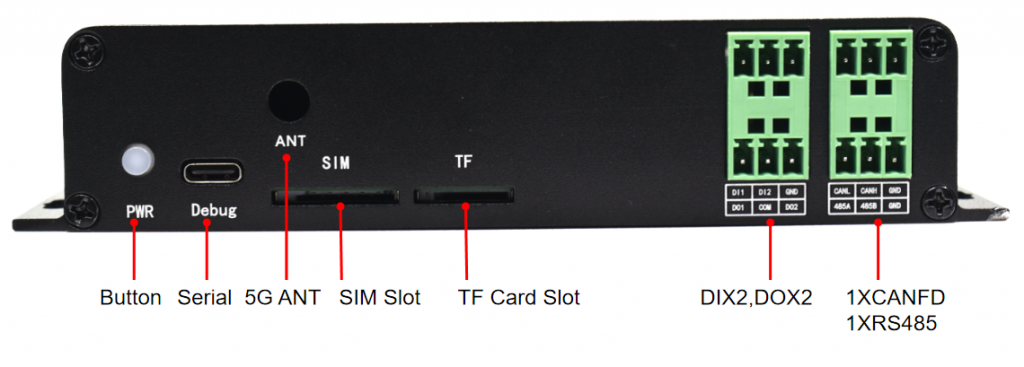

I/O Interfaces and Dimension:
Specification
| System Unit | |
| CPU Performance | 2x or 4x Cortex A53 up to 1.8GHz
1x Cortec M7 up to 800MHz 375 Mpixel/s HDR ISP GC7000UL with OpenCL and Vulkan support Video Decode and Encode Optional 2.3 TOP/s NPU |
| Boot | Support boot from eMMC/ Micro SD /SPI Nor Flash |
| OS | Yocto LINUX-5.15.32, Uboot/Kernel/Dirver/Filesystem/ Open Source |
| Memory | Onboard 2GB LPDDR4 (1GB/4GB/6GB/8GB optional) |
| Storage | 16GB eMMC (8GB/16GB/32GB/64GB/128GB/256GB optional) |
| SSD | 512GB/1TB Optional |
| Ethernet/Wireless | |
| Ethernet | 2 x Independent MAC Gigabit RJ45 port |
| WIFI & BT | 2.4GHz & 5GHz Wi-Fi /Bluetooth 5.0, Support external SMA antenna(Share with 4G/5G/LORA/) |
| 4G/5G | M.2 B Key(USB3.0) |
| Video & Audio | |
| Display | 1 x HDMI output, Type-A female socket
LVDS(Internal) 2xMIPI-CSI(Internal) |
| Audio | Audio IN/Out ,3.5mm socket |
| Expansion | |
| DC IN | 1 x Power socket for 5.5mm x 2.1mm plug |
| USB | 1 x USB 3.0 Host
2 x USB 2.0 Host |
| Serial Ports | 1xRS232
2xRS232(Internal) 1xRS485 1xCAN |
| GPIO | 2 x Isolated DI
2 x Isolated DO |
| Internal I/O | |
| SIM Slot | 1 x Built-in Micro SIM slot, push pop-up slot |
| SD Slot | 1 x Built-in Micro SD slot, push pop-up slot |
| M.2 B Key(USB3.0) | Support 4G/5G module such as Quectel 4G module, built-in SIM card, etc. |
| M.2 M Key(PCIE) | l Support LoRa module
l Support other expansion such as network card, SATA and serial port |
| Power Supply | |
| Power Input | DC 12V power input for default |
| Mechanical & Environmental | |
| Enclosure Material | Steel and aluminum alloy |
| Dimension | 138.49(L)mm x114(W)mm x 32(H)mm |
| Operating Temp. | -20℃~+70℃ (industrial grade) |
| Relative Humidity | 10%~90% |
Order Information
| Part Number | CPU | NPU | LPDDR4 | EMMC | WIFI/BT | Temperature | Price@1k | 100PCS | 30PCS | MOQ |
| EC-IMX8MP-L216CW | MIMX8ML8CVNKZAB | Yes | 2GB | 16GB | Yes | 0°C-70°C | USD209 | USD239 | USD279 | 1 |
| EC-IMX8MP-L432CW | MIMX8ML8CVNKZAB | Yes | 4GB | 32GB | Yes | 0°C-70°C | USD199 | USD279 | USD299 | 1 |
Packing List:
- 1xEC-IMX8MP Edge Computer
- 1x12V@2A Power Adapter
- 1x Antenna
- 1xSerial Debug
- 1xHeatsink
