Description
1 Overview
- The SOM-ET6ULL BB is a baseboard that designed by Emtop tech for the SOM board SOM-ET6ULL.
- It features a lot of rich and flexible interfaces Can be used for the customers to develop their user programs, verify their expected functions and shorten product development cycle.
- The optional that with a box that can be used directly by the customer, or they can be customized a box and used this Kit directly for the productions.
2 Specification
2.1 SOM-ET6ULL
Electrical Parameters
- Working Temperature：
- 0°C~ 70°C（Commercial）
- -45°C~ 85°C（Industrial）
- Ambient Humidity：20% ~ 90%, non-condensing
- Mechanical Dimensions：60mm x 27mm
- Power Input：5V,1.8V/3.3V
Processor
| Feature | Details |
| SOM-i.MX6ULL | |
|
Arm Cortex-A7 MPCore platform |
Single ARM Cortex-A7 MPCore,
including: • 32 KB L1 Instruction Cache • 32 KB L1 Data Cache • Media Processing Engine (MPE) Co-processor • General Interrupt Controller(GIC) • Global Timer • Snoop Control Unit • Target frequency of 800MHz |
| Audio | • S/PDIF Input and Output
• SAI modules supporting I2S,AC97,TDM |
| On-chip memory | • Boot ROM (96KB)
• Secure/non-secure RAM (32KB) |
Memory and storage
| DDR SDRAM | • 512MB DDR3 SDRAM (16-bit bus width)
• Maximum 1GB support • 800MHz maximum DDR clock |
|
eMMC
|
• 4GB eMMC flash memory default
• 8-bits MMC mode • 4~32GB storage option • Nand or eMMC + SPI option • 256MB ~ 4GB storage option |
| Expandable flash (MicroSD) | • Meets SD/SDIO 3.0 standard Runs at 4-bits
• Supports system boot from SD card • Supports high-capacity SDXC card up to 2TB |
Network & Wireless
| Ethernet | • 10/100 Mbps Ethernet Controller
• Up to 2 MAC (6G2, 6G3 Only) |
Hardware Interface
|
I/O connectivity |
• 5x UART
• 2x ENET • 1x SDIO • 1x JTAG • 10x GPIOs • 10x SNVS_TAMPER • 2x OTG |
| Display Interfaces | • 24bits RGB LCD |
| Camera | • 8Bit CSI |

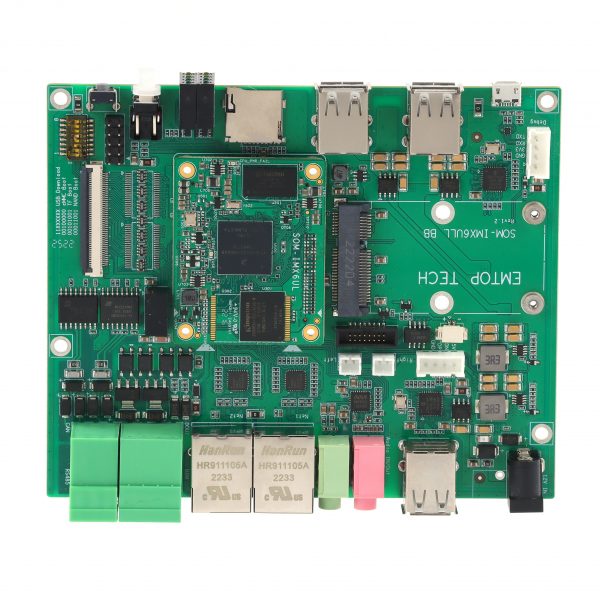

2.2 SOM-ET6ULL BB Carrier Board
Electrical Parameters
- Working Temperature：
- 0°C~ 70°C（Commercial）
- -45°C~ 85°C（Industrial）
- Ambient Humidity：20% ~ 90%,non-condensing
- Mechanical Dimensions：135mm x 110mm
- Power Input：12V/2A Maximum
Connectivity
- 2x 80Pin BTB Connector
- 12V Power Input;
- 6x USB 2.0 Host
- Audio Input/Output
- 2x 1W Audio Output
- 2x 10/100Mbps Ethernet
- 1x RS385
- 1x CAN
- 2x DI
- 2x DO
- 1x 24Bits RGB LCD
- 1x TF Card Connector
- 1x MINI PCIe (For 4G module only)
- 1x SIM Card
- 1x MicroUSB Connector (For updated only)
- 1x 16Pin Extension Interface Include SPI, I2C and UART
- 1x 2.54mm Pin header for UART
- 1x 2.50mm Box header for Debug

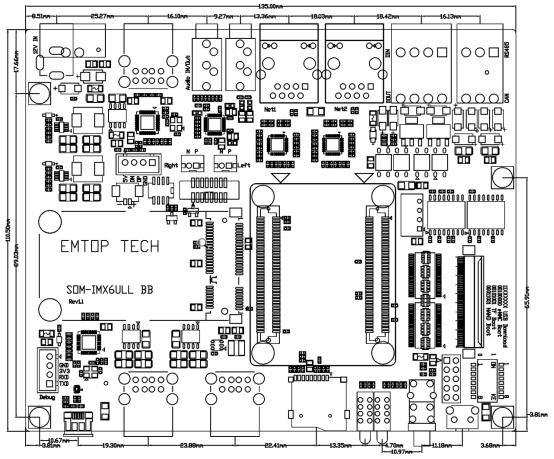

3 Mechanical Dimension
4 Order Information
| Part No. | Memory | Flash | Operating Temperature |
1K Units | MOQ |
| SBC-IMX6ULL-E4C | 512MB | 4GB EMMC | 0-70° | USD 89 | 1 |
| SBC-IMX6ULL-E4I | 512MB | 4GB EMMC | -45-80° | USD 99 | 1 |
