SOM-IMX8MM

$109.00$119.00

NXP i.MX8M MINI System On Module,Provide BSP Source Code/System Image/English UserManual/Readymade Yocto Build Enviroment/

Wiki: http://wiki.emtop-tech.com/pages/viewpage.action?pageId=5734543

Documents

No payment method connected. Contact seller.

1 General:



  • The IMX8M-MINI System-On-Module (SOM) board is based on NXP’s energy efficient i.MX 8M Mini processor which has up to 4 x Cortex-A53 cores capable at running up to 1.8 GHz and one Cortex-M4 core capable at running up to 400 MHz core for low-power and real-time operation.
  • Support Linux kernel, Yocto Project file-system, Debian(Still on working) and Android(Still on working) run on the Cortex-A core, and Real-time OS such as UCOS and FreeRTOS run on the Cortex-M core.(Provide Linux And Yocto BSP and Open source)
  • Comes with detailed user manual, ready-made system, and friendly technology support.
  • We are able to provide customize based on this SOM module for various application.

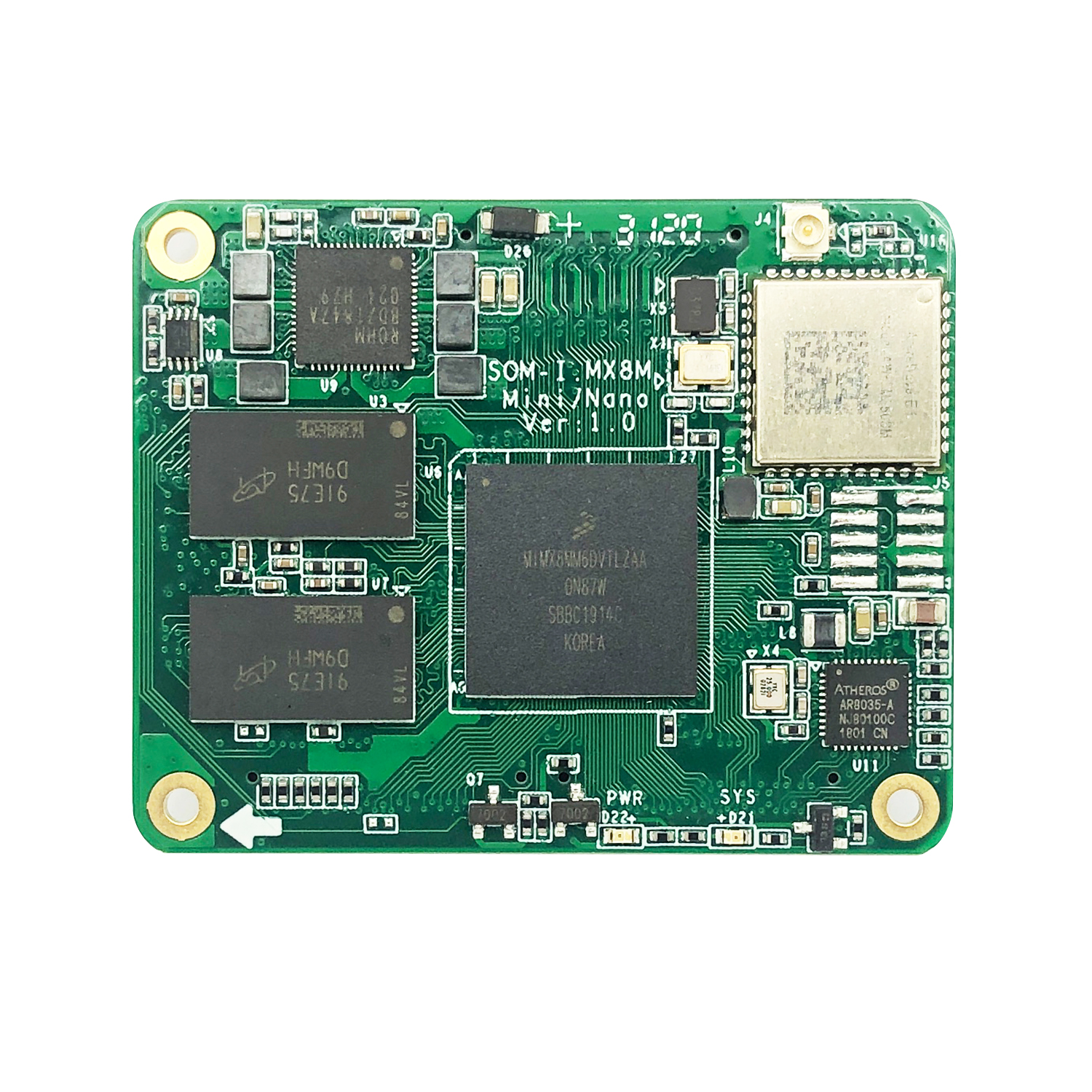

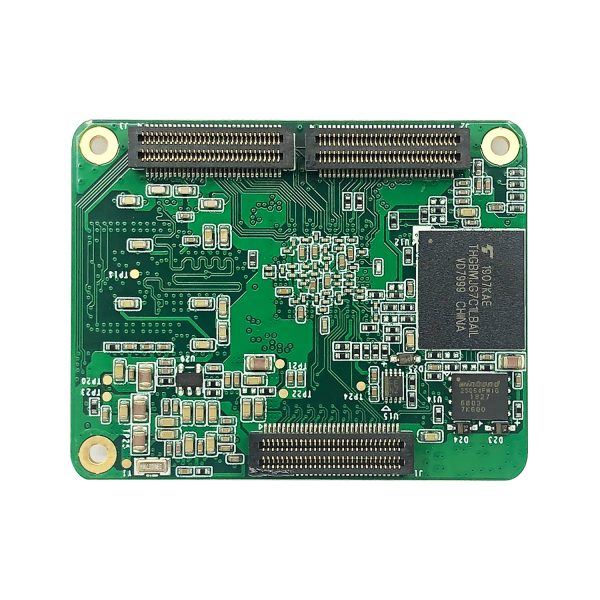

2 SOM-IMX8M Description:

  • NXP i.MX8M MINI SOC

    • Quad-core ARM Cortex-A53, plus Cortex-M4(JTAG RESERVE)
    • 64-bit Armv8-A architecture
    • 2D/3D GC520L
    • Media Processing Engine (MPE) with NEON technology
    • Floating Point Unit (FPU) with support of the VFPv4-D16 architecture
    • Target frequency up to 1.8GHz
  • Wi-Fi 1×1(802.11b/g/n/ac 2.4/5GHz) Bluetooth 5.0

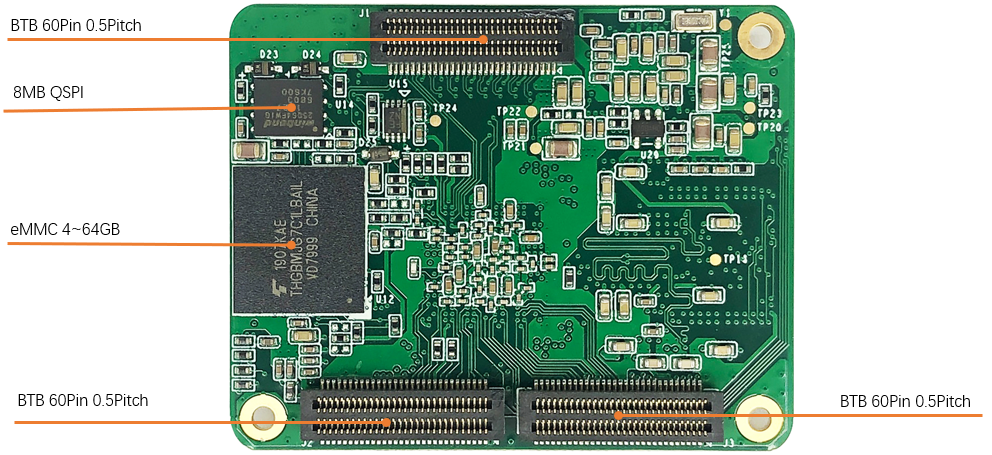

  • From 8G to 64GB eMMC(On board 16GB EMMC)
  • From 1G to 4GB DDR4(On Board 4GB EMMC)
  • 64M bit Quad SPI Flash on-board(On board 64MB SPI FLASH)

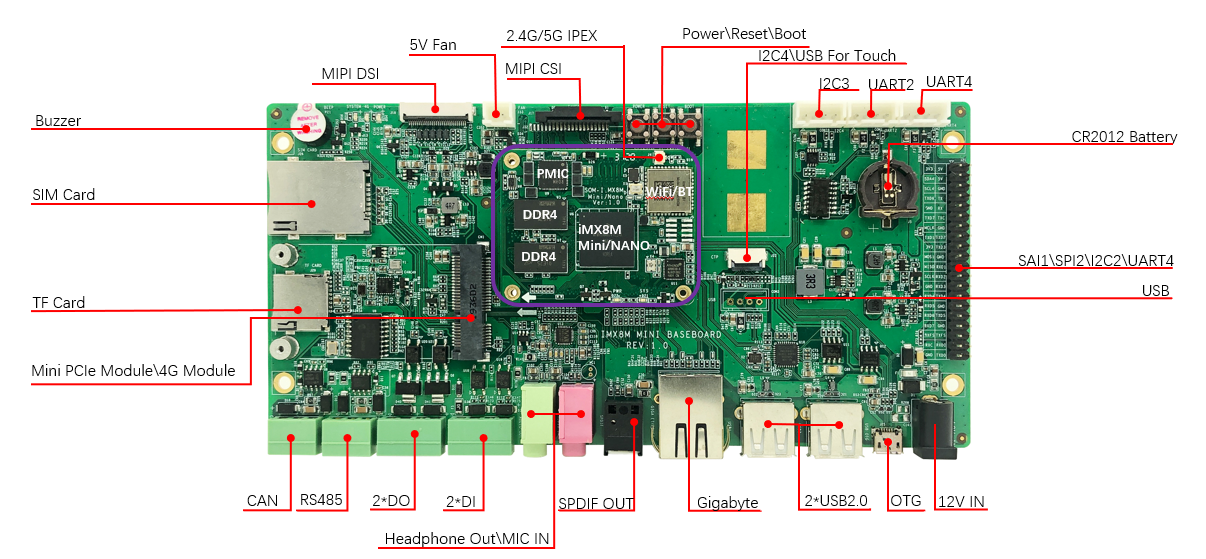

3 SBC-IMX8MM, NXP i. MX8M MINI Starter Kits Interface
