Description
Product Overview

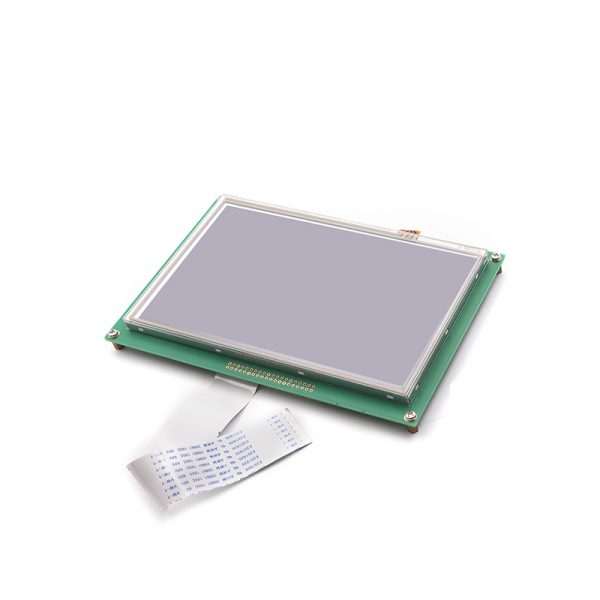

LCD6000-70T LCD module is composed of Innolux 7 inch LCD (AT070TN83 V.1 with touch screen).
- Screen size: 7 Inch
- 4 Wire resistive touchscreen
- Shape size (W * H): 181.0mm * 120.0mm
- Viewfield size (W * H):168mm * 112mm
- Resolution: 800 * 480
- Operating temperature: -10~60 C
- Storage temperature: -20~70 C
- Electrical Indicators: Support 5V power input, typical power consumption 3.5W With or without touch screen: with touch screen
Applications
- Imaging, Video & Vision
