SBC-IMX8MM-LPD4

Description

Description:

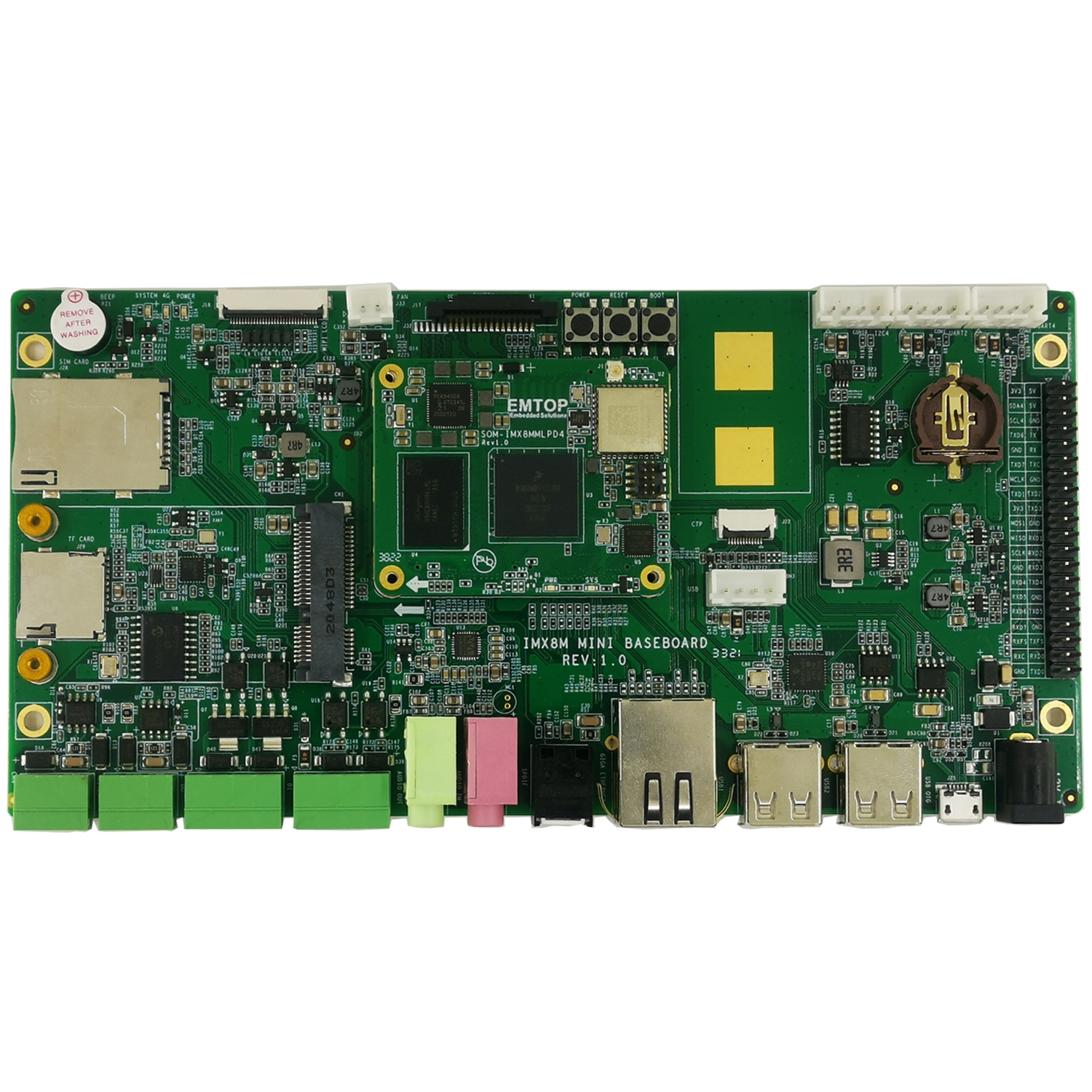

SBC-IMX8MM-LPD4 is a single board computer for i.MX8M MINI.

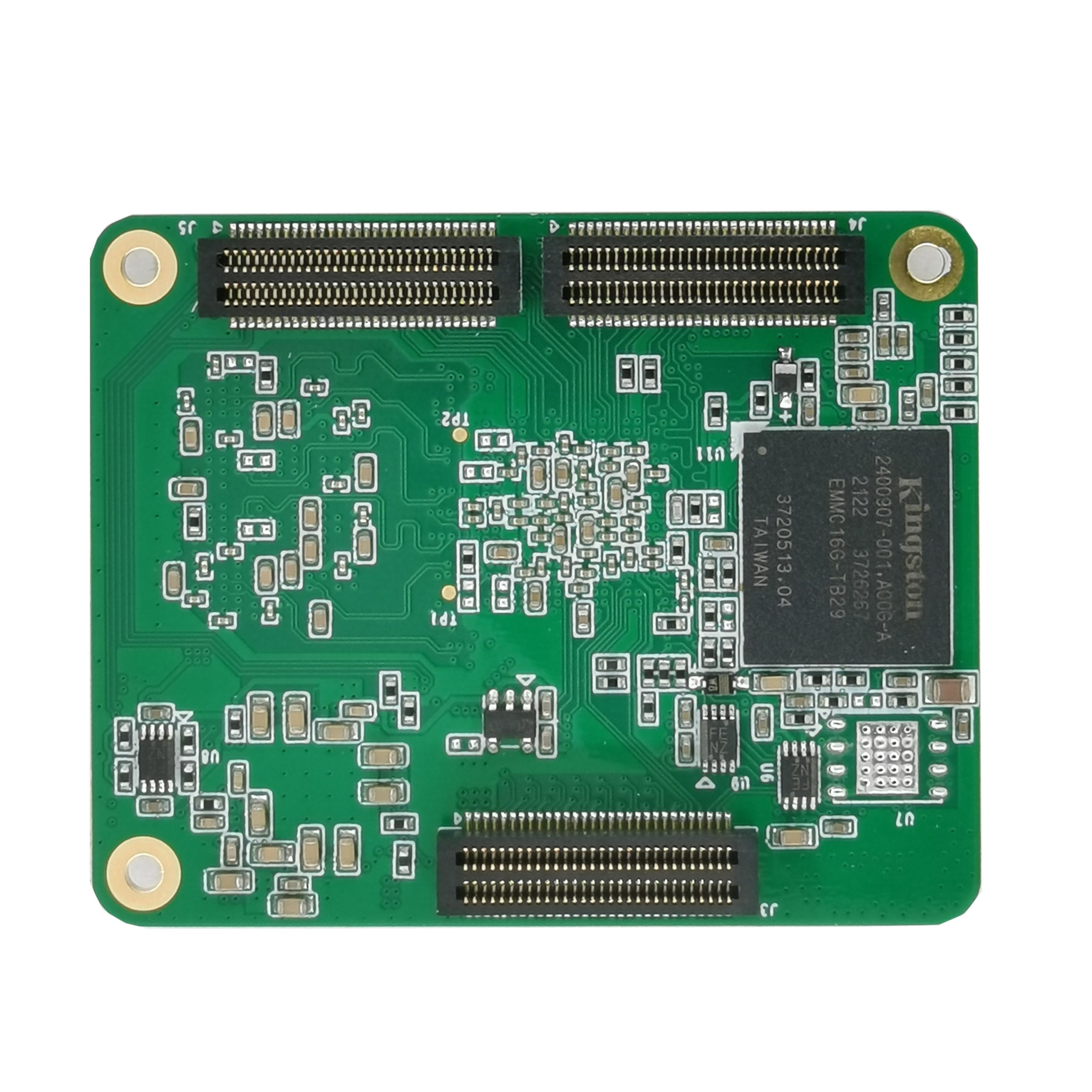

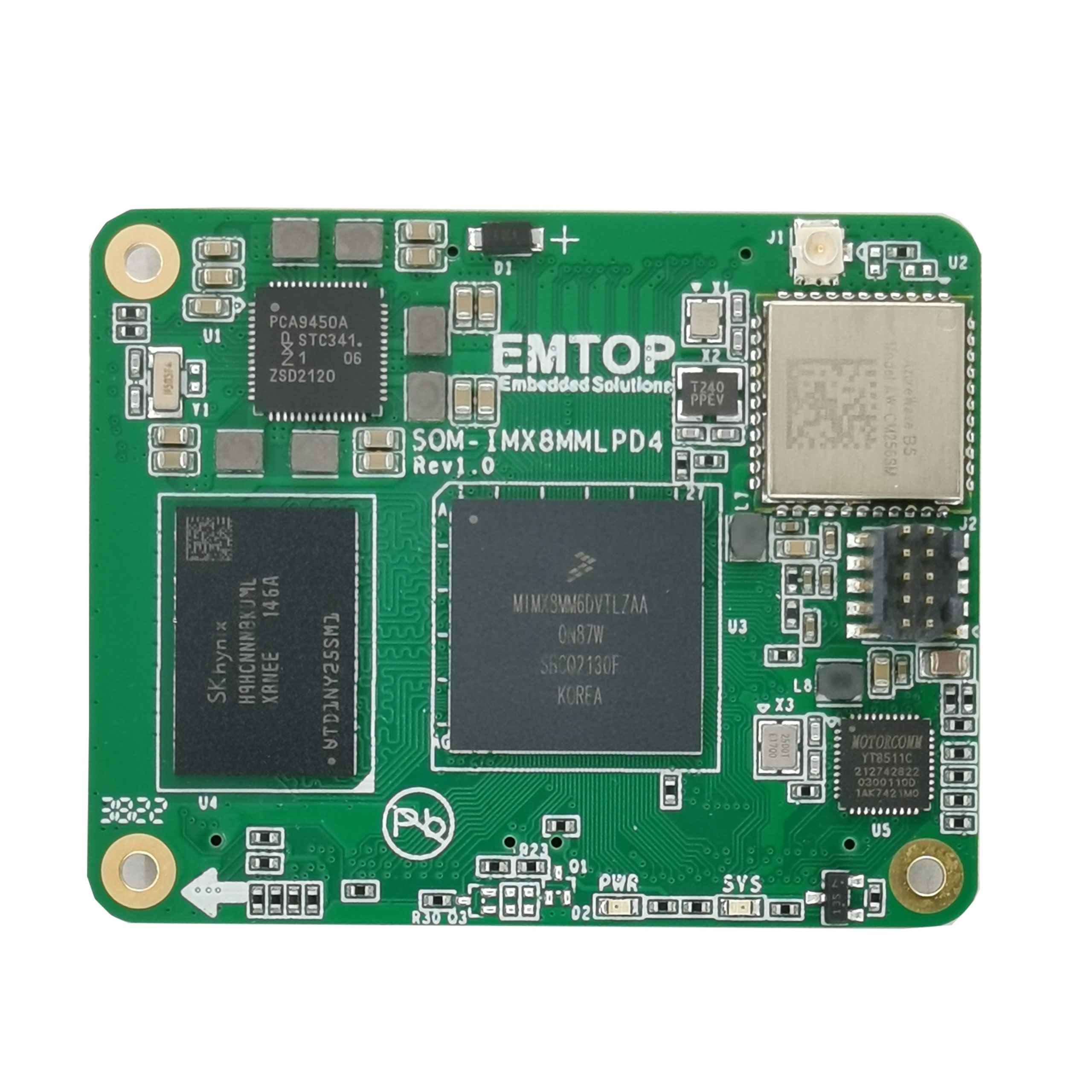

The SOM-IMX8MM LPD4 System-On-Module (SOM) board is based on NXP’s energy efficient i.MX 8M Mini series processor. For i.MX 8M Mini/Nano series processor is which has up to 4 x Cortex-A53 cores capable at running up to 1.8 GHz and one Cortex-M4 core capable at running up to 400 MHz core for low-power and real-time operation.

On-board up to 8GB LPDDR4, up to 64GB eMMC and a WiFi / Bluetooth module, and with MIPI DSI display transmitter, MIPI CSI camera receiver, flexible audio interfaces and comprehensive communication features. The SOM-IMX8MM LPD4 Module is a fully-integrated system that helps you build your professional embedded systems rapidly.

Support Linux kernel, Yocto Project file-system, Debian and Android run on the Cortex-A core, and Real-time OS such as UCOS and FreeRT OS run on the Cortex-M core.

Comes with detailed user manual, ready-made system, and friendly technology support. We are able to provide customize based on this SOM module for various applications.

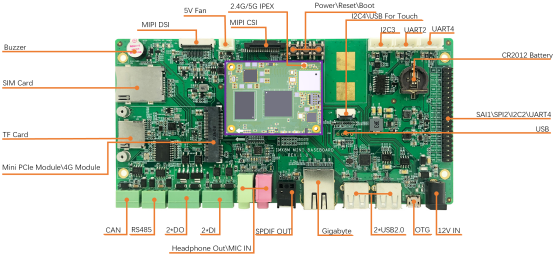

Carrier Board Interface：

• USB0 Host x 2
• USB OTG x 1
• 12V Power IN x 1
• Up to 77xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)
• USB 2.0 Host (4 Pin Connector) x 1
• UART:
  • UART2  (TTL, For Debug)
  • UART3  (TTL, For User)
  • UART4  (TTL, For User)
• I2C x 3
• USB Touch x 1
• MIPI-CSI-2 x 1
• Fan 5V port x 1
• MIPI-DSI x 1
• Buzzer x 1
• SIM Card x 1
• TF Card x 1
• Mini PCIE Interface x 1, For 4G module and PCIE module
• CAN Bus x 1
• RS485 Bus x 1
• Input Terminal x 2 PIN (With Isolation)
• Output Terminal x 2 PIN (With Isolation)
• Headphone Output/MIC In x 1
• SPDIF Out x 1
• 1xGigabit Ethernet on-board

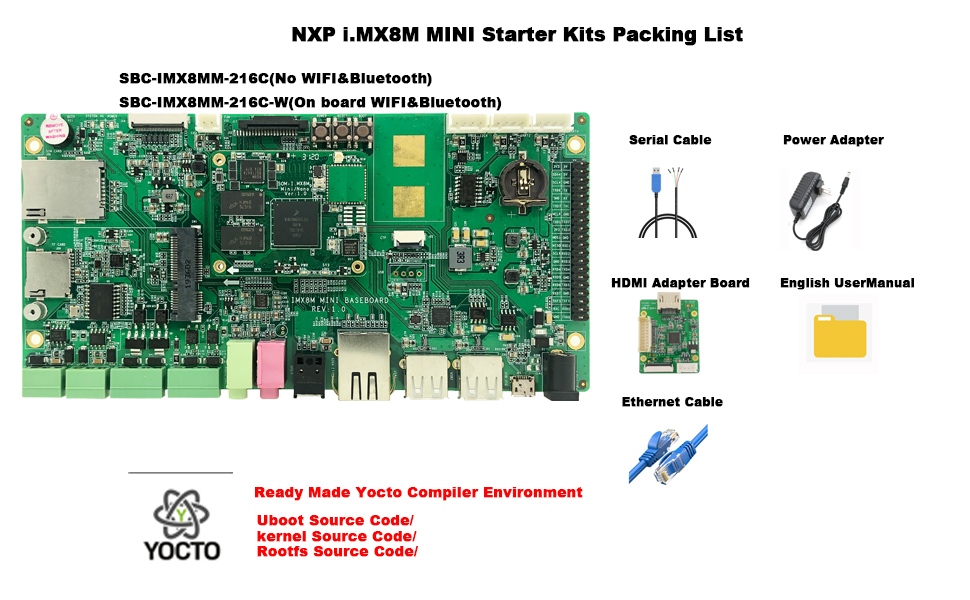

Packing List：

• SOM-IMX8M-LPD4
• Carrier Board
• Serial Cable
• Ethernet Cable
• Power Adapter
• MIPI To HDMI Adapter
