Description

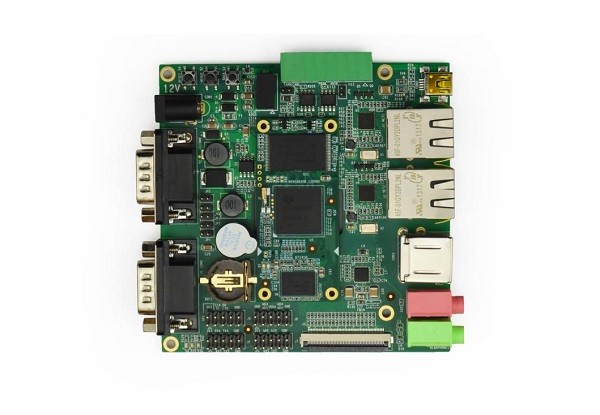

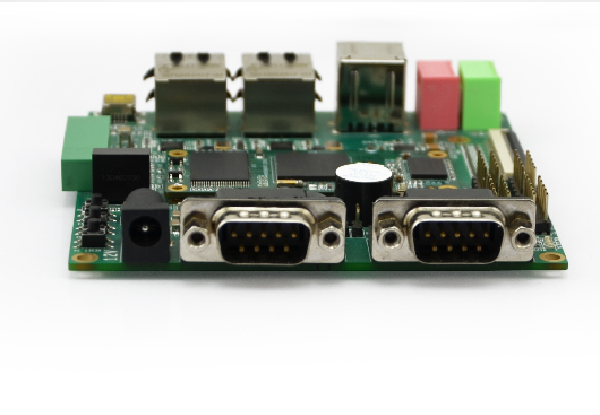

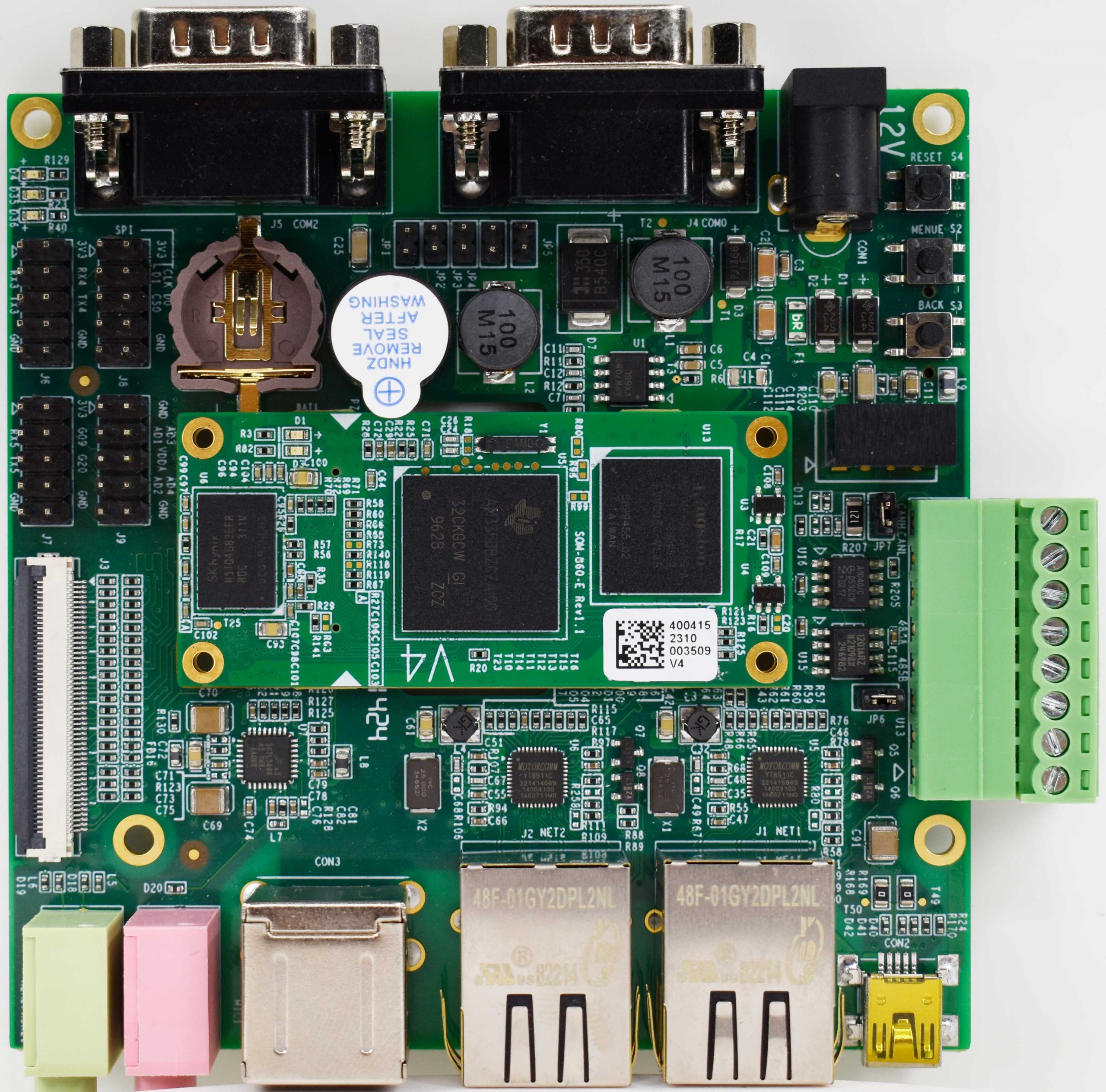

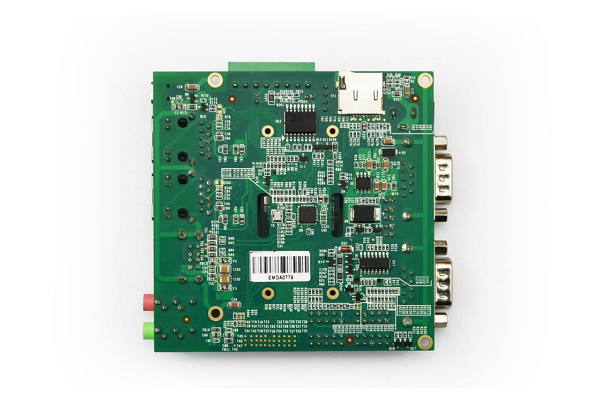

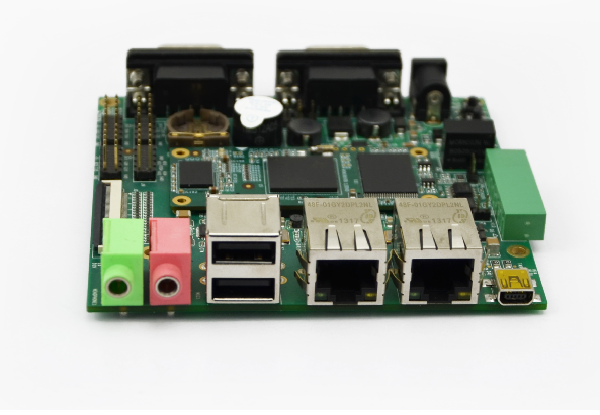

SBC8600E

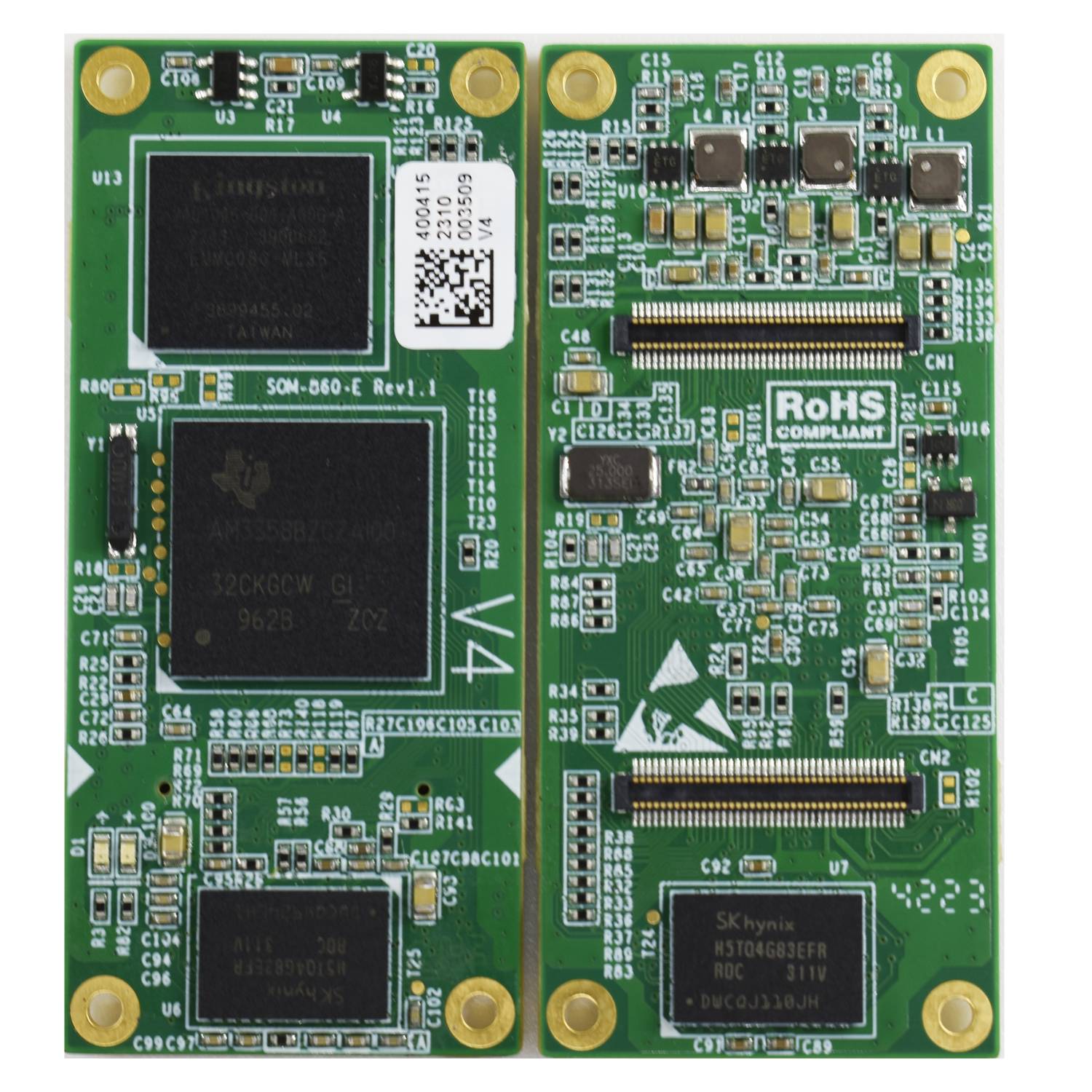

System On Module:
Data transfer interface:
-
Two 10/100/1000Mbps Ethernet interfaces (only one network port is supported in WinCE 7 system at this time)
-
A CAN 2.0 interface and an RS485 interface (8 Pin Phoenix Terminal Connector)
-
A USB 2.0 High-Speed OTG Portswith Integrated PHY (480Mbps, Mini USB interface)
-
Two USB 2.0 High-Speed HOST Portswith Integrated PHY (480Mbps, USB-A interface)
-
A TF card interface (SD/MMC compatible, 3.3V logic)
-
Serial port:
-
UART0, RS232 level, DB9 debug serial port
-
UART2, RS232 Level, DB9 Common Serial Port
-
UART3, 3.3V TTL level, needle alignment
-
UART4, TTL level, needle alignment
-
UART5, TTL level, needle alignment
Audio/video interface:
-
LCD/touch screen interface (24-bit data RGB full color output, 50-pin FPC connector)
-
An audio input interface (3.5mm audio interface)
-
A dual channel audio output interface (3.5mm audio interface)
Transport interface:
-
Two custom keys (MENU, BACK)
-
A reset key
LED：
-
A power indicator
-
Two user defined lights
Electrical characteristics:
-
Working temperature: 0 ° C ~ 70 ° C
-
Ambient temperature: 20% – 90%, non condensing
-
Mechanical dimension: 96mm x 96m
-
Input voltage: 12V
