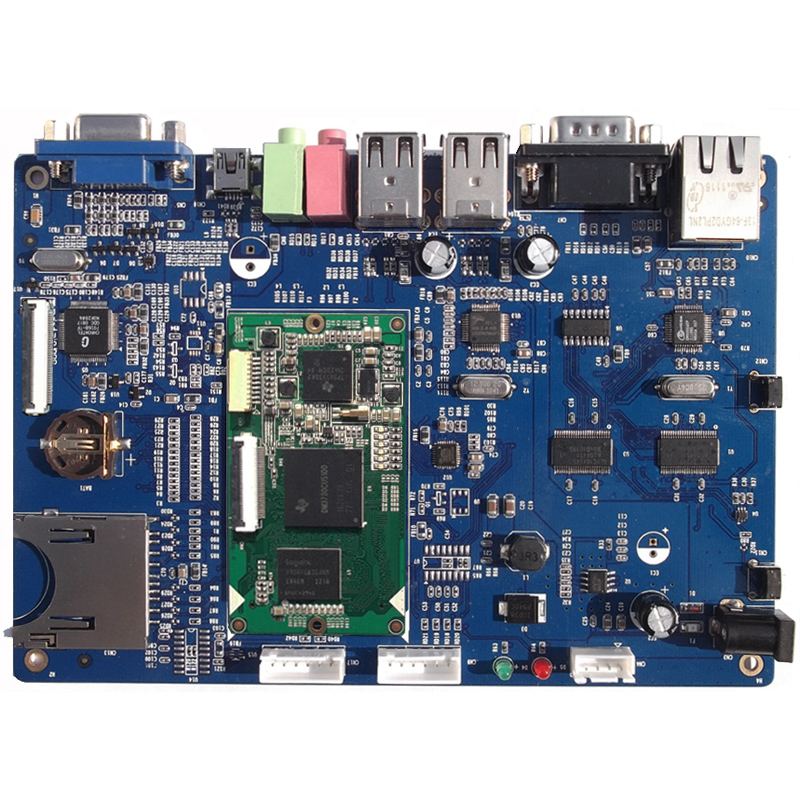

SBC8140 Single Board Computer

Original price was: $249.00.Current price is: $219.00.

Features:

  • TI DM3730CUSA
  • 512MByte DDR SDRAM, 166MHz
  • 512MByte NAND Flash, 16bit

Github:

  • https://github.com/EMTOP-TECH/MINI8510

Product Documents

3 in stock

x
Category: SKU: SBC8140 Tags:

Description

Kit Features

Hardware Features:

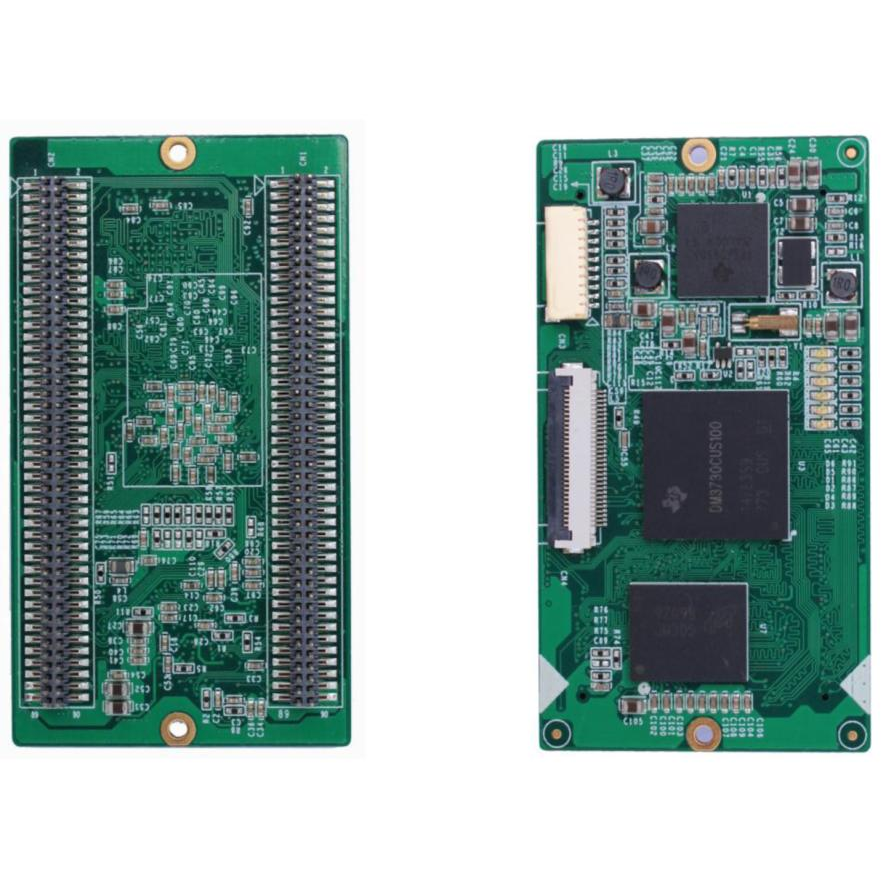

  Mechanical Parameters

  • Dimensions: 67 mm x 37 mm
  • Power Consumption: 1A @ 3.3V
  • Temperature Range: 0 ~ 70 Celsius
  • Temperature Range: 20% ~ 90%

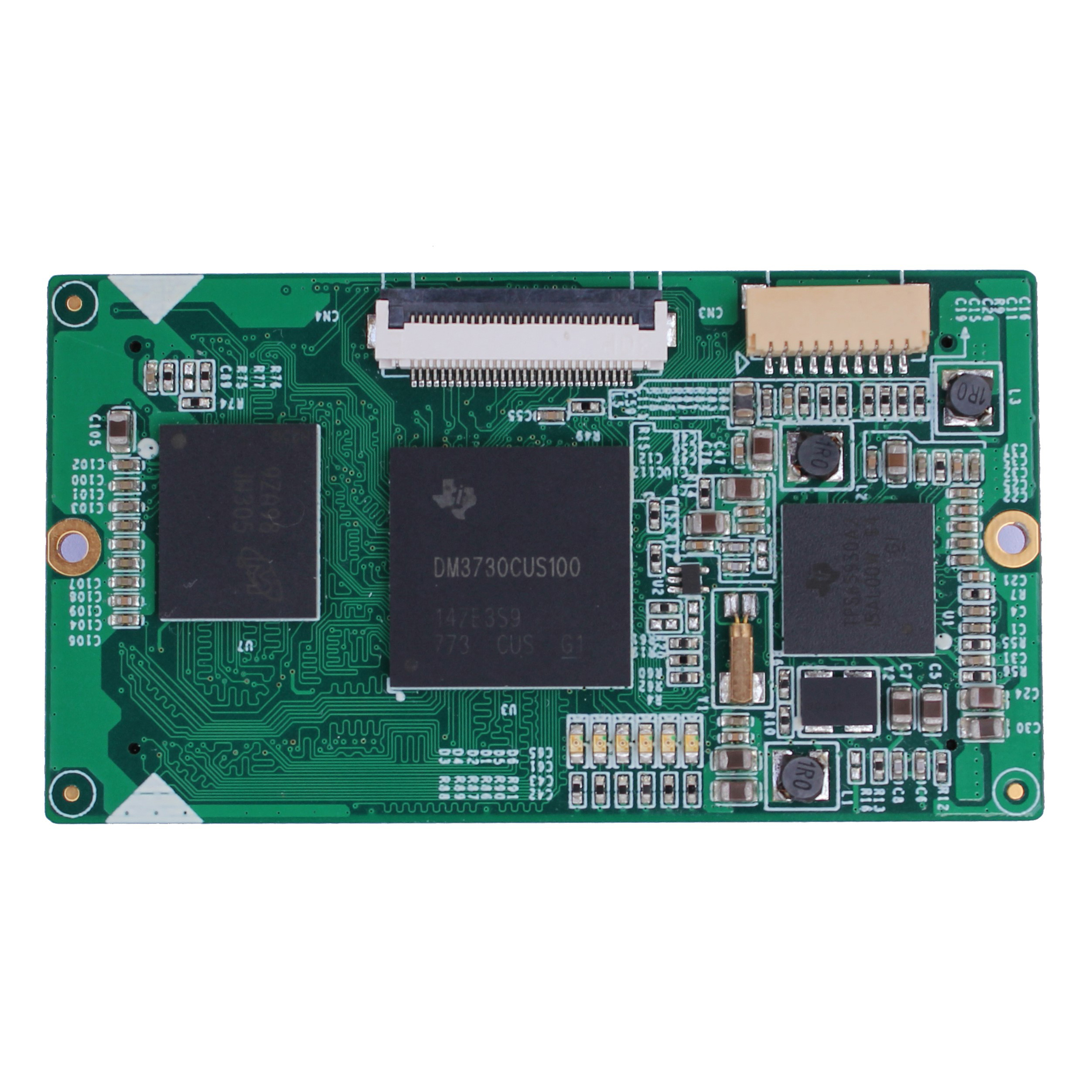

  Processor

  • TI DM3730CUSA DaVinci Digital Media Processor, 1GHz ARM Cortex-A8 Core, 800-MHz TMS320C64x+™ DSP Core (pin-to-pin compatible with TI AM3715)

Memory

  • 256MByte DDR SDRAM, 166MHz
  • 512MByte NAND Flash, 16bit

  Input Interface

  • 12-bit Camera interface (30-pin FPC connector, support CCD or CMOS camera)
  • 1-channel 4-wire JTAG interface (10-pin 1.0mm pitch connector)
  • 6 LEDs (programmable status LEDs)
  • 2-channel SPI
  • GPMC bus (16-bit data bus, 10-bit address bus, 4 chip-selection signals and several control signals)
  • 3-channel 5-wire UARTs
  • 1-channel ULPI (USB1 HS)
  • Audio in/out
  • 1-channel I2C
  • 2-channel McBSP (McBSP1 and McBSP3, McBSP3 is multiplex with UART2)
  • 2-channel SD/MMC: MMC1 (8-wire), MMC2 (4-wire)
  • 24-bit DSS interface

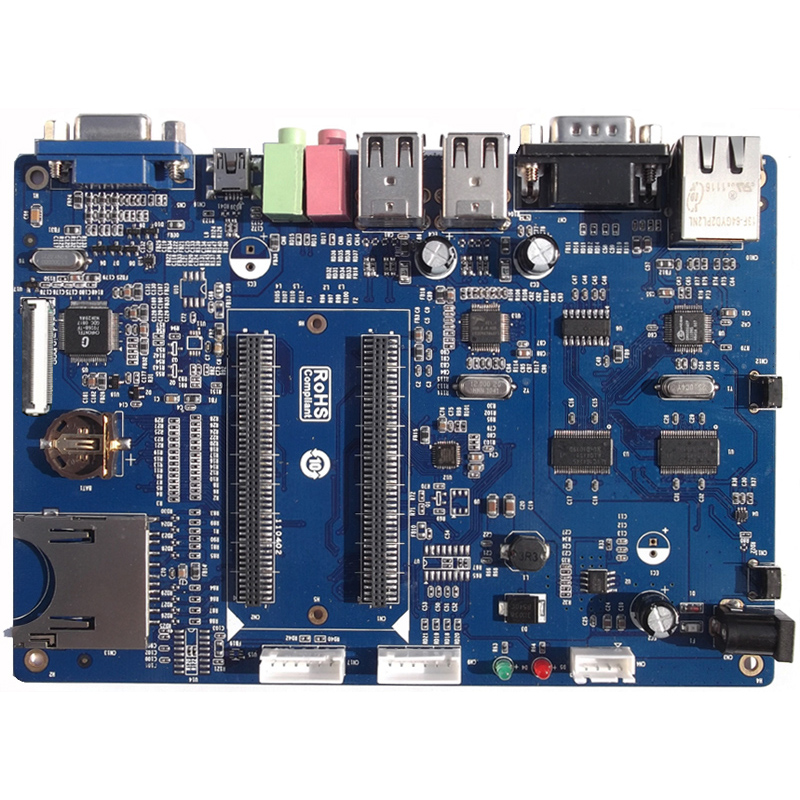

Mechanical Parameters

  • Dimensions: 165.00 mm x 115.00 mm
  • Input Voltage: +5V
  • Temperature Range: 0 ~ 70 °C
  • Humidity Range: 20% ~ 90%

  Audio/Video Interfaces

  • Audio input interface
  • A two-channel Audio output interface
  • A TFT LCD interface, resolution supporting up to 2048*2048
  • 4 line Touch Screen
  • Standard VGA interface, resolution supporting up to 1024*768

  Data Transfer Interface

  • Serial port:
    • 5 line Debug serial port, RS232 voltage (UART1, via DB9 connector)
    • 3 line serial port, TTL voltage (UART2, via 6-pin connector)
    • 5 line serial port, RS232 voltage (UART3, via 6-pin connector)
  • USB port:
    • USB2.0 OTG, High-speed, 480Mbps (Mini-USB connector)
    • Four USB2.0 Hosts, High-speed, 480Mbps (USB A Type)
  • SD card slot
  • Ethernet: 10/100Mbps, RJ45 connector

  Input Interface

  • BOOT button
  • RESET button
  • Two USER buttons
  • Power indicator

Software

The SBC8140 Single Board Computer is provided with Windows CE 6.0.net BSP and Linux 2.6.32 BSP with steady-going drivers, many of which are all in source code. Please refer to below table.

OS

Item Feature
Description

Linux

Boot

Version

X-loader-1.41 U-boot 1.3.3

Boot Mode

Boot Linux from SD card, NAND Flash or Ethernet

Image update

Support updating image from SD card or Ethernet

Logo update

Support updating logo

Kernel and drivers

Version

Linux 2.6.32

File System Format

ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS

Driver

Serial, RTC, Net, Flash, LCD, Touch screen, VGA, Audio In/Out, SD, USB Host, USB OTG, Key, LED, 2D/3D, Power Management (backlight)

File System

File System Format

Ramdisk File System, UBI File System

function

Provided Lib (ALSA -lib, tslib, glibc), udev support

WinCE

Boot

Version

x-load-1.41, eboot

Boot Mode

Boot WINCE from SD card or NAND Flash or Ethernet

Image update

Support updating image from SD card or Ethernet

System

Characteristics

KITL kernel debug, Reboot, Watchdog, RTC

Driver

Serial, RTC, Net, Flash, LCD, Touch screen, VGA, Audio In/Out, SD, USB Host, USB OTG, Key, LED, 2D/3D, Power Management (backlight, PWM, ADC)

Application module

Flash Player plug-in and Flash player

MP3/MPEG4/H264 DSP hardware decoder









































Kit Contents


The Embest SBC8140 single board computer is supplied with below contents:

  • SBC8140 Single Board Computer
  • Serial cable (DB9-to-DB9)
  • 5V@2A Power adapter
  • 10-pin JTAG cable
  • JTAG board(convert 10Pin to 14 pin JTAG interface)
  • Optional TFT LCD Display Module
    • 4.3 inch TFT LCD (With Touch panel)
    • 7 inch TFT LCD (With Touch panel)
