  • EMTOP System-On-Module board SOM-IMX8MM based on NXP’s energy efficient i.MX 8M Mini series processor;
  • On-board 2GB DDR4,  16GB eMMC;

SOM-IMX8MM,NXP i.MX8M Mini System On Module
SOM-IMX8MM,NXP i.MX8M Mini System On Module



Feature

Details

i.MX8M MINI SOC

Arm Cortex-A53 MPCore platform

Quad symmetric Cortex-A53 processors, including:

• 32 KB L1 Instruction Cache

• 32 KB L1 Data Cache

• Media Processing Engine (MPE)

• Floating Point Unit (FPU)

Support of 64-bit Armv8-A architecture

• 512 KB unified L2 cache

• Target frequency of 1.8GHz

Arm Cortex-M4 core platform

• 16 KB L1 Instruction Cache

• 16 KB L1 Data Cache

• 256 KB TCM

Graphic Processing Unit (GPU)

• GC NanoUltra frequency up to 800 MHz

• OpenGL ES 2.0

• 2D GC520L

Video Processing Unit (VPU)

• VP9,VP8,AVC,H.265,H.264 decoder

• VP8, AVC,H.264 encoder

Audio

• S/PDIF Input and Output

• SAI modules supporting I2S,AC97,TDM

On-chip memory

• Boot ROM (256KB)

• On-chip RAM (256KB + 32KB)

Memory and storage

DDR SDRAM

• 2GB DDR4 SDRAM (32-bit bus width)

• 1200MHz maximum DDR clock

• Interfaces directly to the iMX8M MIPI build-in DDR controller

eMMC

• 16GB NAND eMMC flash memory

• 8-bits MMC mode

• Conforms to JEDEC version 5.0 and 5.1

SPI Flash

• 64M bit SPI flash memory

• 104MHz Single, Dual/Quad SPI clocks

• More than 100,000 erase/program cycles

• More than 20-year data retention

Expandable flash (MicroSD)

• Meets SD/SDIO 3.0 standard Runs at 4-bits

• Supports system boot from SD card

Network & Wireless

Ethernet

• On-board 10/100/1000 Mbps Ethernet PHY

Wi-Fi(Options)

AzureWave AW-CM256SM module:

• Wi-Fi 1×1 (802.11a/b/g/n/ac 2.4/5GHz)

• SDIO 3.0

• High speed wireless connection up to 433.3Mbps

Bluetooth(Options)

AzureWave AW-CM256SM module:

• Bluetooth 5.0 (supports Bluetooth low-energy)

• High-speed UART

• PCM audio

Hardware Interface

I/O connectivity

• 1x single lane PCI Express Gen 2

• 2x USB2.0 OTG with integrated PHY

• 1x SDIO supporting MMC 5.1, SDIO 3.01

• 1x Gigabit Ethernet with integrated PHY

• 3x UART

• 3x I2C

• 2x ESPI

Display Interfaces

• 4-lane MIPI DSI interface

Camera

• 4-lane MIPI CSI interface



Names

Note

Formats

BOOTLOADER

U-BOOT

MMC/SD

Source Code

FAT

Source Code

NET

Source Code

KERNEL

LINUX-5.4

Support ROM/CRAM/EXT4/FAT/NFS various of file system

Source Code

DEVICE DRIVER

SERIAL

Serials driver

Source Code

RTC

Hardware RTC driver

Source Code

NET

10/100M/1000M Ethernet driver

Source Code

CAN

CAN bus driver

Source Code

SPI

SPI driver

Source Code

SPI FLASH

SPI Flash driver

Source Code

I2C

I2C driver

Source Code

LCD

MIPI-DSI driver

Source Code

TOUCH SCREEN

I2C Resistive touch panel driver

Source Code

MMC/SD

MMC/SD controller driver

Source Code

USB OTG

USB OTG driver

Source Code

AUDIO

Audio driver (supports audio recording and playback)

Source Code

AUDIO SPDIF

SPDIF interface, playback

Source Code

BUTTON

GPIO button driver

Source Code

LED

LED driver

Source Code

BUZZER

Buzzer driver

Source Code

WIFI

SDIO WIFI dongle driver

Source Code

ROOTFS

YOCTO

Weston with Qt & Opencv




WIKI Page:

http://wiki.emtop-tech.com/display/EMTOPHOMEPAGE/SOM-IMX8MM

UserManual:

SOM-IMX8M-MINI_Hardware_User_Manual

SBC-IMX8M_MINI_Software_User_Manual_EN

BSP Source:

① Open web browser (Firefox is recommended), input the following url:
https://47.107.111.205/svn/NXP/IMX8MMINI_DEMO
If the browser reports a warning like “Potential Security Risk Ahead “, please
choose the Advanced… option and “Accept the Risk and Continue”. Access Authorization:
User Name: guest
Password: guest

② Run svn command under Linux operating system, such as Debian and U
buntu:
svn co svn://47.107.111.205/NXP/IMX8MMINI_DEMO
Note: If the command not found, please install svn tools : apt-get update && apt-get install -y
subversion
The svn program will ask for access authorization:
User Name: guest
Password: gues

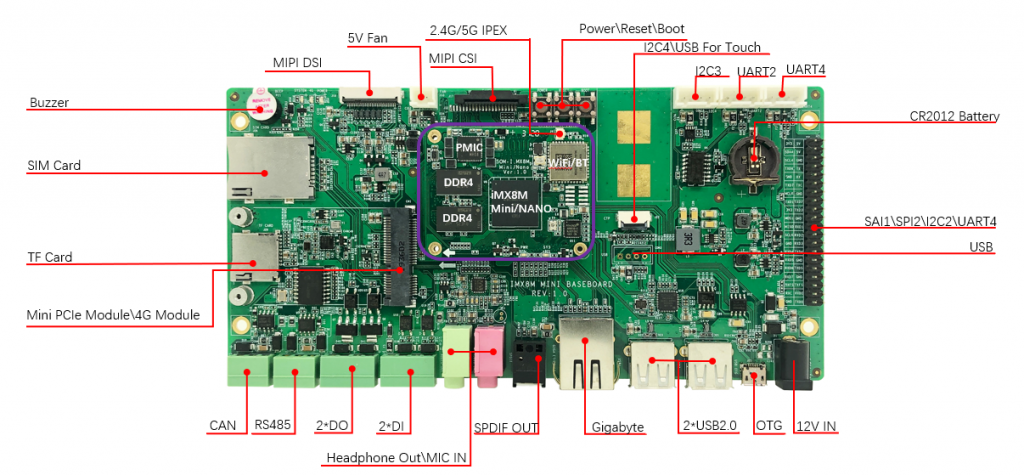

SOM-IMX8MM,NXP i.MX8M Mini System On Module

  • USB 0 Host x 2
  • USB OTG x 1
  • 12V Power IN x 1
  • Up to 77xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)
  • USB 2.0 Host (4 Pin Connector) x 1
  • UART:
    • UART2 (TTL, For Debug)
    • UART3 (TTL, For User)
    • UART4 (TTL, For User)
  • I2C x 3
  • USB Touch x 1
  • MIPI-CSI-2 x 1
  • Fan 5V port x 1
  • MIPI-DSI x 1
  • Buzzer x 1
  • SIM Card x 1
  • TF Card x 1
  • Mini PCIE Interface x 1, For 4G module and PCIE module
  • CAN Bus x 1
  • RS485 Bus x 1
  • Input Terminal x 2 PIN (With Isolation)
  • Output Terminal x 2 PIN (With Isolation)
  • Headphone Output/MIC In x 1
  • SPDIF Out x 1
  • 1x Gigabit Ethernet on-board

Packing List

  • Evaluations Basedboardx1;
  • System On Modulex1;
  • Ethernet Cablex1;
  • 5v Power Adapterx1;
  • Uart2USB Cablex1;
  • MIPI2HDMI Adapter Boardx1;
  • 7INCH-MIPI-LCDx1;(Options)

Part No. CPU Memory  Flash Memory SPI Flash WIFI/BT5.1 Operating
Temperature
MOQ
SOM-IMX8MM-216C i.MX8M Mini Quad 2GB DDR4 16GB EMMC 8MB NO 0-70°   1
SOM-IMX8MM-216I i.MX8M Mini Quad 2GB DDR4 16GB EMMC 8MB NO -45-85°  100
SOM-IMX8MM-216C-W i.MX8M Mini Quad 2GB DDR4 16GB EMMC 8MB Yes 0-70°  1
SOM-IMX8MM-216I-W i.MX8M Mini Quad 2GB DDR4 16GB EMMC 8MB Yes -45-85° 100
