Feature:

  • Quad-core ARM Cortex-A53,Plus Cortex-M4,Reserve Jtag;

  • On-board 2GB DDR4,16GB eMMC,64MB SPI FLASH;

  • On-board AzureWave AW-CM256SM WiFi / Bluetooth;

  • On-board Gigabit Ethernet PHY;

  • On-board ROHM Power Management IC (PMIC);

  • Yocto Linux, Debian Linux BSP with source code;

  • Based board SCH And PCB Design files (Allegro format);

  • Comes with user manual, ready-made system;

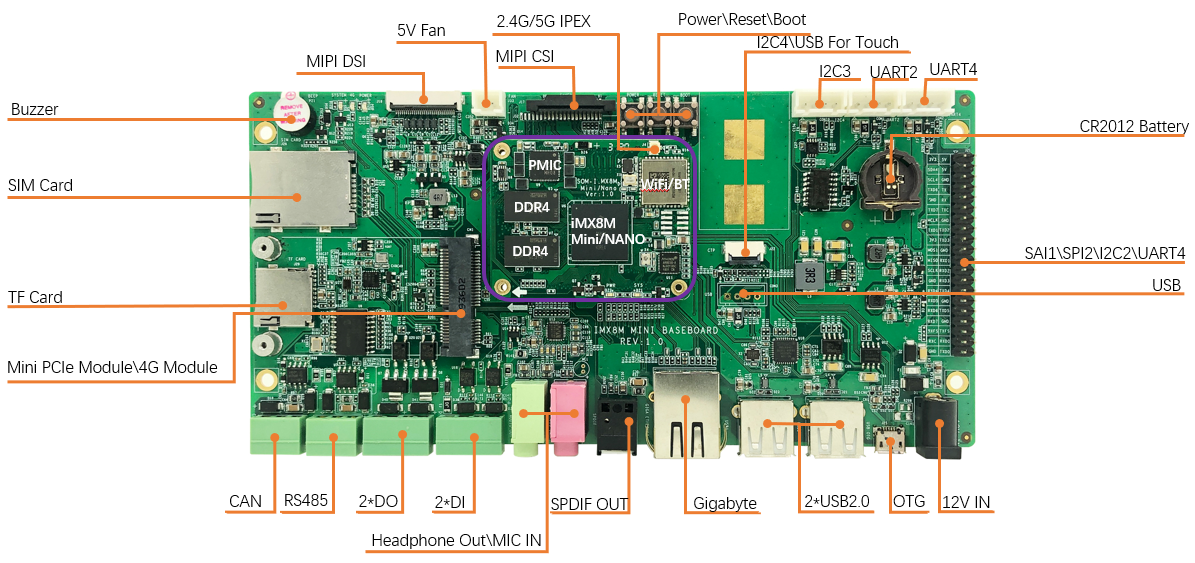

Interface:SBC-IMX8M,MIPI LCD,IMX8M-MINI,IMX8M-NANO

  • USB0 Host x 2

  • USB OTG x 1

  • 12V Power IN x 1

  • Up to 77xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)

  • USB 2.0 Host (4 Pin Connector) x 1

  • UART:

    • UART2  (TTL, For Debug)

    • UART3  (TTL, For User)

    • UART4  (TTL, For User)

  • I2C x 3

  • USB Touch x 1

  • MIPI-CSI-2 x 1

  • Fan 5V port x 1

  • MIPI-DSI x 1

  • Buzzer x 1

  • SIM Card x 1

  • TF Card x 1

  • Mini PCIE Interface x 1, For 4G module and PCIE module

  • CAN Bus x 1

  • RS485 Bus x 1

  • Input Terminal x 2 PIN (With Isolation)

  • Output Terminal x 2 PIN (With Isolation)

  • Headphone Output/MIC In x 1

  • SPDIF Out x 1

  • 1xGigabit Ethernet on-board

SYSTEM ON MODULE:

  • Size: 50x 40 x 3 mm

  • PCB Parameter:8 layer design,  lead-free soldering process

  • Weight: 12g

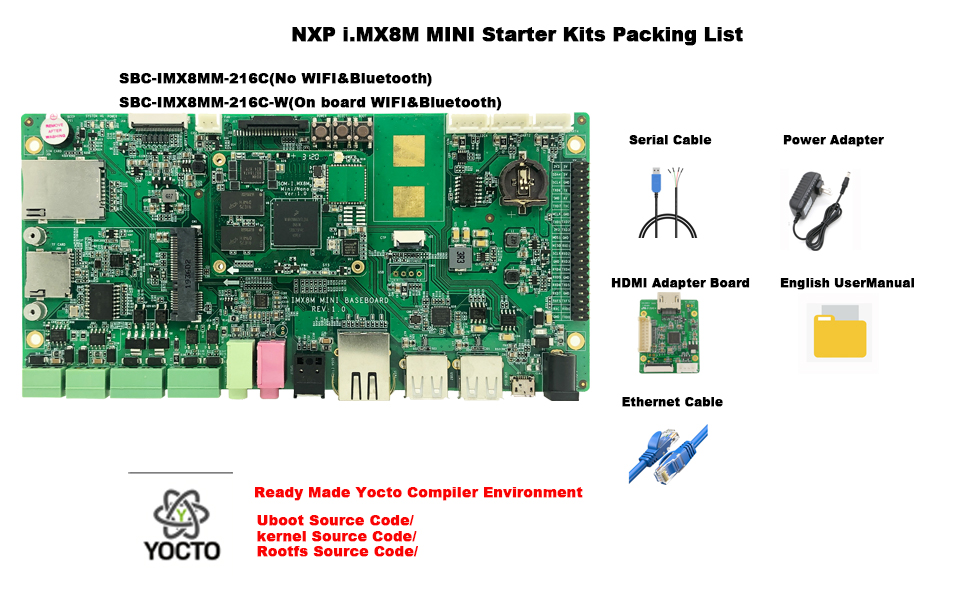

Packing List:

  • SOM-IMX8M-MINI Or SOM-IMX8M-NANO

  • Basedboard

  • Serial Cable

  • Ethernet Cable

  • Power Adapter

Options:

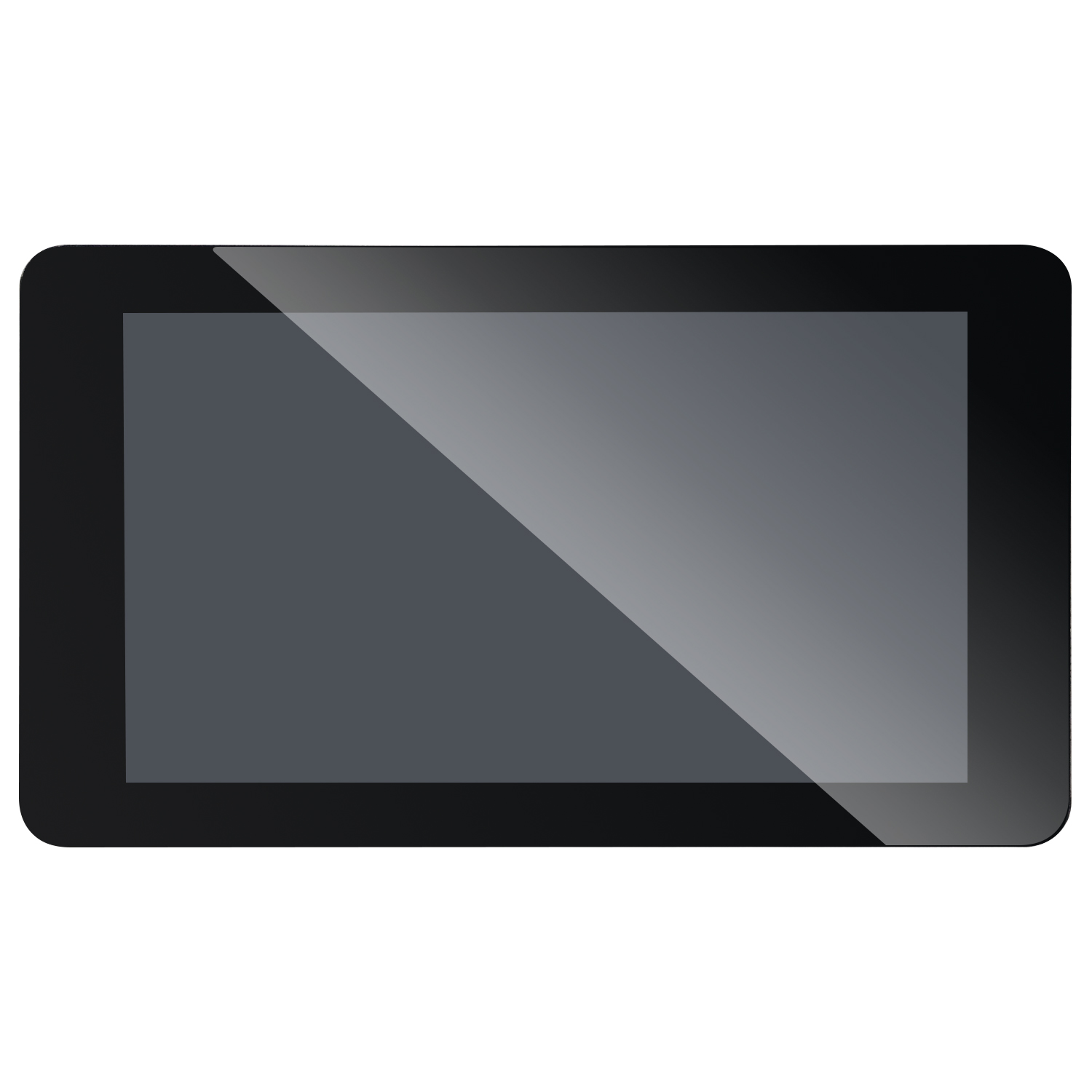

  • MIPI LCD



Options

SBC-IMX8M-MINI(NO LCD), SBC-IMX8M-NANO(NO LCD), SBC-IMX8M-MINI With MIPI-LCD-C, SBC-IMX8M-NANO With MIPI-LCD-C
