Description
The Receiver Simulator provides a variety of test modes for assessing transmitter performance. 15 watt max output.
Description

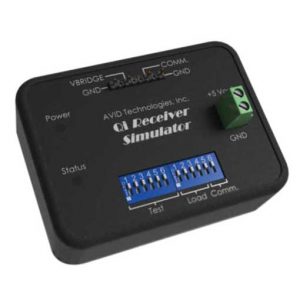

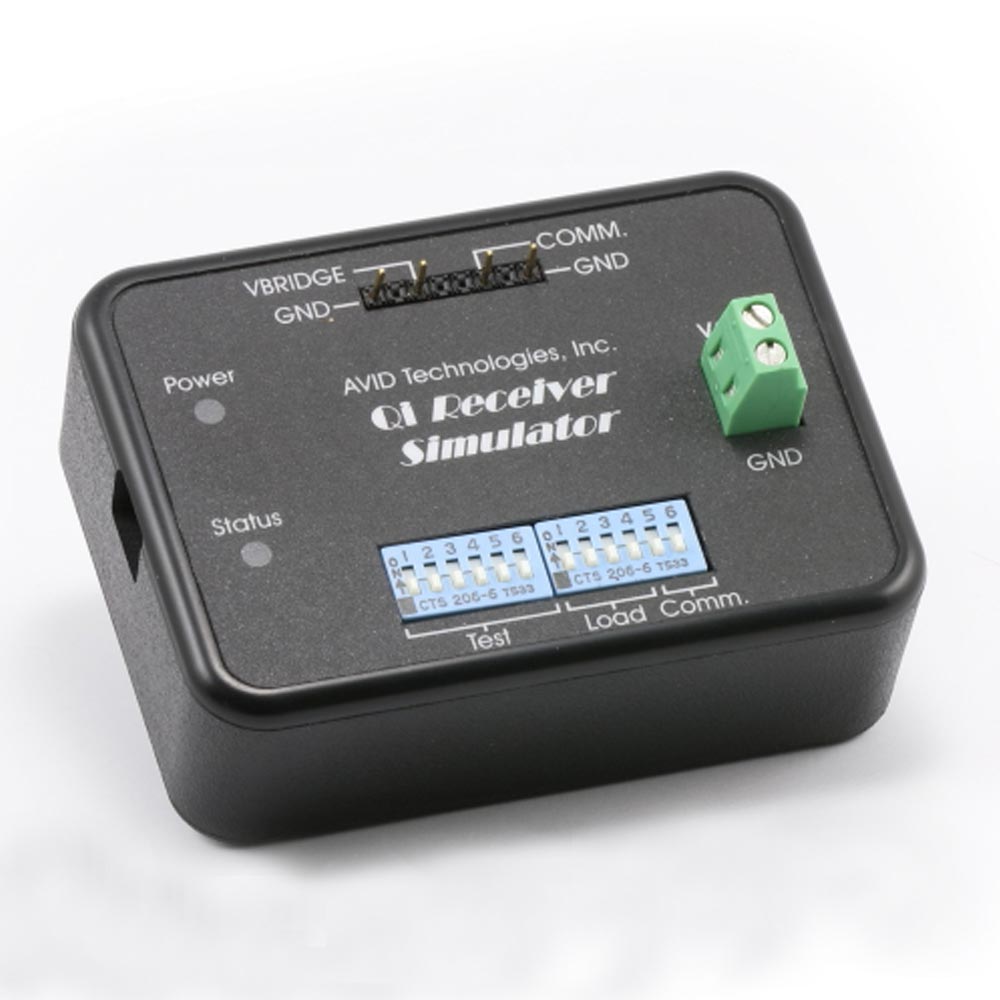

The Receiver Simulator provides a variety of test modes for assessing transmitter performance. It is useful for system debugging, product demonstrations, Qi pre-compliance testing, production testing, and as a general purpose Qi receiver.
-
Fully functional Qi medium power (15 Watt) receiver
-
Stand alone, easy to use device in rugged enclosure
-
Selectable comm. tests and modulators
-
LEDs for device status
-
Test points for bridge voltage and digital comm. data
-
Selectable internal loads up to 2.0W in 0.25W steps
-
Screw terminals for connecting external loads up to 5.0W
-
Factory calibrated to improve received power accuracy
-
Over reports received power by +200 mW (for FOD)
产品简介:
Qi Receiver Simulator v1.2最大输出功率为15W,为评估发射器的性能提供了多种测试方法,如系统debug,产品特征,Qi标准产前测试,生产测试以及其他多场景,都能得到良好使用。
技术特性:
l 全功能的Qi中度电力(15W)接收器
l 独立易用,能在凹凸不平的封装中使用
l 可选择通讯测试及调制器
l 显示仪器状态的LED
l 给电桥电压和电子通讯数据提供测试点
l 可选的内部负荷可达2.0W
l 连接外部负荷的螺丝接线终端可达5.0W
l 工厂校准,提高接受电力的精准度
l 高于标准接受电力+200 mW(FOD)
