Description
1 Overview

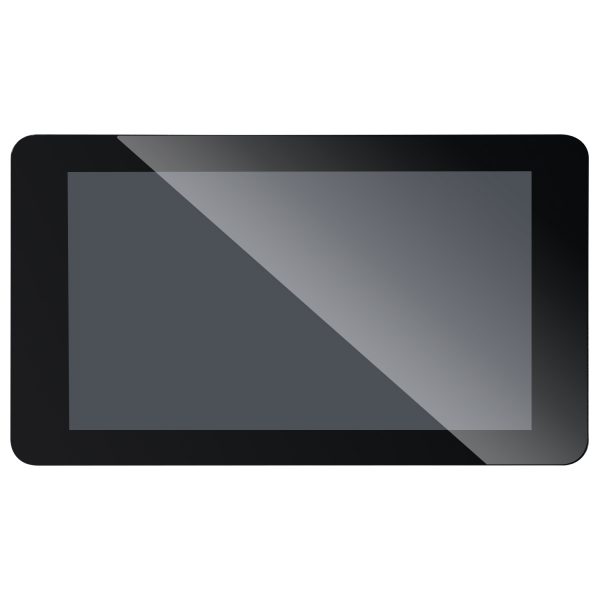

- This LCD-MIPI7C with capacitive touch display enables user to prototype end applications such as tablets, infotainment systems and embedded projects.
- This display is compatible with NXP i.MX8M MINI And NXP i.MX8M Plus Series.
- The display’s active area is 21mmx 85.92mm featuring a resolution of 1024 x 600
2 Specification
| Resolution |
1024×600 |
| Touch IC |
GT911 |
| LCD Type |
TFT |
| Display color |
16.7M |
| Viewing Direction |
6 |
| Operating temperature |
-30°-+80° |
| ActiveArea(W×H) |
154.21×85.92mm |
| Number of Dots |
1024×RGB×600 |
| Backlight |
21pcs |
| Data Transfer |
MIPI |
3 Support Boards
SBC-IMX8MM-LPD4
SBC-IMX8MP,4GB LPDDR4 32GB EMMC,NPU
