Description
Overview
CAM-MIPI5640 is for NXP i.MX8M Mini And NXP i.MX8M Plus with M12 LEN, F/N 3.6mm,FOV96.
Support RAW YUV422 Output format with resolution 1280*960
Specification
| Interface | MIPI |
| Resolution | 5MP |
| Sensor | OV5640 |
| Sensor Size | 1/4Inch |
| LEN | l 5MP/M12,
l F/N3.6mm, l FOV:80-96 |
| Output format | RAW RGB,RGB565/555/444,CCIR656,YUV422/420YCbCr422 |
| Output Video | QSXGA(2592X1944),1080p,1280×960,VGA(640X480),QVGA(320X240) |
| WorkingTemp | -30-70Degree |
| Product Size | 35x24x28mm |

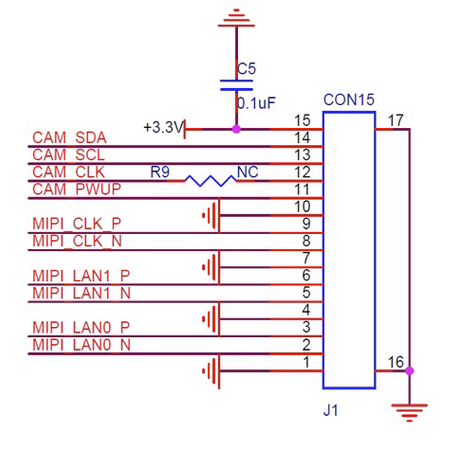

Pins Out
