CM4-BoxComputer

CM4-BoxComputer

CPU: Broadcom BCM2711 4 and Cortex A72 1.5GHz (ARM v8) 64-bit CPU
DDR: 1GB/2GB/4GB/8GB LPDDR4
EMMC: 0GB/8GB/16GB/32GB
  • Hardware Description
  • Processor Unit And Interface
  • Wiki Page
  • Ordering And Pricing

Specification:

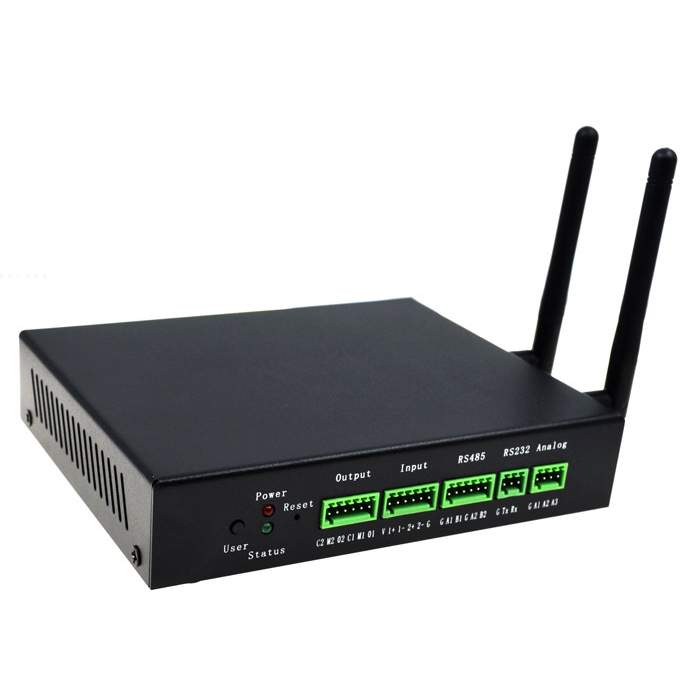

  • CM4-BOX-Computer REV1.0 is an industrial embedded computer based on Raspberry Pi Compute Module 4.
  • The system can be configured by 1GB/2GB/4GB/8GB RAM and 8GB/16GB/32GB EMMC according to different applications, supporting SD card startup.
  • It provides a variety of industrial communication interfaces and functions, such as RS232, RS485, high-precision ADC, isolated IO input, relay control, real-time clock of battery backup and alarm buzzer.
  • Besides, 1x Ethernet interface with POE function, 1x 10/100M port, 4G/LTE module, external antenna support, certified 2.4/5.8G dual-band WIFI and Bluetooth are also provided.
  • Moreover, CM4-BOX-Computer supports official 1x 8-megapixel camera, 1x DSI display port and 1x HDMI cable port.
  • Other features of CM4-BOX-Computer are also worth mentioning, for example, onboard 32Mb serial Flash is used to store system data, power supply is available in a wide range of 12~18V, and ESD protection is provided for all important interfaces.
  • The users can add more functions on the board through PCI-e 1x Gen2 interface, the standard 40 pins connector, 2x 4-pin USB interface for internal expansion, 1x TTL electric level RS232 interface, etc. to fully utilize its powerful communication capability to satisfy all kinds of requirement in CM4 Industrial.



CM4-BoxComputer

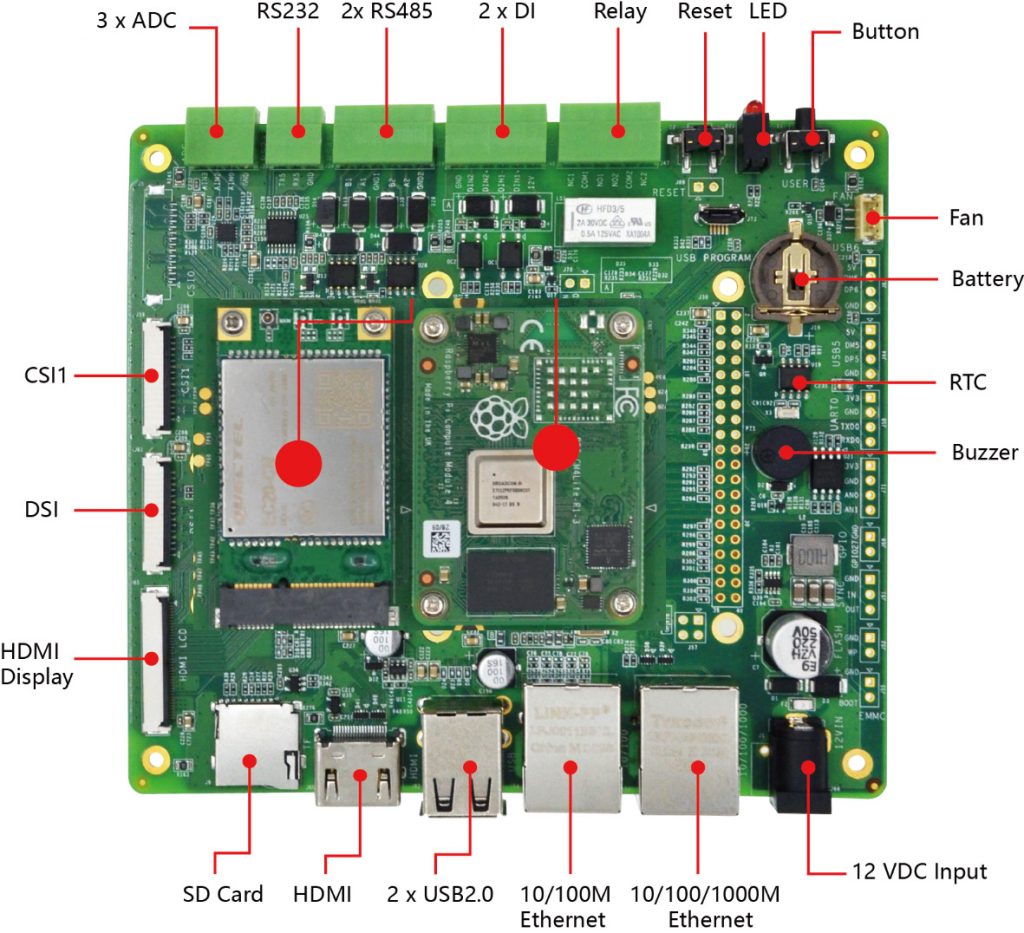

1.1 Processing Unit:

  • Broadcom BCM2711 4XCortex A72@5GHz (ARM v8) 64-bit CPU
  • Supports H.265 (HEVC) (up to 4Kp60 decoding) and H.264 (up to 1080p60 decoding, 1080p30 encoding)
  • OpenGL ES 3.0 graphics
  • Storage 1GB/2GB/4GB/8GB LPDDR4-3200 SDRAM (optional)
  • Lite 0GB/8GB/16GB/32GB eMMC(optional)

1.2 Industrial control interface and functions:

  • l2 x RS485
  • l1 x RS232
  • l1 x RS232(TTL)
  • l3 x 12 bits ADC
  • l2 x isolated IO
  • l1 x non-isolated IO
  • l1 x SPDT Relay
  • l1 x adjustable speed fan control
  • l1 x RTC with backup battery
  • l1 x LED for power indication
  • l1 x LED for system working status indication
  • l1 x system reset button
  • l1 x user custom button
  • l1 x buzzer

1.3 Camera and Display:

  • l1 x CSI supports the standard official Raspberry Pi 5M&8M camera module
  • l1 x HDMI
  • l1 x DSI supports Raspberry Pi official display
  • l1 x FPC wired HDMI supports capacitive touch and resistive touch display

1.4 Connectivity:

  • l1 x 10/100M/1000 Ethernet (with official PoE HAT) supports POE power supply
  • l1 x 10/100M Ethernet
  • l2 x USB2.0
  • l1 x Micro USB Slave（system programming）

1.5 Wireless:

  • 1 x 2.4G/5.8G WiFi compatible with IEEE 802.11 b/g/n/ac Standard
  • 1 x Bluetooth 5.0 BLE
  • WiFi/BLE external antenna and PCB antenna (optional)
  • Supports 4G /LTE Module (optional)

1.6 Storage:

  • 1 x microSD card slot
  • On Board 32Mb serial Flash

1.7 Expansion Interface:

  • PCIe 1x Gen2 Mini-PCIe interface
  • 2 x USB 4pins DIP connector
  • 1 x RS232 4pins DIP connector
  • 1 x Raspberry Pi Standard 40pins connector

1.8 Power Supply:

  • 12~18V DC voltage range input, Phenix terminal connector (optional)

1.9 Dimensions:

  • 130 mm(L) x 115 mm(W) x 20mm(H)
