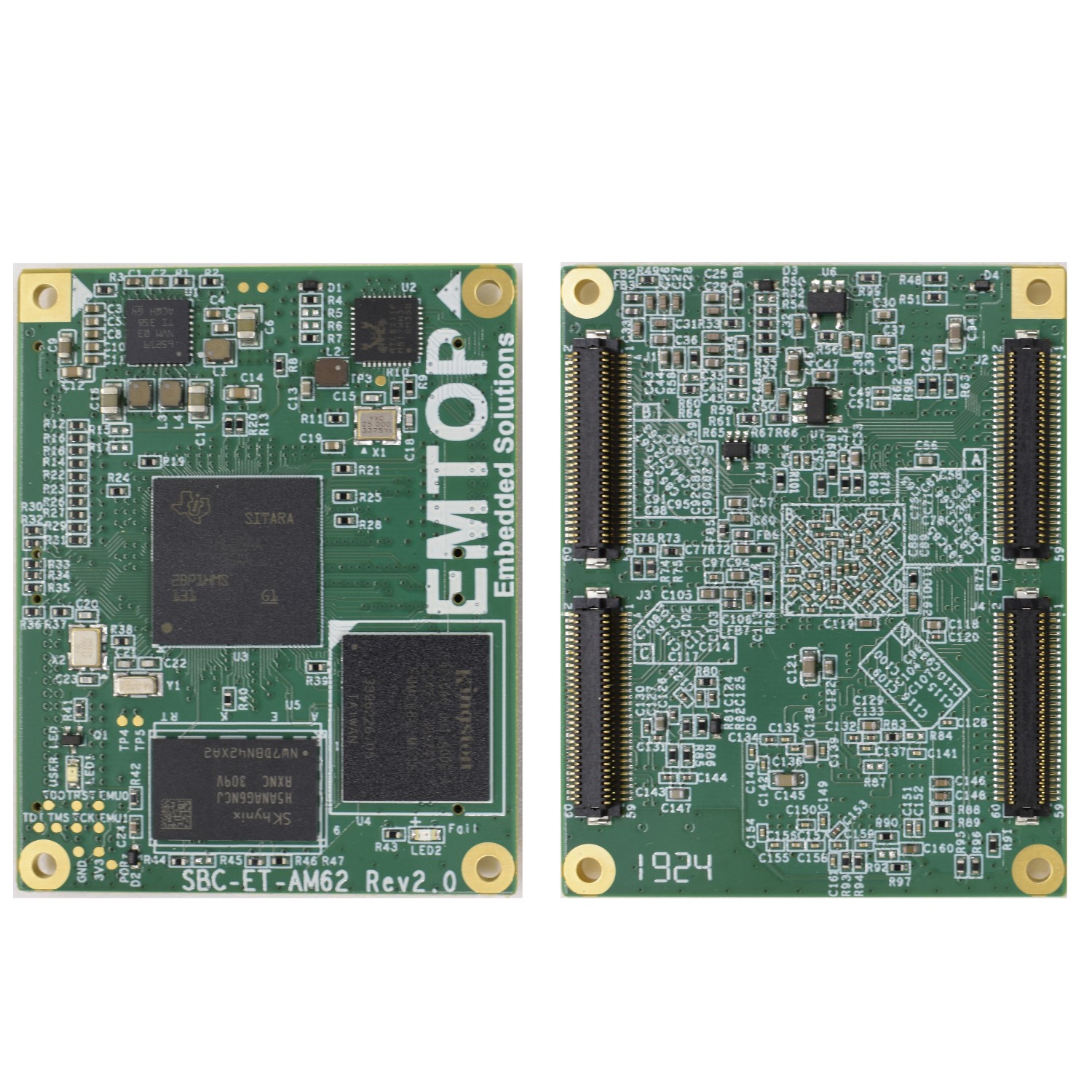

Default Item: SOM-ET-AM62-D2M80-C

HW Features:

• SoC: TI AM6254
  • 4x ARM Cortex-A53@1.4GHz
  • 1XARM Cortec-M4F up to 400MHz
  • 3D Graphics Processing Unit
• Memory: Support DDR4  1~4  GB
• Flash:     Support EMMC 8~64 GB
• I/O connectivity: 1x 8bit MMC,1x 4bit MMC,1x MCASP,1x GPMC,1x MAC,1x GBE,2x USB OTG,2x SPI,3x CAN FD,6x UART
• Display
  • 1x 16bits RGB LCD
  • 1x Dual Channel LVDS 1920(H)x1200(V) (Or 2x Single Channel LVDS 800×600)
• Camera
  • 1x2lane MIPI CSI

SW Features:

• Debian13 OS
  • Uboot/Kernel/Filesystem Source Code/OS Image/User Manual
• Yocto Linux 6.1.33
  • Uboot/Kernel/Filesystem Source Code/OS Image/User Manual

Github:

• https://github.com/EMTOP-TECH/SOM-ET-AM62X
