Mini is a single board computer based on NXP IMX8M Mini SOC series
designed by Avnet Manufacturing Services , which can be used in medical
instruments, video surveillance, communications, IOT, makers and so on.


Mini has a compact size with rich peripheral interfaces, including
Gigabit Ethernet interface, USB 2.0 host interface, MIPI-DSI interface,
MIPI-CSI interface, Micro SD Card interface, UART interface, GPIO
interface, Wi-Fi/Bluetooth interface, etc.

MaaXBoard Mini - NXP i.MX 8M Mini SBC

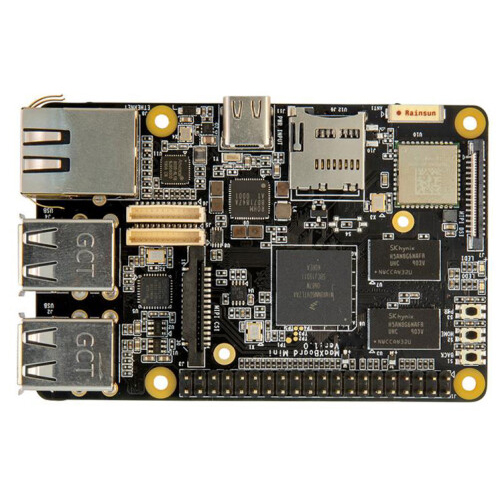

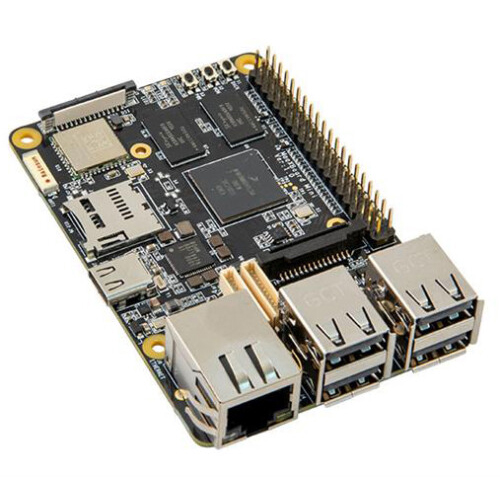

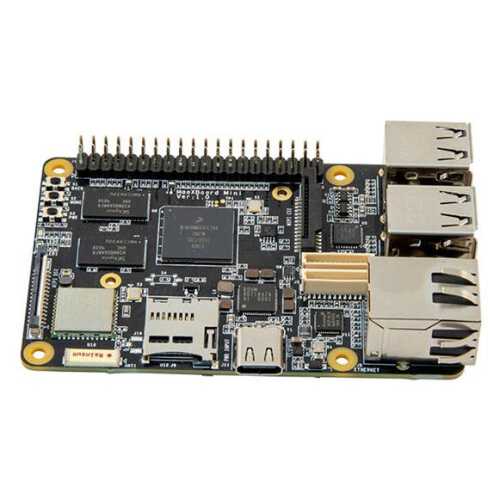

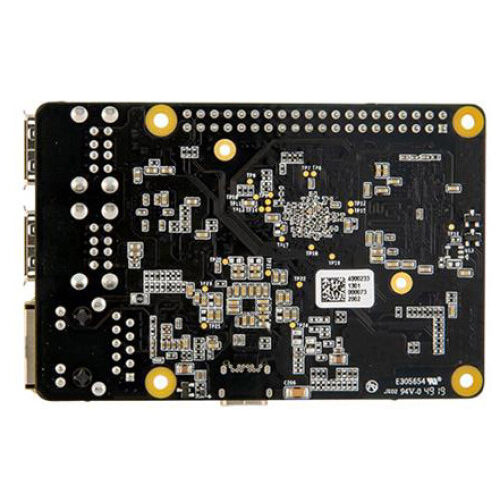

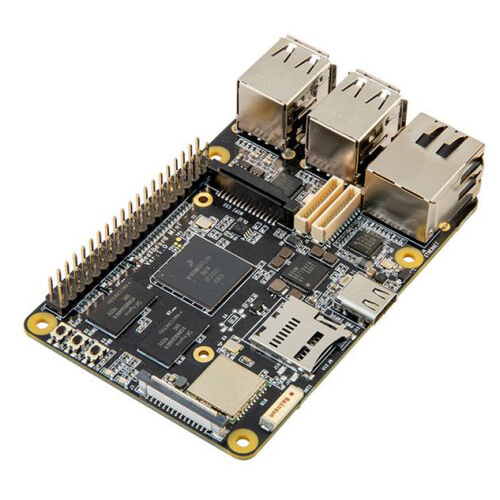

MaaXBoard Mini Top and Bottom View



Mini is designed on the NXP’s first embedded multicore applications
processor which is built using advanced 14LPC FinFET process technology,
providing more speed and improved power efficiency. With commercial and
industrial level qualification and backed by NXP’s product longevity
program, the MaaXBoard Mini SBC may be used in any general purpose
industrial and IoT application.


MaaXBoard Mini Processoer i.MX 8M Mini Block Diagram

MaaXBoard Mini - NXP i.MX 8M Mini SBC

CPU Multicore Processing:

  • 4x Cortex-A53 core platforms up to 1.8GHz per core
  • 32KB L1-I Cache/ 32 kB L1-D Cache
  • 512 kB L2 Cache
  • 1x Cortex-M4 core up to 400MHz
  • 16 kB L1-I Cache/ 16 kB L2-D Cache


  • 3D GPU (1x shader, OpenGL® ES 2.0)
  • 2D GPU

Communication Interface:

  • 1 × 40 Pin IO Interface (Expand I2C, SPI, UART, I2S Interface)
  • 1 × MIPI-CSI Camera Interface
  • 1 × MIPI-DSI Display Interface
  • 1 ×Gigabit Ethernet interface (RJ45)
  • 4 × USB2.0 Host
  • 1 × Micro SD Card (TF Card) Interface
  • 1 × 8bits and 1x 7bits GPIO Interface (Support Audio peripheral expand)
  • 1 × Power Interface (USB Type C Connector)
  • 1 × Power Button
  • 2 × User Button
  • 1 × Wi-Fi/Bluetooth
  • 2 × User LED



MaaXBoard Mini interface diagram

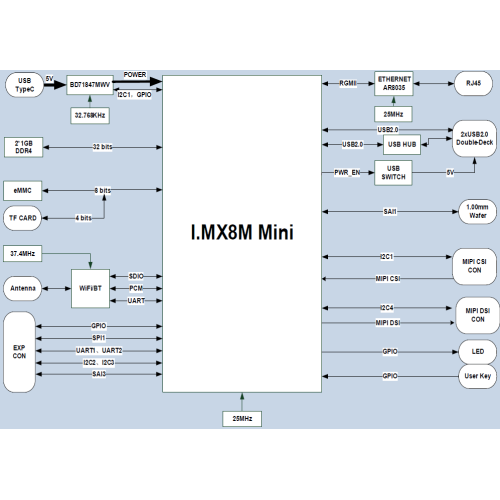

MaaXBoard Mini System Block Diagram


 General Specifications:

Operating Temperature: 0~70°C (When the CPU loads heavy, need a heatsink)

Power Supply: 5V/3A (Power Adapter)

Operating Humidity: 20% ~ 90% (non-condensing)

Dimensions: 85mm × 55mm

PCB Layers:8Layers

Kits Includes:

1 ×MaaXBoard Mini SBC

1 × Desiccant

1 × Anti-static Bag

1 × Safety Flyer

1 × Quick Start Guide

1 × Box


We offer
the industry leading OS software development and aim to help customers
get start quickly and develop prodcut efficiently, we have more than 19
year’s experiences on designing Arm based hardware and OS development,
and we are able to optimize our software and provide customers the safe
and stable operating system available.


MaaXBoard Mini supports OS include:

1. Android 9.0

2. Yocto:

– U-Boot version: 2018.03

– Kernel version: 4.14.78

– image: Yocto sumo 2.5

– Qt 5.10.1 Library or later

– Customized UI
